Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 50mm - effective area = 9,6cm^2 - oil capacity = 0,036 L - height of product = 133mm - extended height = 183mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 100mm - effective area = 9,6cm^2 - oil capacity = 0,071 L - height of product = 183mm - extended height = 283mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar

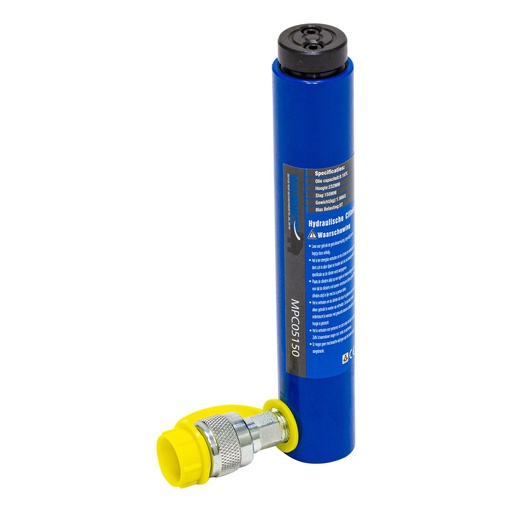

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 5 ton - stroke = 150mm - effective area = 9,6cm^2 - oil capacity = 0,108 L - height of product = 233mm - extended height = 382mm - outside diameter = 40mm - bore diameter = 30mm - plunger diameter = 25mm - thread for input oil port (ZG) = 1/4" - 18 - saddle protrusion form plgr = 13mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 10 ton - stroke = 50mm - effective area = 15,2cm^2 - oil capacity = 0,075 L - height of product = 106mm - extended height = 156mm - outside diameter = 73mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 16,3 - max. pressure = 700bar

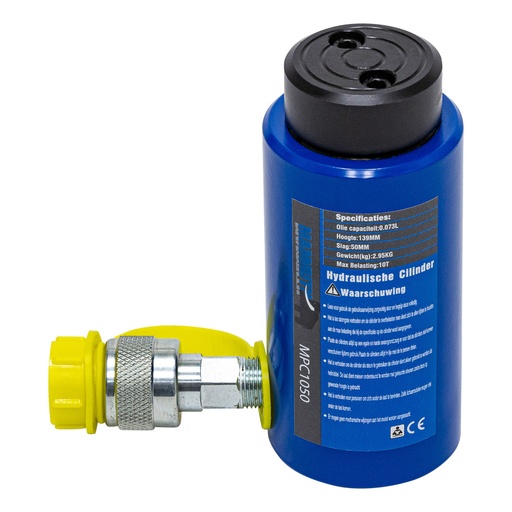

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
output = 10 ton
stroke = 50mm
effective area = 15,2cm^2
oil capacity = 0,075 L
height of product = 139mm
extended height = 189mm
outside diameter = 62mm
bore diameter = 44mm
plunger diameter = 38mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 21mm
saddle is removable
max. pressure = 700bar
stroke = 100mm
oil capacity = 0,152 L
height of product = 191mm
extended height = 289mm

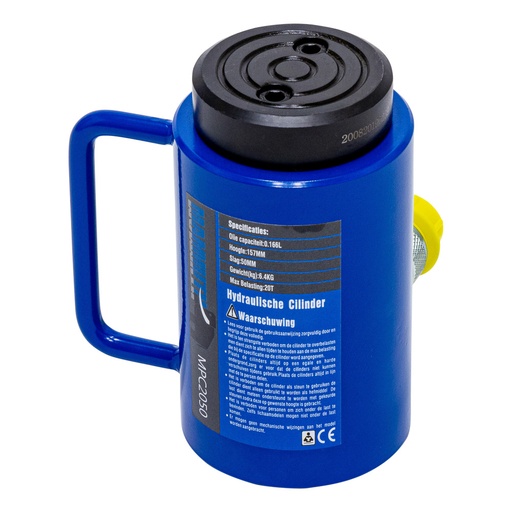

output = 20 ton
effective area = 26,4cm^2
oil capacity = 0,140 L
height of product = 157mm
extended height = 207mm
outside diameter = 88mm
bore diameter = 65mm
plunger diameter = 58mm
thread for input oil port (ZG) = 3/8" - 19
saddle protrusion form plgr = 20mm
Hydraulikzylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 200 ton - stroke = 50mm - effective area = 22cm^2 - oil capacity = 0,14 L - height of product = 98mm - extended height = 148mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 53mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 30 ton - stroke = 50mm - effective area = 31,1cm^2 - oil capacity = 0,22 L - height of product = 104mm - extended height = 154mm - outside diameter = 105mm - bore diameter = 75mm - plunger diameter = 86mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 10 ton - stroke = 150mm - effective area = 15,2cm^2 - oil capacity = 0,228 L - height of product = 241mm - extended height = 389mm - outside diameter = 62mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 20 ton - stroke = 100mm - effective area = 33,2cm^2 - oil capacity = 0,332 L - height of product = 207mm - extended height = 307mm - outside diameter = 88mm - bore diameter = 65mm - plunger diameter = 55mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 50mm - effective area = 44,2cm^2 - oil capacity = 0,221 L - height of product = 157mm - extended height = 207mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar

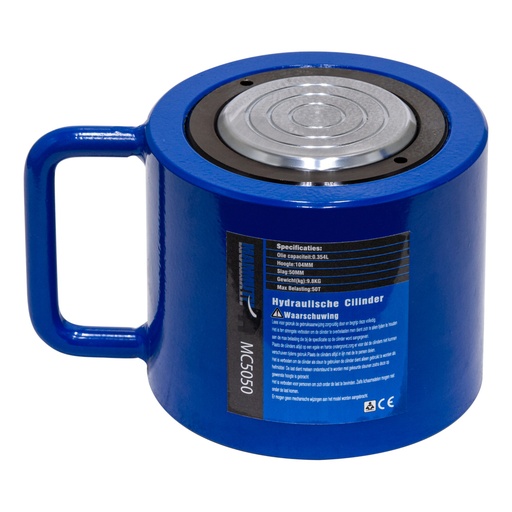

Hydraulikzylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically.
output = 50 ton
effective area = 56,7cm^2
oil capacity = 0,354 L
height of product = 104mm
extended height = 154mm
outside diameter = 128mm
bore diameter = 95mm
plunger diameter = 65mm
saddle protrusion form plgr = 2mm
output = 30 ton
effective area = 44,2cm^2
oil capacity = 0,442 L
height of product = 209mm
extended height = 307mm
outside diameter = 107mm
bore diameter = 75mm
thread for input oil port (ZG) = 3/8" - 23
saddle protrusion form plgr = 22mm
stroke = 150mm
effective area = 33,2cm^2
oil capacity = 0,498 L
height of product = 254mm
extended height = 407mm
plunger diameter = 55mm
effective area = 70,9cm^2
oil capacity = 0,355 L
height of product = 162mm
extended height = 213mm
plunger diameter = 85mm
thread for input oil port (ZG) = 3/8" - 24
saddle protrusion form plgr = 26mm
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 150mm - effective area = 44,2cm^2 - oil capacity = 0,663 L - height of product = 256mm - extended height = 407mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar
oil capacity = 0,709 L
height of product = 212mm
extended height = 313mm
Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 30 ton - stroke = 200mm - effective area = 44,2cm^2 - oil capacity = 0,884 L - height of product = 308mm - extended height = 507mm - outside diameter = 107mm - bore diameter = 75mm - plunger diameter = 65mm - thread for input oil port (ZG) = 3/8" - 23 - saddle protrusion form plgr = 22mm - saddle is removable - max. pressure = 700bar
oil capacity = 1,063 L
height of product = 262mm
extended height = 413mm
