Band saw machine / Metal band saw / Metal cutting bandsaw / Band saw / European type horizontal bandsaw

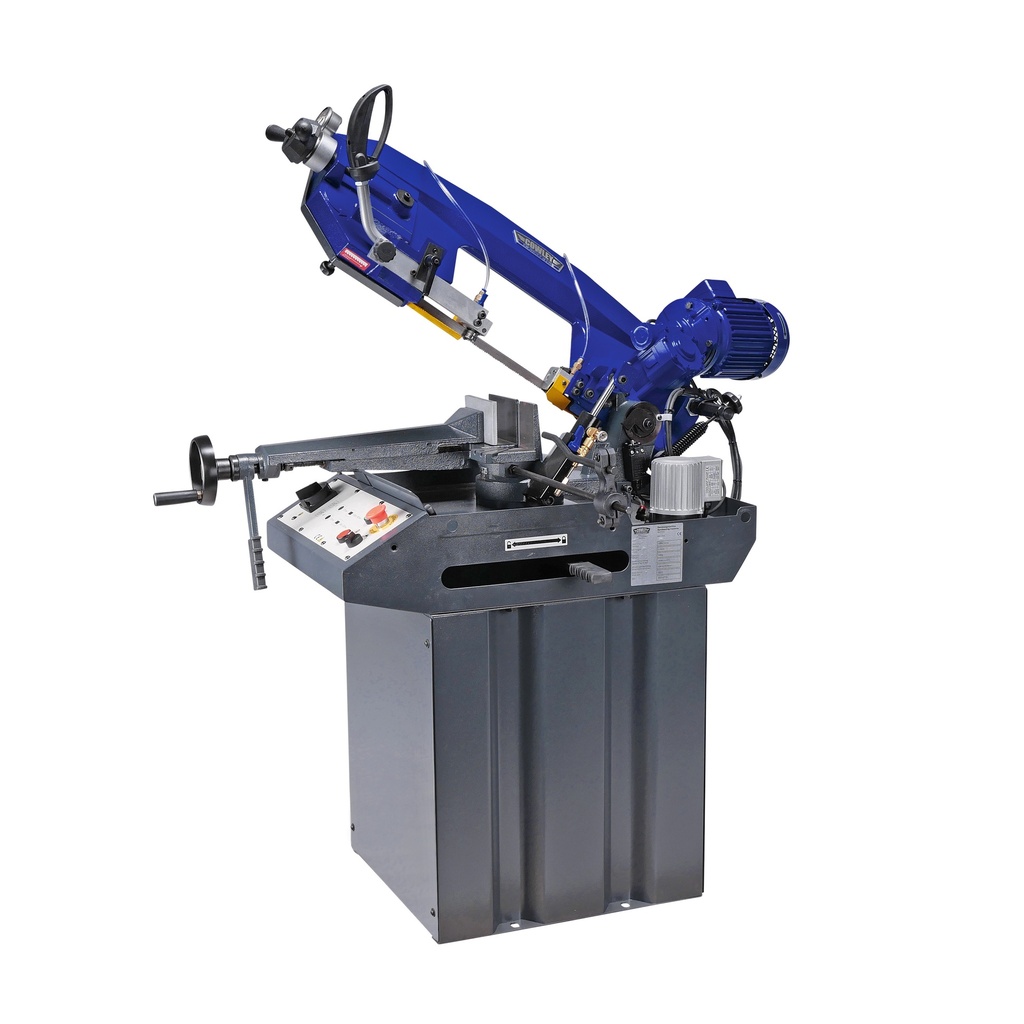

Band saw machine from Cowley has a solid metal base, with an integrated control panel in the frontside of the frame.
The user-friendly low-voltage control panel including emergency switch, makes it very easy and safe to operate. Additionally it has an adjustable automatic hydraulic feed which makes it possible to set and adjust the lowering feed speed and make controlled cuts automatically.
Thanks to the adjustable quintuple bearing saw blade guidance it has a high cutting precision, and the low speed of the motor ensures a longer life.
Euro type horizontal bandsaw is adjustable in cutting angle and has a high sawing precision.
The machine has 2 fixed cutting speeds 40 or 80 m/min.
Cast iron body provides a high stability and less vibration during cutting. Using the handwheel, the saw blade is hydraulically tightened and the tightening force can be read on the pressure gauge. This professional Band saw machine is recommended for working with metals. This low-noise model is suitable for sawing pipes and profiles of alu, steel and stainless steel.
The band saw is equipped with a built-in flow-controlled cooling system with coolant and electric pump, due to this the cooling of the saw blade ensures a long working cycle and cutting precision.
Band saw equipped with an adjustable material clamp with dual lock quick system.
Сutting angle level lock is integrated into the cabinet. The band saw has an adjustable cutting angle from 0° - 45° and is equipped with an adjustable material stop for fast and correct cutting.
Electric motor with reducer and ISO certified, electrical installations in accordance with CE standards.
This model comes with a small set of maintenance tools.
Features:
- User-friendly control panel on the front
- Automatic / hydraulic down feed with saw blade system
- Adjustable 5 bearing sawblade guidance
- Emergency stop
- Quick clamping system
- Bi-metal saw blade
- Cast iron machine clamp
- Saw blade pressure gauge
- Maintenance-free bearings
- Built-in cooling pump
- Adjustable material stop
- Adjustable cutting angle 0° - 45°
Technical specifications:
- Voltage = 400V/ 50Hz 3-phase
- Power = 0.75kW
- Band saw speed = 40 - / 80 m/min
- Working table height = 870mm
- Blade Speeds = 2
- Weight =146 kg
Blade dimensions:
- Band saw length = 2080mm
- Band saw width = 20mm
- Band saw thickness = 0.9mm
Adjustable cutting angle 0° to 45° using a quick locking handle, and an automatic turn-off system.
Cutting capacity:
- 0 ° round 170 mm
- 0 ° rectangular 150 × 190 mm
- 45 ° round 125 mm
- 45 ° rectangular 95 x 120 mm
| Product Dimensions: | |
|---|---|
| Product Length | 1,270 mm |
| Product Width | 510 mm |
| Product Height | 1,540 mm |
| Product Weight | 150.0 Kg |
| Package Dimensions: | |
| Package Length | 1,295 mm |
| Package Width | 565 mm |
| Package Height | 875 mm |
| Package Weight | 163.00 Kg |
