bandsaw

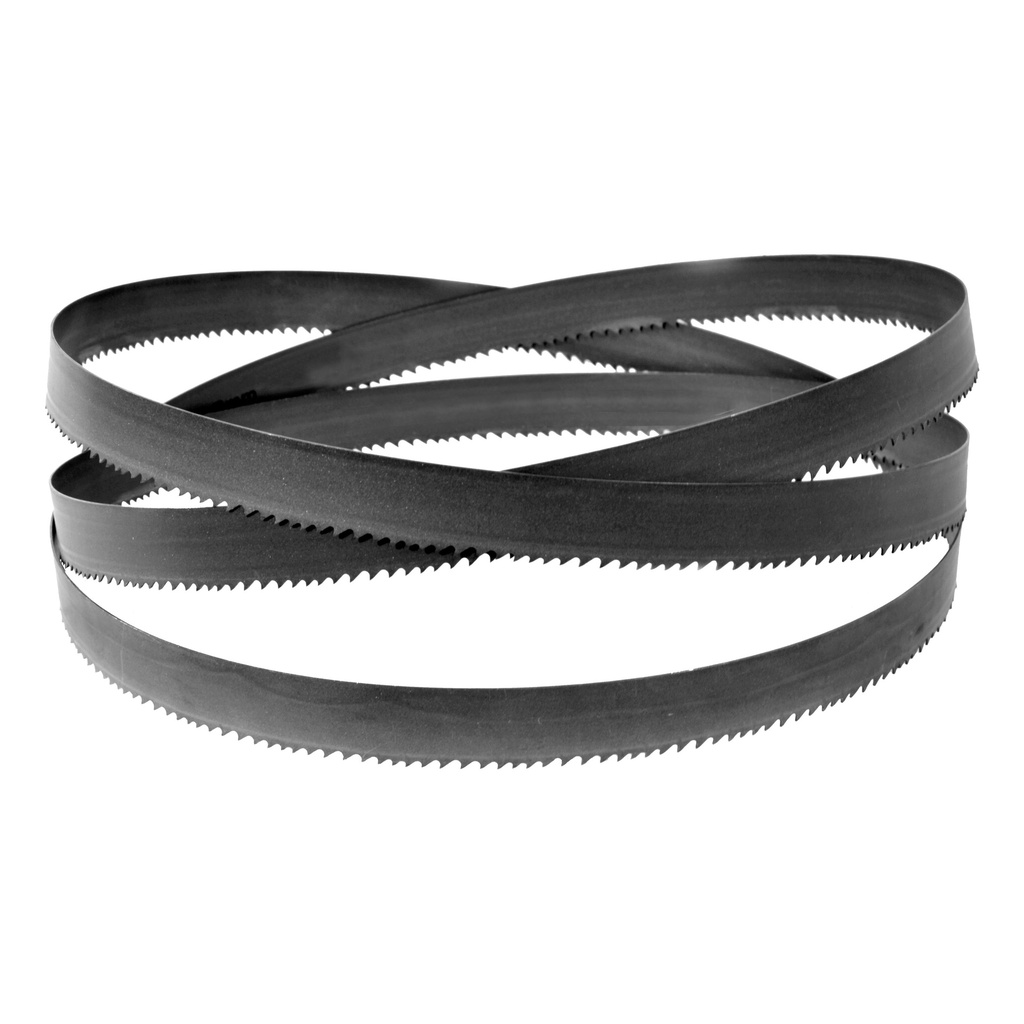

This bimetallic band saw from Cowley consists of an alloyed refined steel strip on which a strip of high-alloy HSS cobalt-molybdenum steel is welded by using electrodes.
Here, the teeth are machined, after which the saw is hardened to 67 - 69 HRC.
The band saw is used in ferrous and non-ferrous materials, each bimetal quality has its own specific application.
M42 bimetal band saw:
Due to the high hardness of the edges, 67 - 69 HRC, longer service life can be achieved and higher cutting speeds can be used. Among others used for stainless steel and materials with a tensile strength up to 1400 N /mm².
Technical specifications:
- Width x thickness = 13 x 0.95mm
- 5/18 M42
| Product Dimensions: | |
|---|---|
| Product Length | 1,440 mm |
| Product Width | 1 mm |
| Product Height | 13 mm |
| Product Weight | 0.113 Kg |
| Package Dimensions: | |
| Package Length | 545 mm |
| Package Width | 565 mm |
| Package Height | 90 mm |
| Package Weight | 1.56 Kg |
