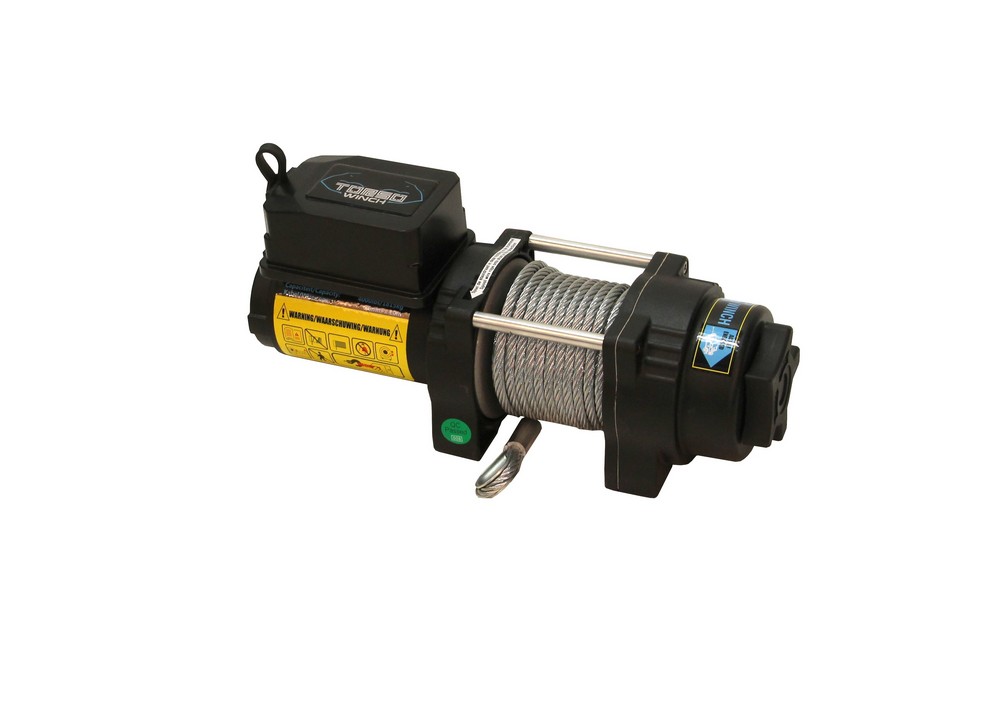

Electric winch 12V 4000lbs

4x4 / Winches / Car winches / Electric winches 12V Brand: Torso Torso

Product Code: CW04V12

EAN: 8720028081745

Availability: Available

€ 199.65 Incl. VAT https://schema.org/InStock 199.65 EUR € 199.65

€ 165.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Car winch / bumperwinch

    Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
    The winches are suitable for any application within the pulling range and its capacitance.

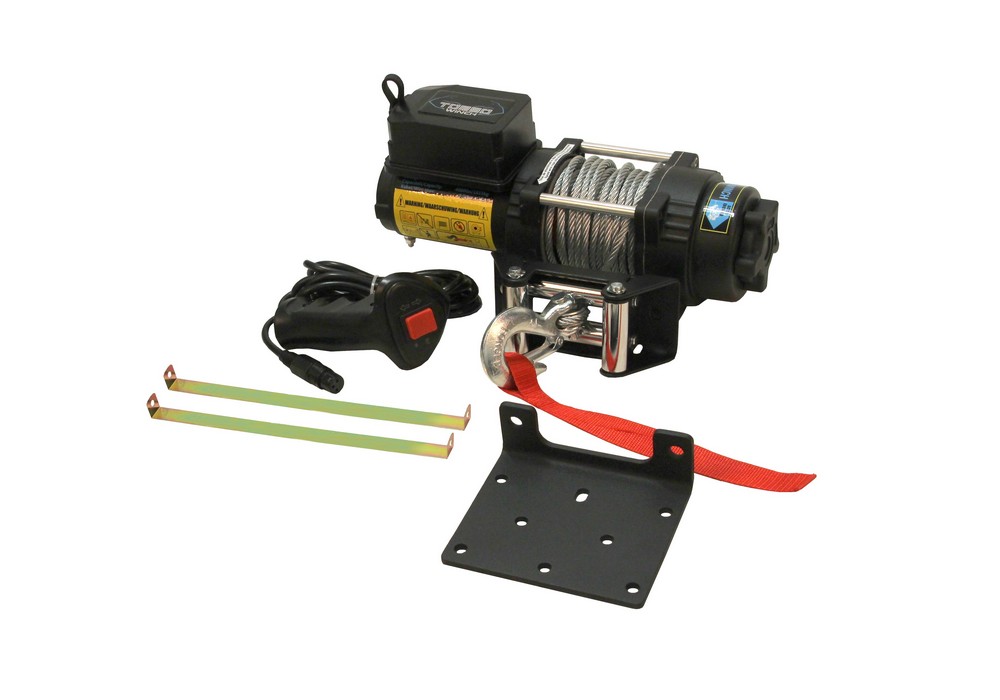

    Torso winches are standard equiped with the following features:
    - 4way fair load roller, for excellent cable mobility.

    mounting plate, ensures correct mounting of the winch.

    - control switch, with 3mtrs cable length.
    - clevis pinned/latched hook.
    - 1.5mtr battery conection cable .
    - hand operated clutch for free spooling.
    - automatic brake.
    - 1.5t pulley block.

    Wireless remote optional.

    The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.

    Technical specifications:
    - 12V single line
    - rated pull = 4000lbs (1800kg)
    - gear reduction ratio = 198:1
    - Serie-wound motor = 12V 1.6HP
    - drum size = 50x76,5mm
    - cable length = 10m
    - cable diameter = 6mm
    - line pull = 0kg, 454kg, 907kg, 1800kg
    - line speed = 4.9mpm, 3.2mpm, 2.8mpm, 1.5mpm
    - amp draw = 17A, 70A, 105A, 180A
    - layer of cable = 1, 2, 3, 4
    - pull per layer = 1800kg, 1460kg, 1225kg, 1055kg
    - cap per layer = 2m, 4.3m, 7.2m, 10m
    - mounting dimensions heart to heart = 125 x 75mm

    Product Dimensions:
    Product Length 334 mm
    Product Width 114 mm
    Product Height 120 mm
    Product Weight 11.0 Kg
    Package Dimensions:
    Package Length 415 mm
    Package Width 260 mm
    Package Height 235 mm
    Package Weight 13.00 Kg
