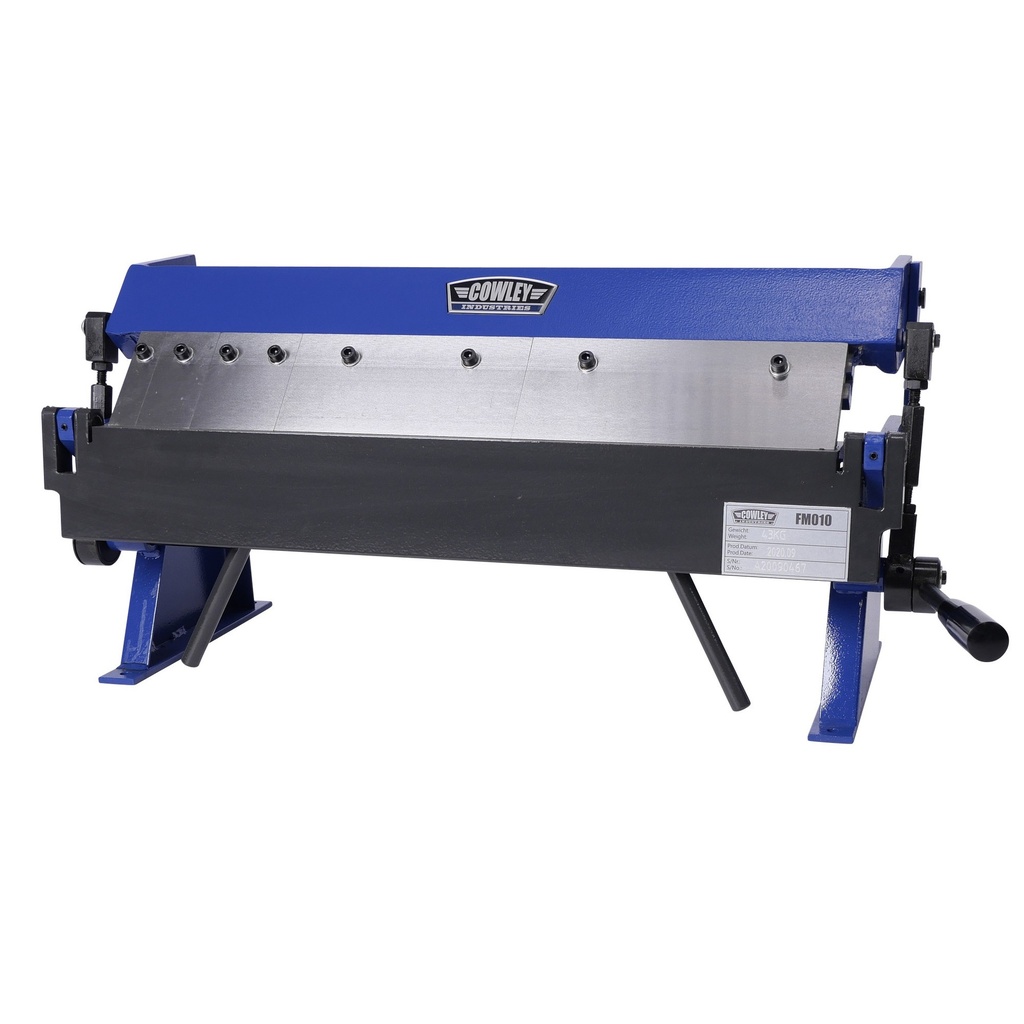

Pan and box brake 610mm 1.0mm

Wood and Metal working / Metal working machinery / Pan & box brake Brand: Cowley Cowley

Product Code: FM010

EAN: 8720028044894

Availability: Available

€ 344.85 Incl. VAT https://schema.org/InStock 344.85 EUR € 344.85

€ 285.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Pan and box brake / segment bending machine

    This Cowley pan and box brake is suitable for folding smaller materials. Many different sizes are possible using the adjustable segments. This table model is compact and therefore very accessible.

    Technical specifications:

    • max. working width = 610mm

    • max. thickness = 1.0mm

    • bending angle = 0 - 135 degrees

    Sizes segments:

    • 28mm

    • 52mm

    • 77mm

    • 205mm

    • 255mm

    Product Dimensions:
    Product Length 790 mm
    Product Width 330 mm
    Product Height 400 mm
    Product Weight 43.0 Kg
    Package Dimensions:
    Package Length 810 mm
    Package Width 350 mm
    Package Height 420 mm
    Package Weight 46.00 Kg

    • Various adjustable segments

    • Bending angle up to 135 degrees
