sheet metal shears / lever hand scissors / lever shears

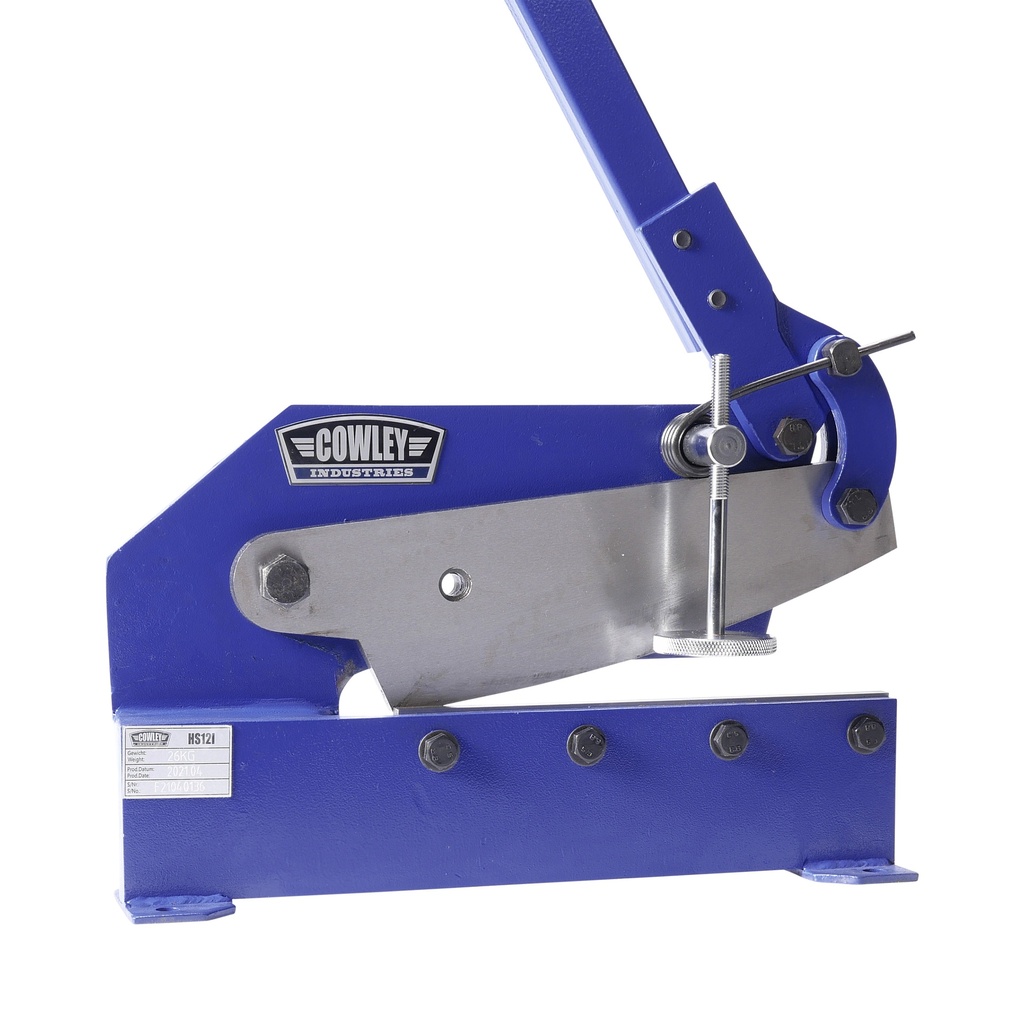

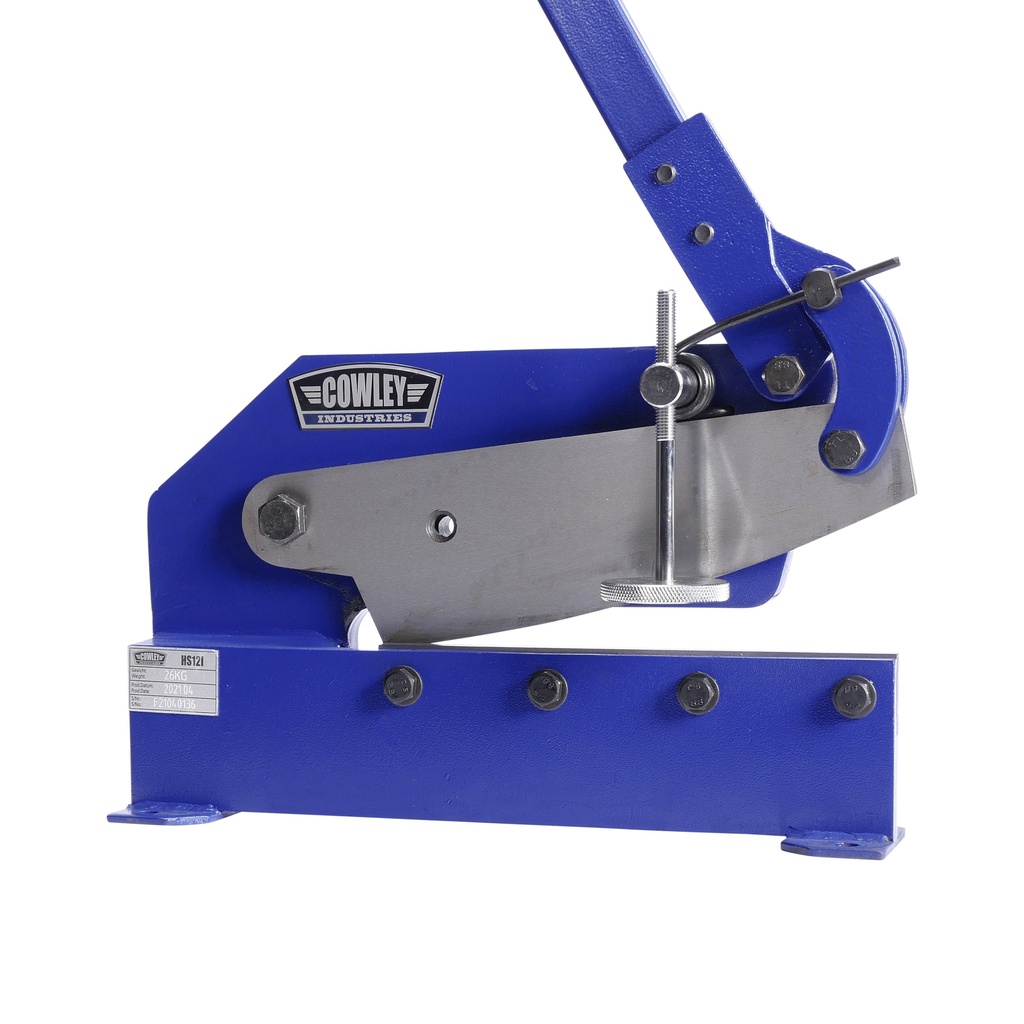

Hand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar.
The lever shears are capable of cutting round steel up to 11 mm in diameter, sheet steel up to 4 mm thick and flat steel up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable down holder which prevents twisting of the steel during cutting. Due to high quality cutting blades and the favourable cutting geometry of the arched top blade the shear has a smooth and easy cutting stroke.
The features of this model:
- cutting of sheet and rod from various materials.

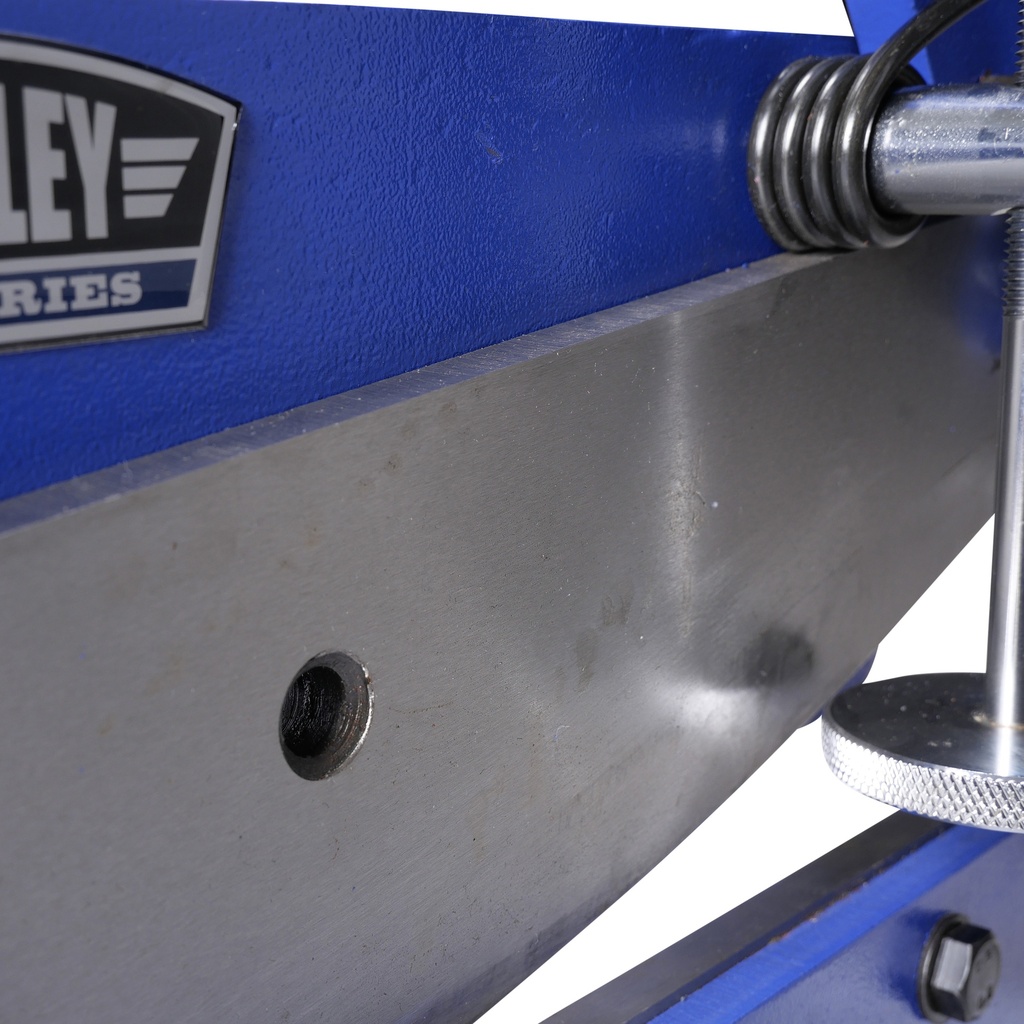

- replaceable high-quality, hardened blades made of tool steel.
- handle included as standard.
- Mounting holes are provided in the body for fixing the scissors to the workbench.
- Includes through hole in the upper blade for exact cutting of round material
- Heavy steel frame.
- Height adjustable downholder prevents twisting of the sheet during cutting.
- The long steel handle is for extra leverage.
- Easy sheet pull-through due to special form.
- Flawless work after marking out thanks to a good view of the knives.
Technical specifications: - Blade length = 304.8 mm (12")
- Cutting length max. = 265 mm
- Capacity sheet steel* = 4.0 mm (* Material strength 400 N/mm², not over the entire length)
- Capacity round steel = 11 mm
- Capacity flat steel = 70 x 5 mm
| Product Dimensions: | |
|---|---|
| Product Length | 470 mm |
| Product Width | 150 mm |
| Product Height | 120 mm |
| Product Weight | 26.0 Kg |
| Package Dimensions: | |
| Package Length | 540 mm |
| Package Width | 480 mm |
| Package Height | 150 mm |
| Package Weight | 27.50 Kg |
