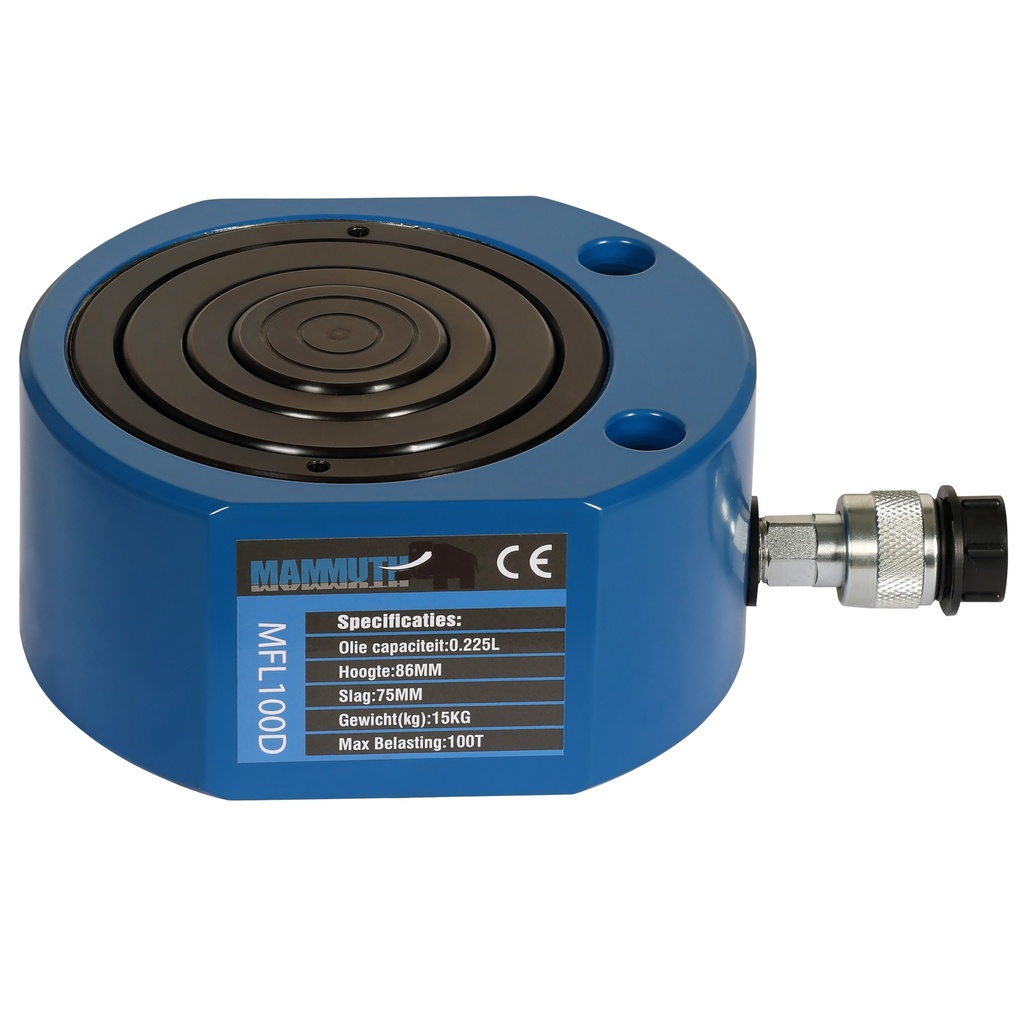

Flat cylinder double 100 ton stroke 75mm

Shop equipment / Hydraulic tools / Double flat cylinders Brand: Mammuth Mammuth

Product Code: MFL100D

EAN: 8720028075584

Availability: Available

€ 453.75 Incl. VAT https://schema.org/InStock 453.75 EUR € 453.75

€ 375.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Flat cylinder double

    The stroke from the double cylinders is higher then the stroke from the single cylinders.
    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.
    Plunger has the function of retracting automatically.

    • output = 100 ton

    • stroke = 75mm

    • effective area = 95cm^2

    • oil capacity = 0,225 L

    • height of product = 86mm

    • extended height = 163mm

    • outside diameter = 185x160mm

    • bore diameter = 130mm

    • plunger diameter = 110mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 0 mm
    Product Width 0 mm
    Product Height 0 mm
    Product Weight 15.0 Kg
    Package Dimensions:
    Package Length 385 mm
    Package Width 330 mm
    Package Height 210 mm
    Package Weight 16.00 Kg
