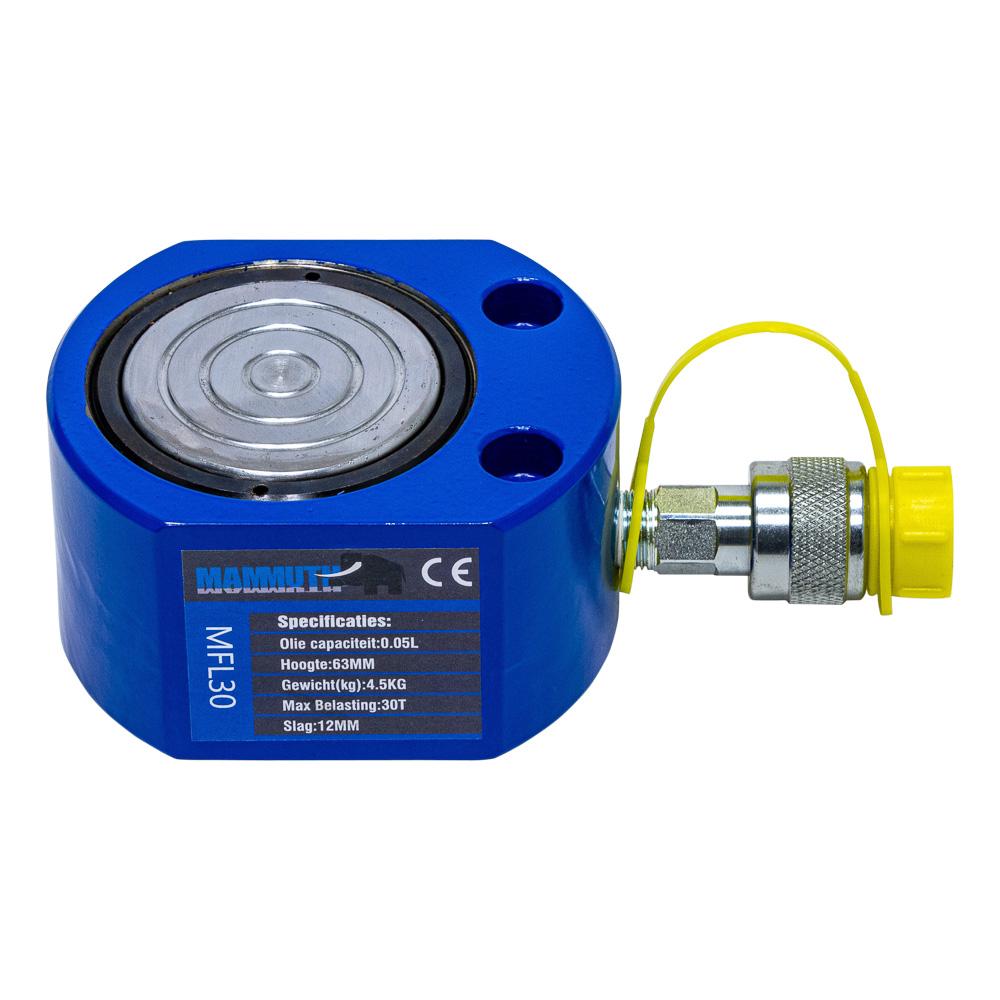

Flat cylinder 30 ton stroke 12mm

Shop equipment / Hydraulic tools / Flat cylinders Brand: Mammuth Mammuth

Product Code: MFL30

EAN: 8720028053452

Availability: Available

€ 121.00 Incl. VAT https://schema.org/InStock 121.0 EUR € 121.00

€ 100.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Flat cylinder

    This cylinder is suit for working in narrowness.
    The surface of the plunger is finished with a chrome plate.
    Plunger has the function of retracting automatically.

    • output = 30 Ton

    • stroke = 12mm

    • effective area = 31,1cm^2

    • oil capacity = 0.05 L

    • height of product = 63mm

    • extended height = 75mm

    • outside diameter = 115x95mm

    • bore diameter = 75mm

    • plunger diameter = 63mm

    • thread for oil input = 3/8''-19

    • saddle protusion form Plgr = 2mm

    • max. pressure = 700bar

    Product Dimensions:
    Product Length 185 mm
    Product Width 95 mm
    Product Height 63 mm
    Product Weight 4.5 Kg
    Package Dimensions:
    Package Length 255 mm
    Package Width 155 mm
    Package Height 105 mm
    Package Weight 5.00 Kg
