Round dies M14 HSS-G fully ground DIN EN 22568

Wood and Metal working / Metal working machinery / Threadcutting / Round dies Brand: Labor Labor

Product Code: SC237140

EAN: 8720028098606

Availability: Available

€ 11.50 Incl. VAT https://schema.org/InStock 11.5 EUR € 11.50

€ 9.50

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

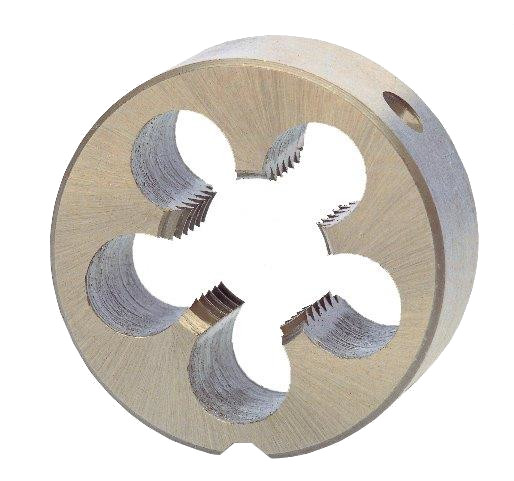

    Round dies

    HSS fully ground round dies are made from alloyed high speed steel. Full grinding during the production process results in a very sharp die with high precision. In combination with cutting oil this will result in a very long tool life. Very suitable for tapping external threads in unalloyed steels such as sheet steel, construction steel and cast iron.

    Technical specificaties:

    • size = M14

    • pitch = 2,00mm

    • diameter = 38mm

    • thickness = 14mm

    • DIN EN 22568

    • material = HSS - G

    • right hand

    • fully ground

    Product Dimensions:
    Product Length 38 mm
    Product Width 38 mm
    Product Height 14 mm
    Product Weight 0.08 Kg
    Package Dimensions:
    Package Length 90 mm
    Package Width 45 mm
    Package Height 18 mm
    Package Weight 0.09 Kg

    • Fully ground, for external thread

    • Suitable for unalloyed steel

    • High precision

    • Long lifetime
