Tube roller 40mm

Wood and Metal working / Metal working machinery / Bending equipment / Bending equipment Brand: Cowley Cowley

Product Code: UW40

EAN: 8720028045655

Availability: Available

€ 272.25 Incl. VAT https://schema.org/InStock 272.25 EUR € 272.25

€ 225.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

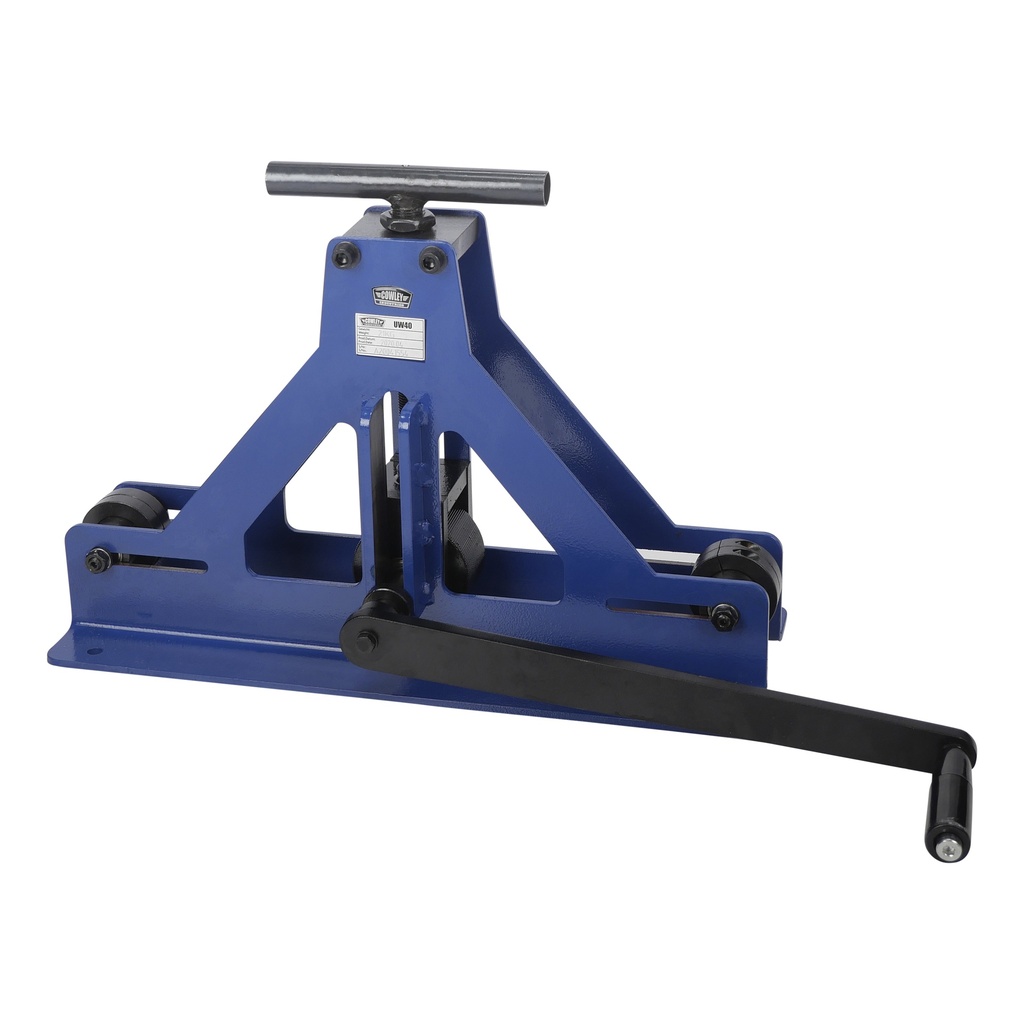

    Tube bender / profile roller

    This Cowley tube roller is very suitable for working with square and rectangular pipes. The manual tube bender has a compact design, is easy to operate and attaches to a workbench or base.
    The machine comes standard with 1 set of rollers.

    Specifications:

    • max. capacity steel = 20 x 20 x 1,2mm / 25 x 25 x 1,2mm / 30 x 30 x 1,5mm / 40 x 40 x 1,5mm

    • max. capacity copper = 20 x 20 x 1,5mm / 25 x 25 x 1,5mm / 30 x 30 x 1,75mm / 40 x 40 x 1,5mm

    • max. capacity aluminum = 20 x 20 x 1,75mm / 25 x 25 x 1,75mm / 30 x 30 x 2mm / 40 x 40 x 1,75mm

    • min radius = 180 / 170 / 200 / 220mm

    • min. diameter = 450 / 500 / 550 / 600mm

    Product Dimensions:
    Product Length 530 mm
    Product Width 250 mm
    Product Height 370 mm
    Product Weight 19.0 Kg
    Package Dimensions:
    Package Length 550 mm
    Package Width 270 mm
    Package Height 390 mm
    Package Weight 21.00 Kg

    • Tubes to 40x40mm

    • Compact design

    • Easy to operate
