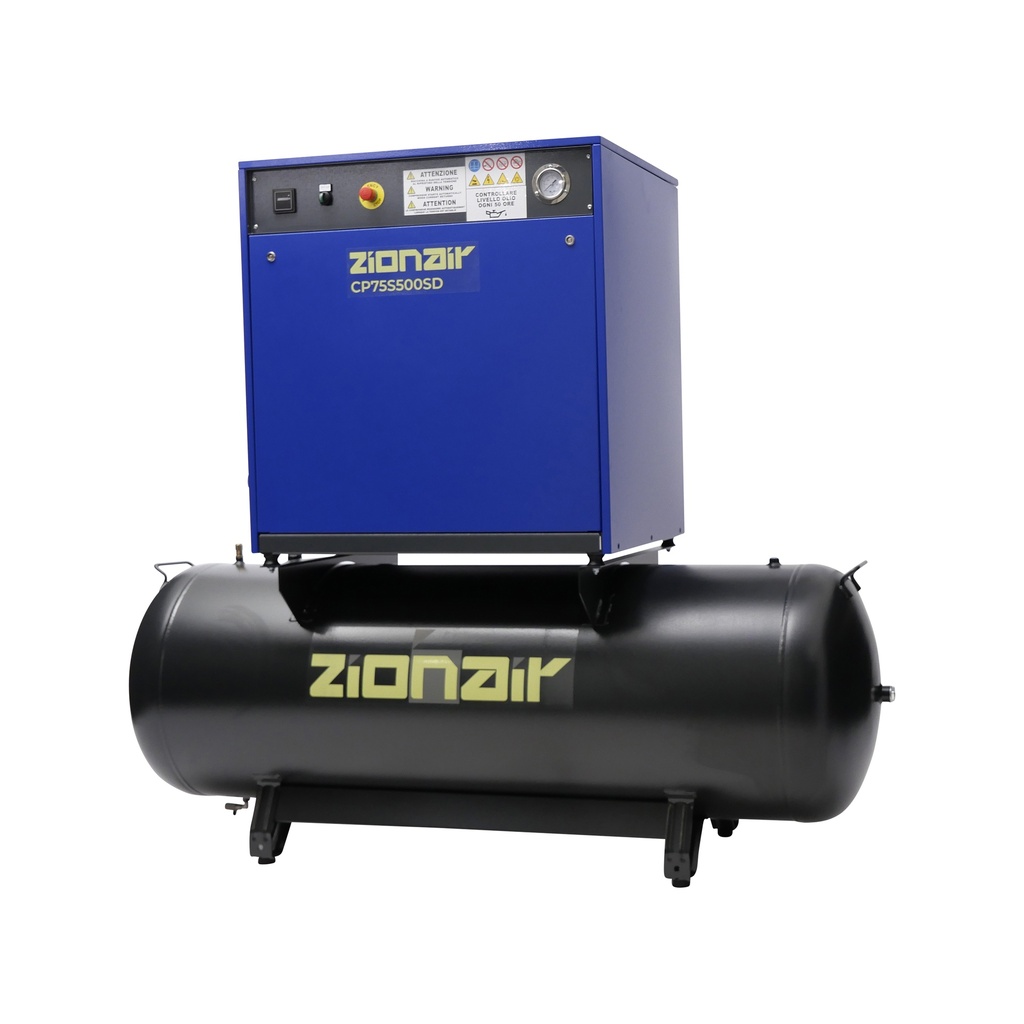

Compressor silent 7,5kW 400V 11 bar 500L tank star-delta

Brand: ZionAir

Product Code: CP75S500SD

EAN: 8720028094899

Availability: Available

https://www.valkenpower.com/web/image/product.template/61240/image_1920?unique=9163beb

€ 5,142.50 Incl. VAT 5142.5 EUR € 5,142.50

€ 4,250.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

    Air compressor / silenced compressor / silent compressor

    This ZionAir silenced compressor is produced in Italy under European quality standards and is equipped with a K50 Chinook-Shamal pump. This makes the compressor energy efficient, inexpensive to maintain, easy to use and guarantees maximum performance with minimum noise level.

    Star-delta switch to start the heavy engine step by step. The compressor has integrated electronics, so it is not necessary to mount the switch box separately.

    The compressor is also equipped with a "fan on demand". This built-in fan turns on automatically when needed using an internal temperature gauge.

    Technical specifications:

    • power = 7.5kW

    • voltage = 400V

    • max. pump pressure = 11 bar

    • max. tank pressure = 11 bar

    • preset cut-off pressure = 9 bar

    • start-up pressure = 6 bar

    • suction volume = 1200L/min

    • air output = 830L/min

    • tank volume = 500L

    • type pump = K50 Chinook - Shamal

    • speed = 1150rpm

    • duty cycle = 50%

    • noise level = 72.6dB (@ 1m)

    • no plug, 3m 4x2.5mm² cable

    • connection = 1" adaptor to 3/4" NPT internal thread (side of tank)

    Product Dimensions:
    Product Length 1,950 mm
    Product Width 680 mm
    Product Height 1,660 mm
    Product Weight 349.0 Kg
    Package Dimensions:
    Package Length 1,950 mm
    Package Width 850 mm
    Package Height 1,800 mm
    Package Weight 375.00 Kg

    • Made in Italy

    • Star-delta

    • Fan on demand

    • Very low noise level

    • Low speed
