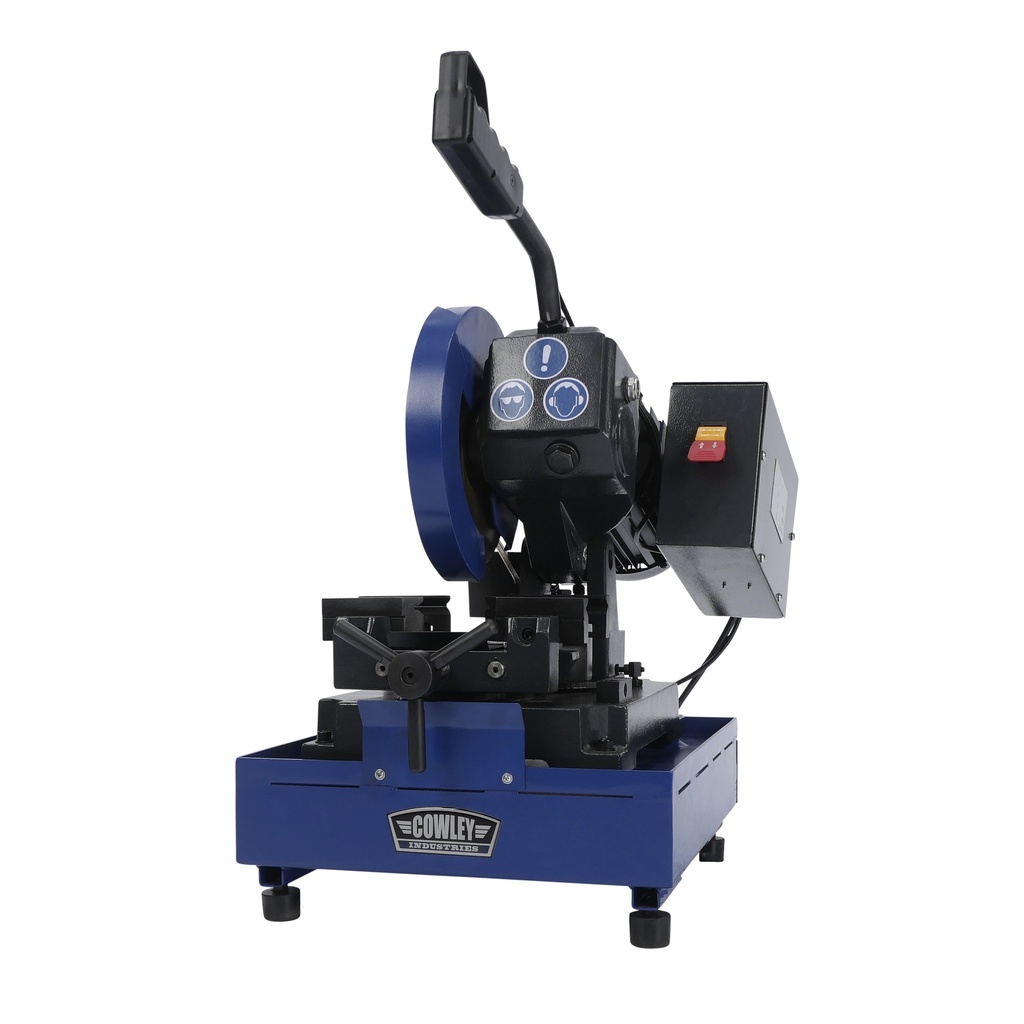

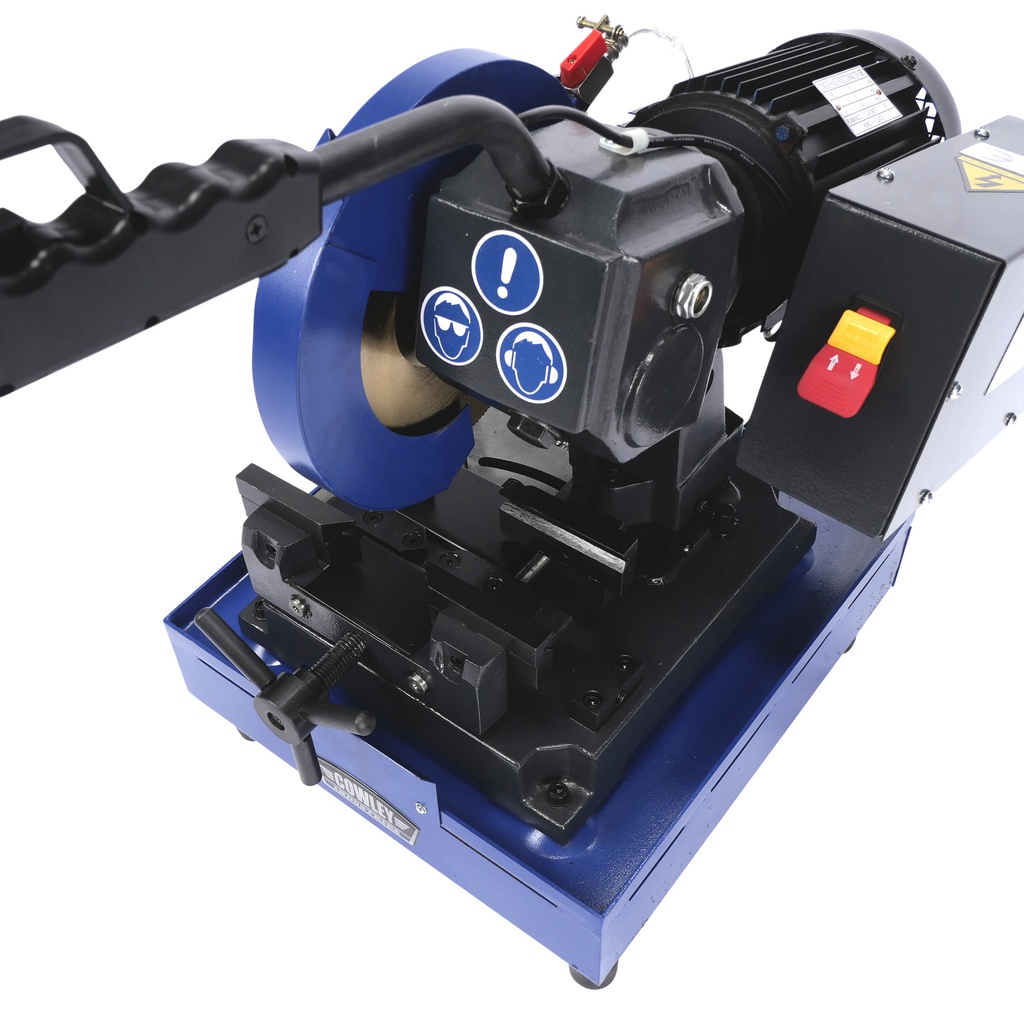

Metal circular saw / sawing machine
This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable head 45 degrees
Material stop
The machines comes with a saw blade of 225mm and a cooling unit.
Specifications:
saw blade diameter = 225mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 60mm
cutting capacity rectangular 90 degrees = 50 x 50mm
cutting capacity circular 45 degrees = 52mm
cutting capacity rectangular 45 degrees = 50 x 50mm
blade speed = 46rpm
max. opening clamp = 70mm
motor power = 750W
voltage = 230V
| Product Dimensions: | |
|---|---|
| Product Length | 800 mm |
| Product Width | 500 mm |
| Product Height | 670 mm |
| Product Weight | 63.0 Kg |
| Package Dimensions: | |
| Package Length | 710 mm |
| Package Width | 500 mm |
| Package Height | 630 mm |
| Package Weight | 87.00 Kg |
![[CS250] Circular saw metal 250mm](/web/image/product.product/51222/image_512/%5BCS250%5D%20Circular%20saw%20metal%20250mm?unique=49c8e0a)
![[CS350] Circular saw metal 350mm](/web/image/product.product/50290/image_512/%5BCS350%5D%20Circular%20saw%20metal%20350mm?unique=ecd4787)

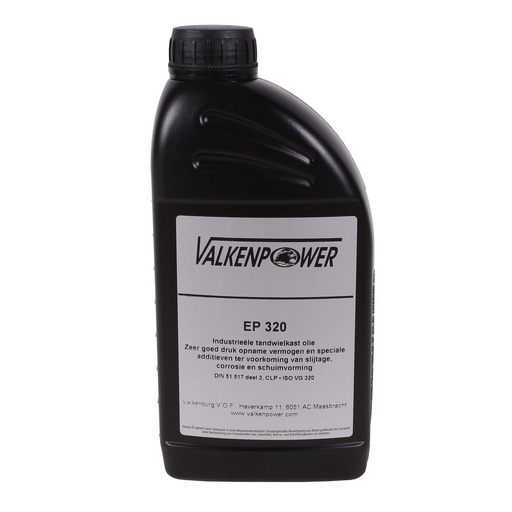

![[OTEP320] Industrial gearbox oil 1L](/web/image/product.product/51031/image_512/%5BOTEP320%5D%20Industrial%20gearbox%20oil%201L?unique=43ae3d2)

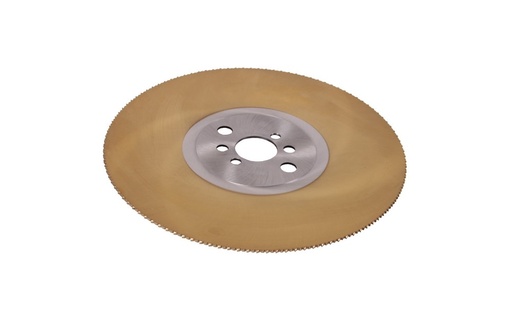

![[CS225B] Sawblade for circular saw 225mm](/web/image/product.product/51207/image_512/%5BCS225B%5D%20Sawblade%20for%20circular%20saw%20225mm?unique=3bae25d)

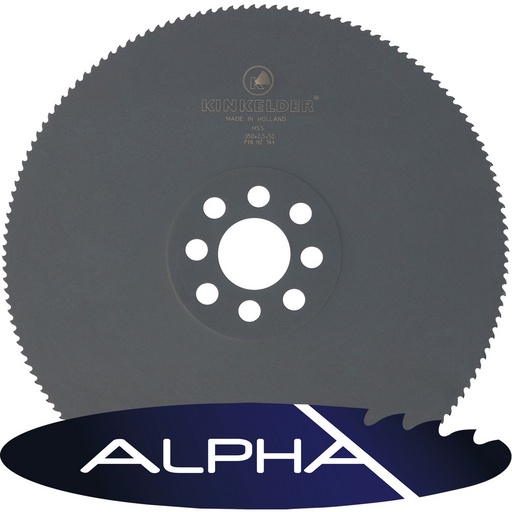

![[CS225BALPH] Saw blade HSS alpha 225 x 2 x 32mm](/web/image/product.product/51696/image_512/%5BCS225BALPH%5D%20Saw%20blade%20HSS%20alpha%20225%20x%202%20x%2032mm?unique=3bae25d)

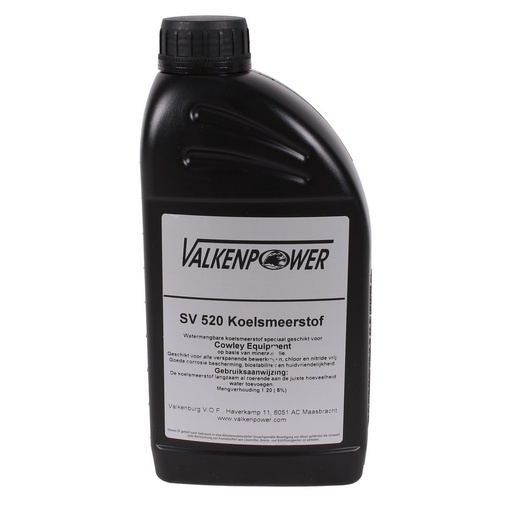

![[OKSV520] Water mixable cooling lubricant 1L](/web/image/product.product/51032/image_512/%5BOKSV520%5D%20Water%20mixable%20cooling%20lubricant%201L?unique=ae30611)
