Plate roller machine

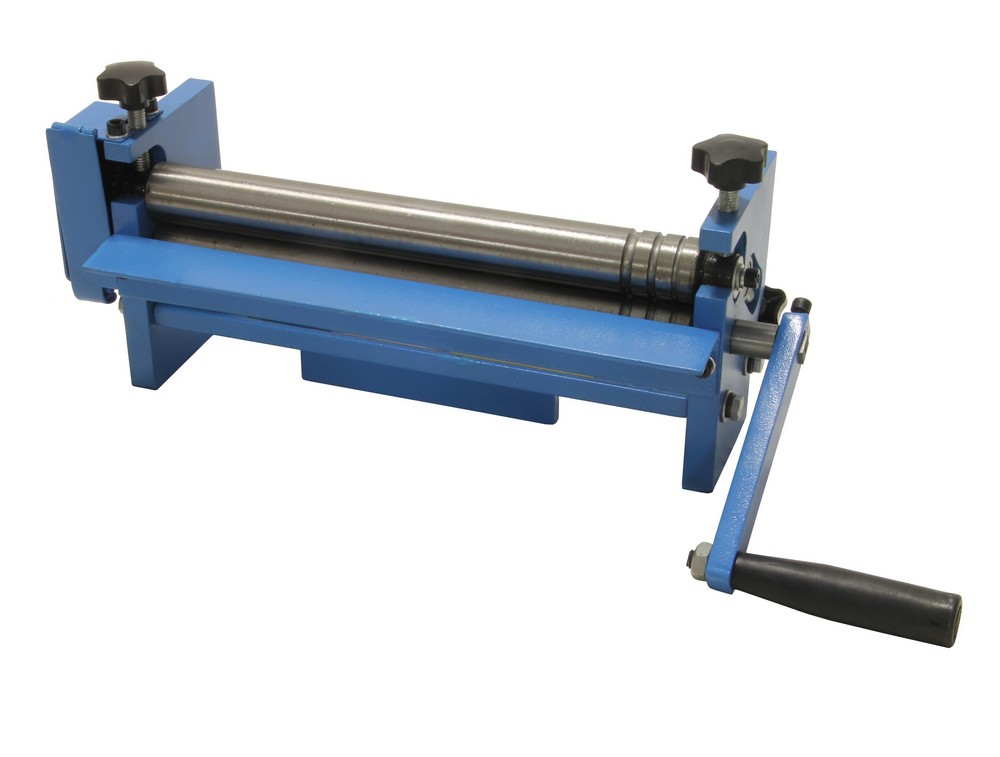

This Cowley slip roll machine is ideal for rolling plate material in various shapes such as pipes and tubes. The machine can be operated with th handle on the side and the upper roll is easy to remove so that the sheet metal can be removed.
The rollers are also individually adjustable and equipped with wire grooves.

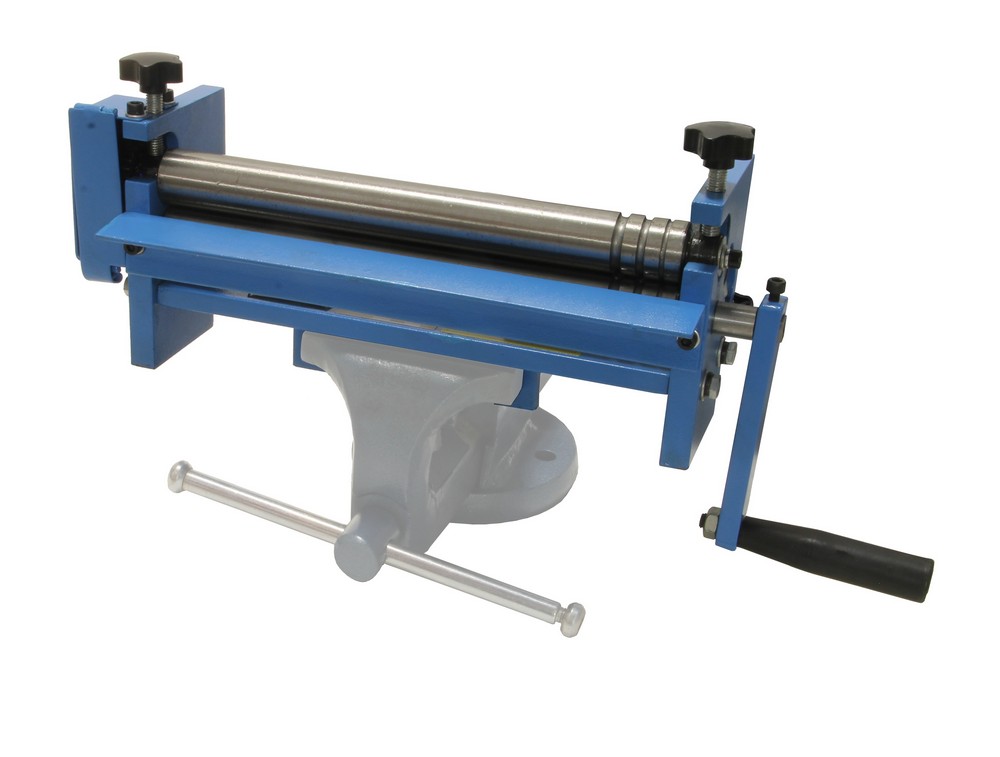

The roll machine is easy to clamp in a vise.
max. plate thickness = 1,0mm
max. width plate = 305mm
diameter of the roll = 32mm
| Product Dimensions: | |
|---|---|
| Product Length | 415 mm |
| Product Width | 170 mm |
| Product Height | 185 mm |
| Product Weight | 12.7 Kg |
| Package Dimensions: | |
| Package Length | 400 mm |
| Package Width | 180 mm |
| Package Height | 240 mm |
| Package Weight | 13.60 Kg |
