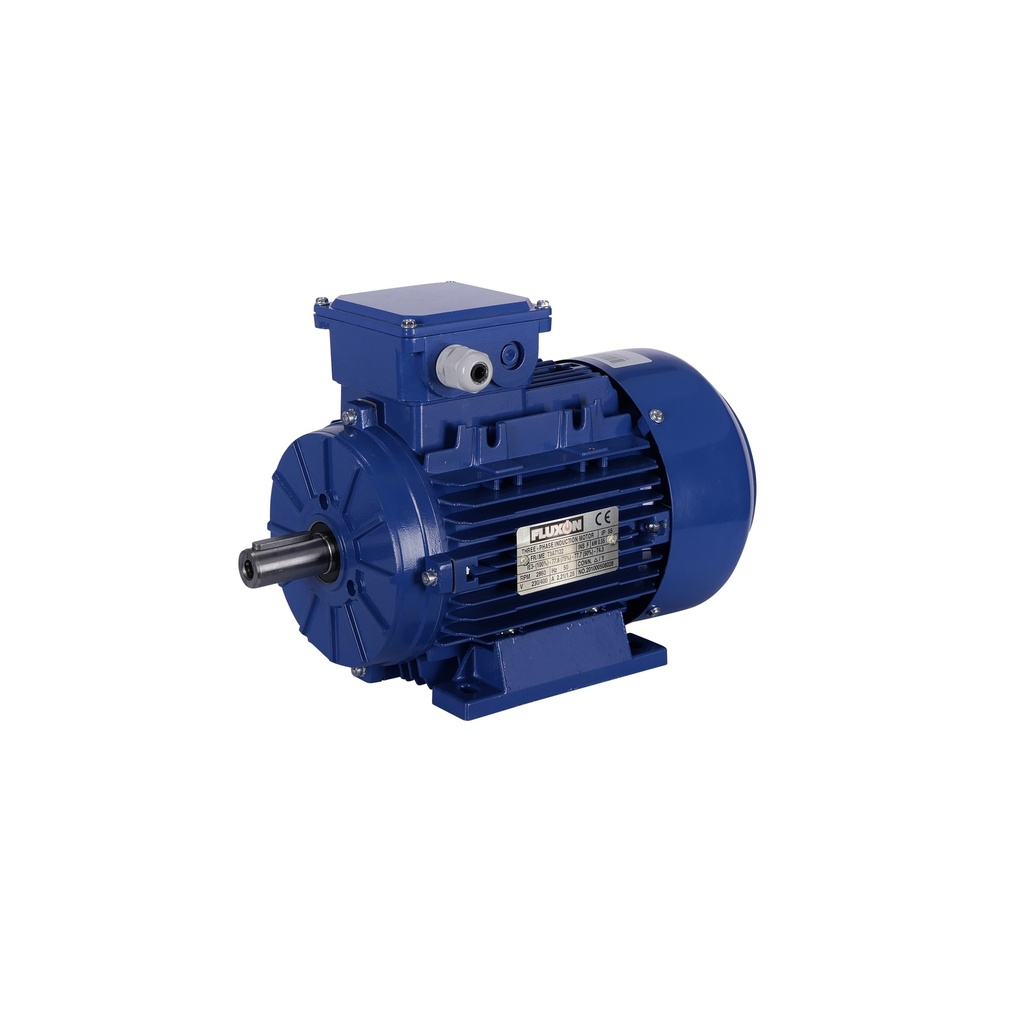

Electric motor / induction motor
The new series of Fluxon induction motors meet the IE3 efficiency standard. This IEC standard means that the electric motors meet the premium efficiency class. These multifunctional motors of industrial quality have a duty cycle of 100% (at nominal power) and are provided with insulation class F. The three-phase asynchronous motors can be connected to the electricity grid with or without the intervention of a frequency inverter. The Fluxon IE3 induction motors are energy efficient, very robust and extremely reliable.
Technical specifications:
voltage = 230 / 400V
power = 0.55kW
speed = 2860rpm
axle size = 14mm
frequency = 50Hz
efficiency = IE3
protection class = IP55
| Product Dimensions: | |
|---|---|
| Product Length | 245 mm |
| Product Width | 141 mm |
| Product Height | 181 mm |
| Product Weight | 6.2 Kg |
| Package Dimensions: | |
| Package Length | 250 mm |
| Package Width | 150 mm |
| Package Height | 220 mm |
| Package Weight | 6.55 Kg |
