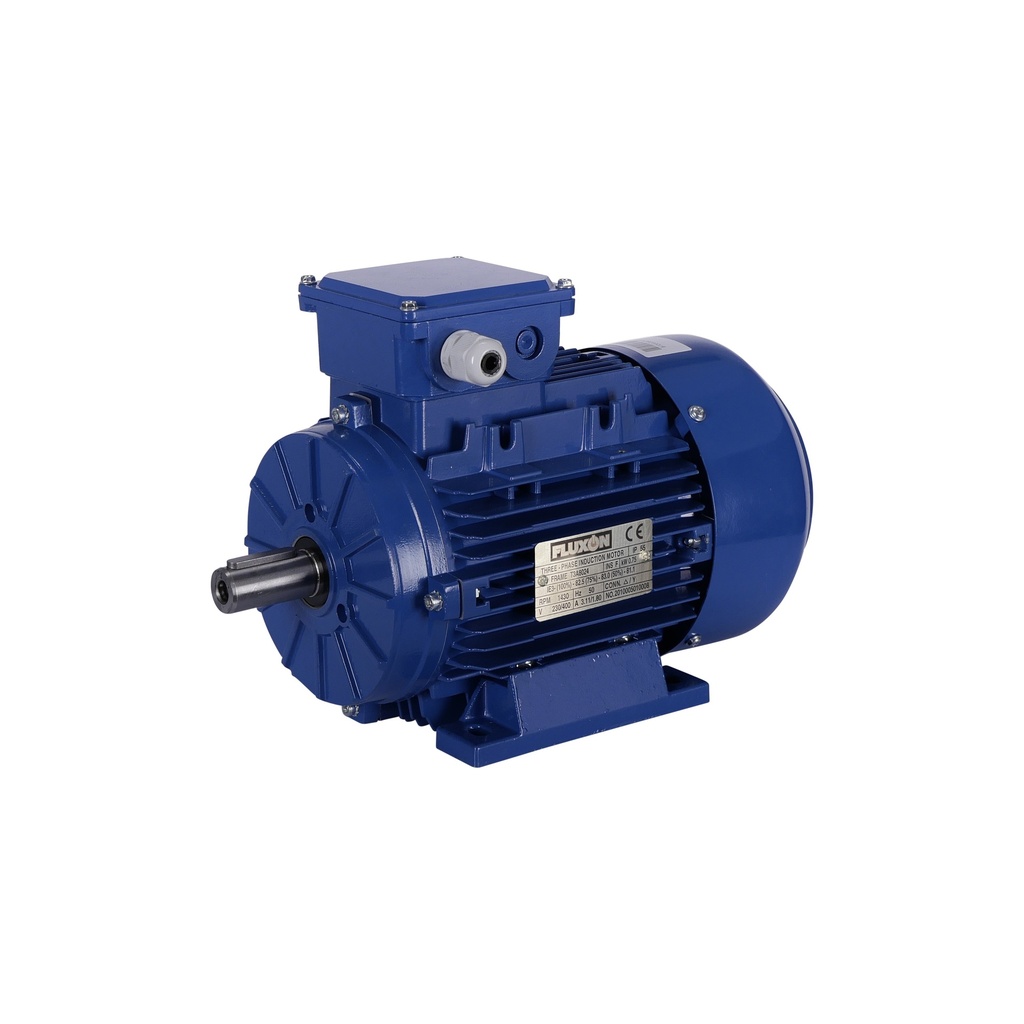

Electric motor / induction motor
The new series of Fluxon induction motors meet the IE3 efficiency standard. This IEC standard means that the electric motors meet the premium efficiency class. These multifunctional motors of industrial quality have a duty cycle of 100% (at nominal power) and are provided with insulation class F. The three-phase asynchronous motors can be connected to the electricity grid with or without the intervention of a frequency inverter. The Fluxon IE3 induction motors are energy efficient, very robust and extremely reliable.
Technical specifications:
voltage = 230 / 400V
power = 0.75kW
speed = 1440rpm
axle size = 19mm
frequency = 50Hz
efficiency = IE3
protection class = IP55
| Product Dimensions: | |
|---|---|
| Product Length | 280 mm |
| Product Width | 162 mm |
| Product Height | 211 mm |
| Product Weight | 11.6 Kg |
| Package Dimensions: | |
| Package Length | 305 mm |
| Package Width | 180 mm |
| Package Height | 240 mm |
| Package Weight | 12.00 Kg |
![[PA10019D] Pulley diameter 100mm hole 19mm type A double](/web/image/product.product/48959/image_512/%5BPA10019D%5D%20Pulley%20diameter%20100mm%20hole%2019mm%20type%20A%20double?unique=3bae25d)
![[PB10019] Pulley diameter 100mm hole 19mm type B](/web/image/product.product/48996/image_512/%5BPB10019%5D%20Pulley%20diameter%20100mm%20hole%2019mm%20type%20B?unique=3bae25d)
![[PB10019D] Pulley diameter 100mm hole 19mm type B double](/web/image/product.product/48997/image_512/%5BPB10019D%5D%20Pulley%20diameter%20100mm%20hole%2019mm%20type%20B%20double?unique=3bae25d)
![[PA12519] Pulley diameter 125mm hole 19mm type A](/web/image/product.product/48962/image_512/%5BPA12519%5D%20Pulley%20diameter%20125mm%20hole%2019mm%20type%20A?unique=3bae25d)
![[PA12519D] Pulley diameter 125mm hole 19mm type A double](/web/image/product.product/48963/image_512/%5BPA12519D%5D%20Pulley%20diameter%20125mm%20hole%2019mm%20type%20A%20double?unique=3bae25d)

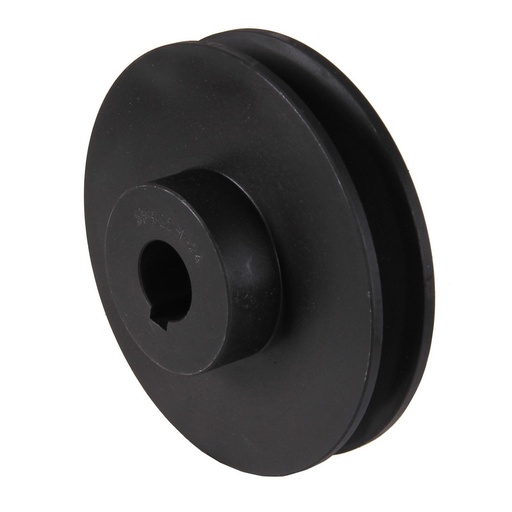

![[PB12519] Pulley diameter 125mm hole 19mm type B](/web/image/product.product/49007/image_512/%5BPB12519%5D%20Pulley%20diameter%20125mm%20hole%2019mm%20type%20B?unique=3bae25d)
![[PB12519D] Pulley diameter 125mm hole 19mm type B double](/web/image/product.product/49008/image_512/%5BPB12519D%5D%20Pulley%20diameter%20125mm%20hole%2019mm%20type%20B%20double%20?unique=3bae25d)
![[PA15019] Pulley diameter 150mm hole 19mm type A](/web/image/product.product/48966/image_512/%5BPA15019%5D%20Pulley%20diameter%20150mm%20hole%2019mm%20type%20A?unique=3bae25d)
![[PA15019D] Pulley diameter 150mm hole 19mm type A double](/web/image/product.product/48967/image_512/%5BPA15019D%5D%20Pulley%20diameter%20150mm%20hole%2019mm%20type%20A%20double?unique=3bae25d)
![[PB15019] Pulley diameter 150mm hole 19mm type B](/web/image/product.product/49014/image_512/%5BPB15019%5D%20Pulley%20diameter%20150mm%20hole%2019mm%20type%20B?unique=3bae25d)

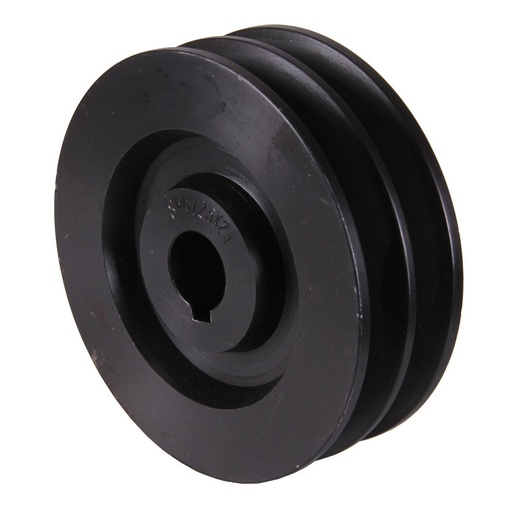

![[PB15019D] Pulley diameter 150mm hole 19mm type B double](/web/image/product.product/49015/image_512/%5BPB15019D%5D%20Pulley%20diameter%20150mm%20hole%2019mm%20type%20B%20double?unique=3bae25d)
![[PA06019] Pulley diameter 60mm hole 19mm type A](/web/image/product.product/48946/image_512/%5BPA06019%5D%20Pulley%20diameter%2060mm%20hole%2019mm%20type%20A?unique=3bae25d)
![[PA06019D] Pulley diameter 60mm hole 19mm type A double](/web/image/product.product/48947/image_512/%5BPA06019D%5D%20Pulley%20diameter%2060mm%20hole%2019mm%20type%20A%20double?unique=3bae25d)
![[PB06019] Pulley diameter 60mm hole 19mm type B](/web/image/product.product/48985/image_512/%5BPB06019%5D%20Pulley%20diameter%2060mm%20hole%2019mm%20type%20B?unique=3bae25d)
![[PB06019D] Pulley diameter 60mm hole 19mm type B double](/web/image/product.product/48986/image_512/%5BPB06019D%5D%20Pulley%20diameter%2060mm%20hole%2019mm%20type%20B%20double?unique=3bae25d)

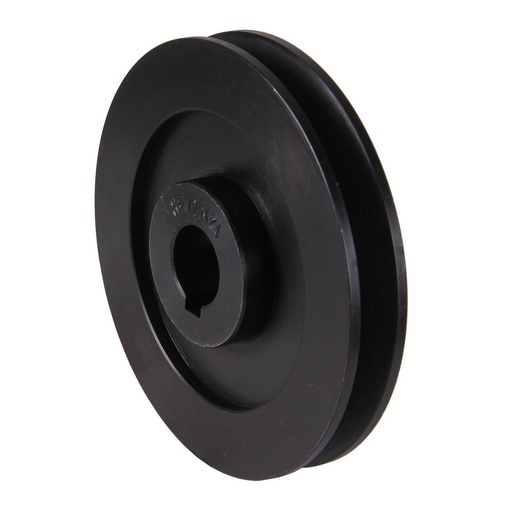

![[PA08019] Pulley diameter 80mm hole 19mm type A](/web/image/product.product/48953/image_512/%5BPA08019%5D%20Pulley%20diameter%2080mm%20hole%2019mm%20type%20A?unique=3bae25d)

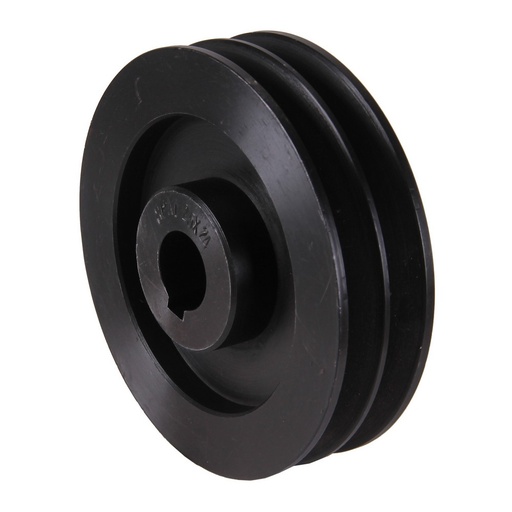

![[PA08019D] Pulley diameter 80mm hole 19mm type A double](/web/image/product.product/48954/image_512/%5BPA08019D%5D%20Pulley%20diameter%2080mm%20hole%2019mm%20type%20A%20double?unique=3bae25d)
