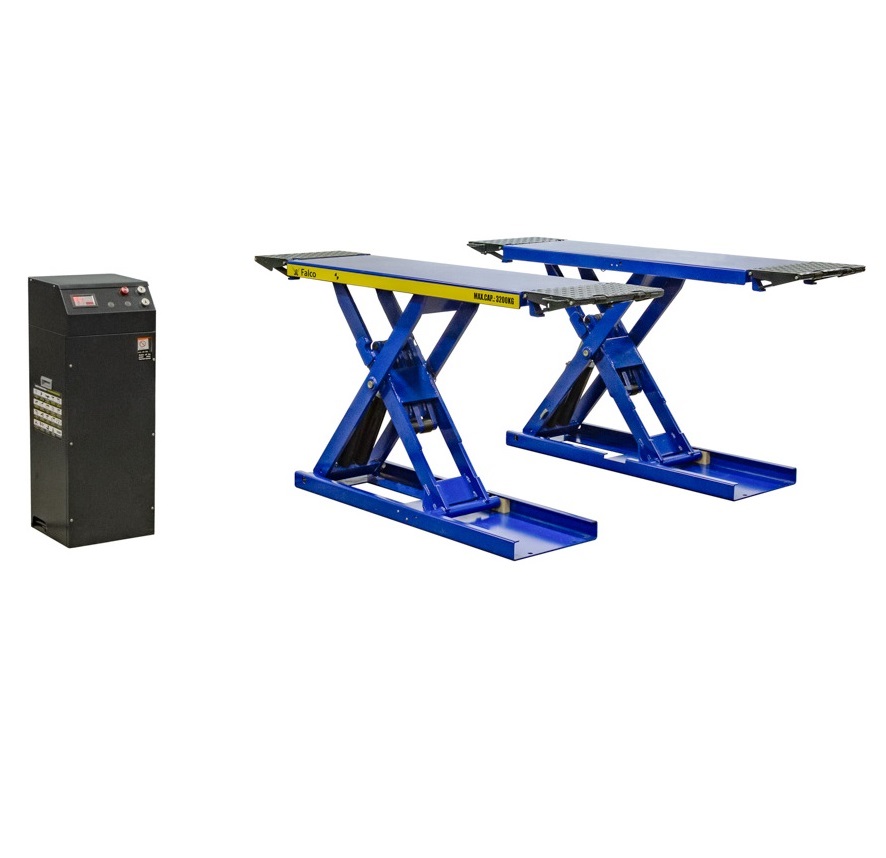

Midrise scissor lift master-slave 3200kg 400V

Brand: Falco Sollevatori

Product Code: VL7532B

EAN: 8720028046843

Availability: Available

https://www.valkenpower.com/web/image/product.template/59025/image_1920?unique=4afaac1

€ 3,146.00 Incl. VAT 3146.0 EUR € 3,146.00

€ 2,600.00

    This combination does not exist.

    Fast delivery from large stock.
    Safe payment via various payment options.
    14-day return policy.

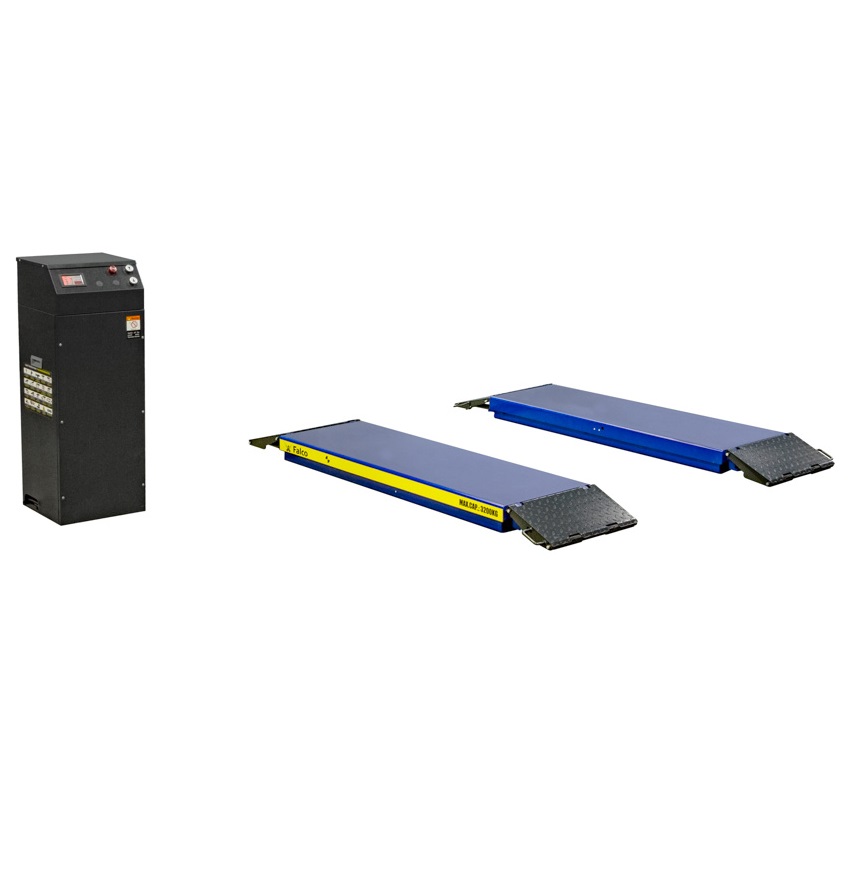

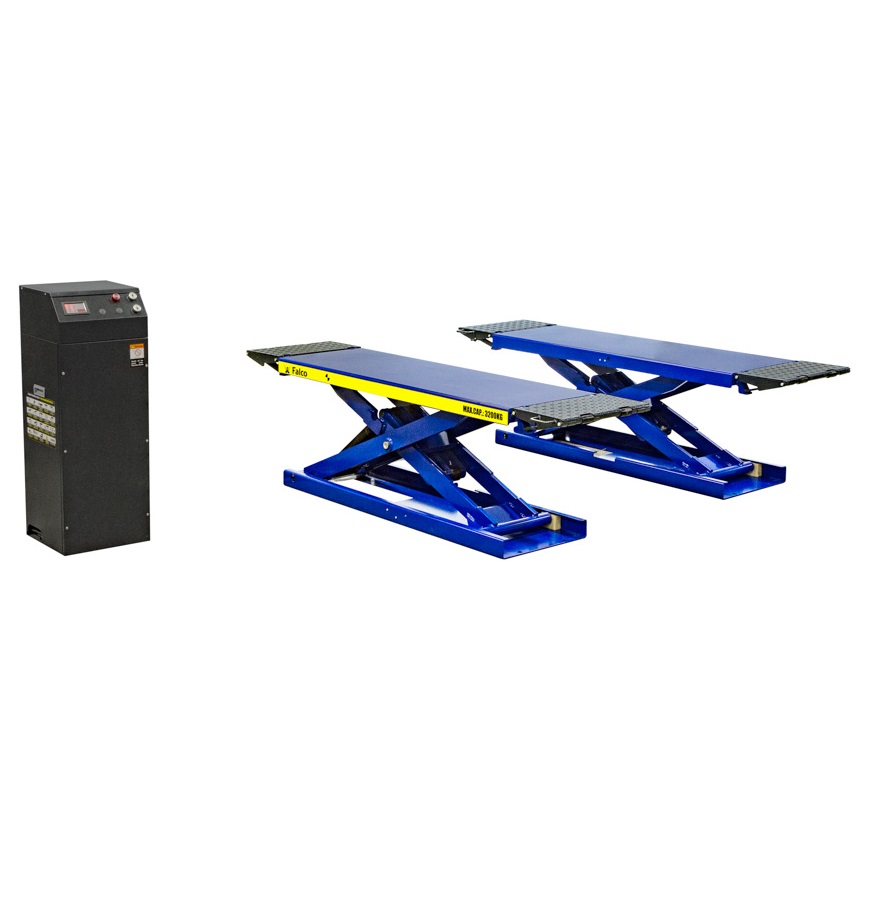

    Fully automatic scissor lift / car cleaning lift / scissor lift

    This Falco Sollevatori single scissor lift is of high quality and suitable for professional use. With Falco lifts, quality and finishing go first.
    Equipped with no less than four hydraulic cylinders (two per platform), this lift has a master-slave lifting system and also a locking system. This means that the lift is safe in any position and does not have to be lowered before work on the car can be done. It is also not necessary to first raise the lift to get out of the locking system, making the lift much easier to use and suitable for more applications than mechanically locked lifts.

    Thanks to its robust construction and thoughtful design, this single scissor lift is standard equipped with the following useful features:

    • platform length = 1460mm

    • total length including ramps = 1995mm

    • master-slave hydraulic system

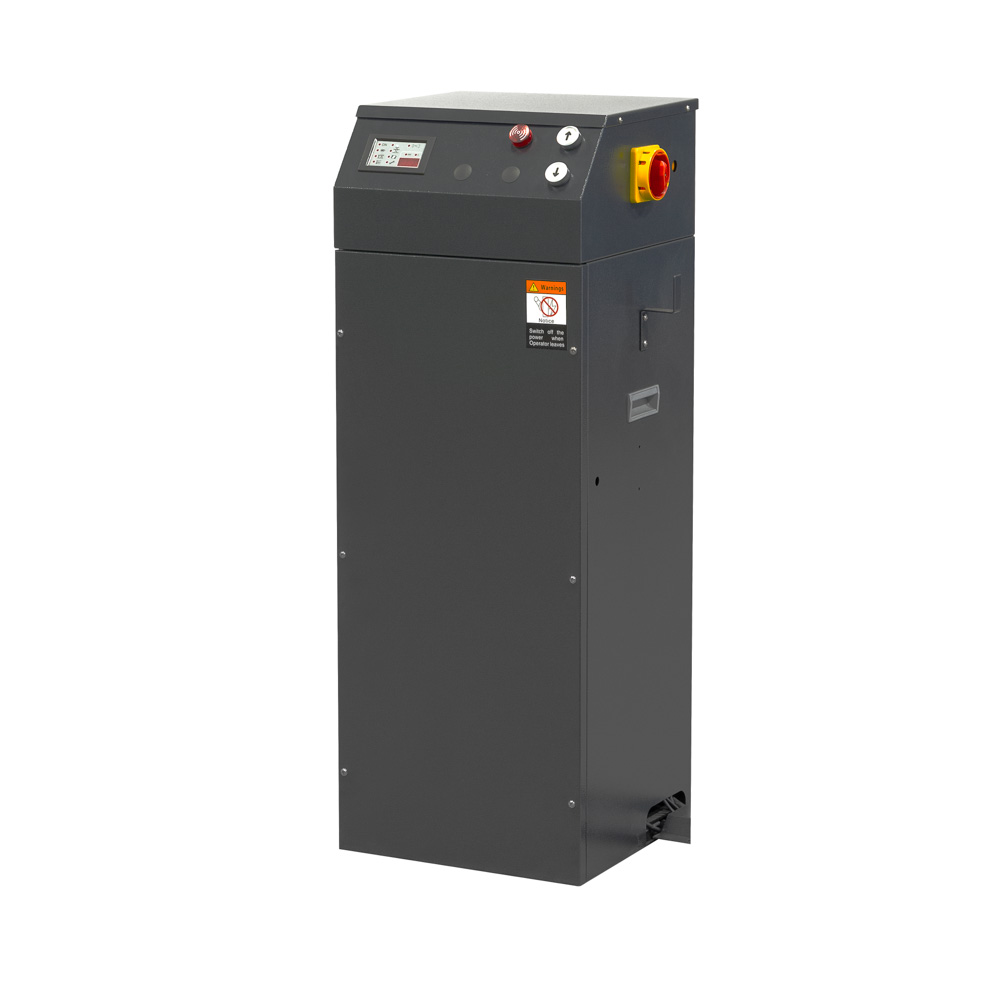

    • electrical hydraulic double pump

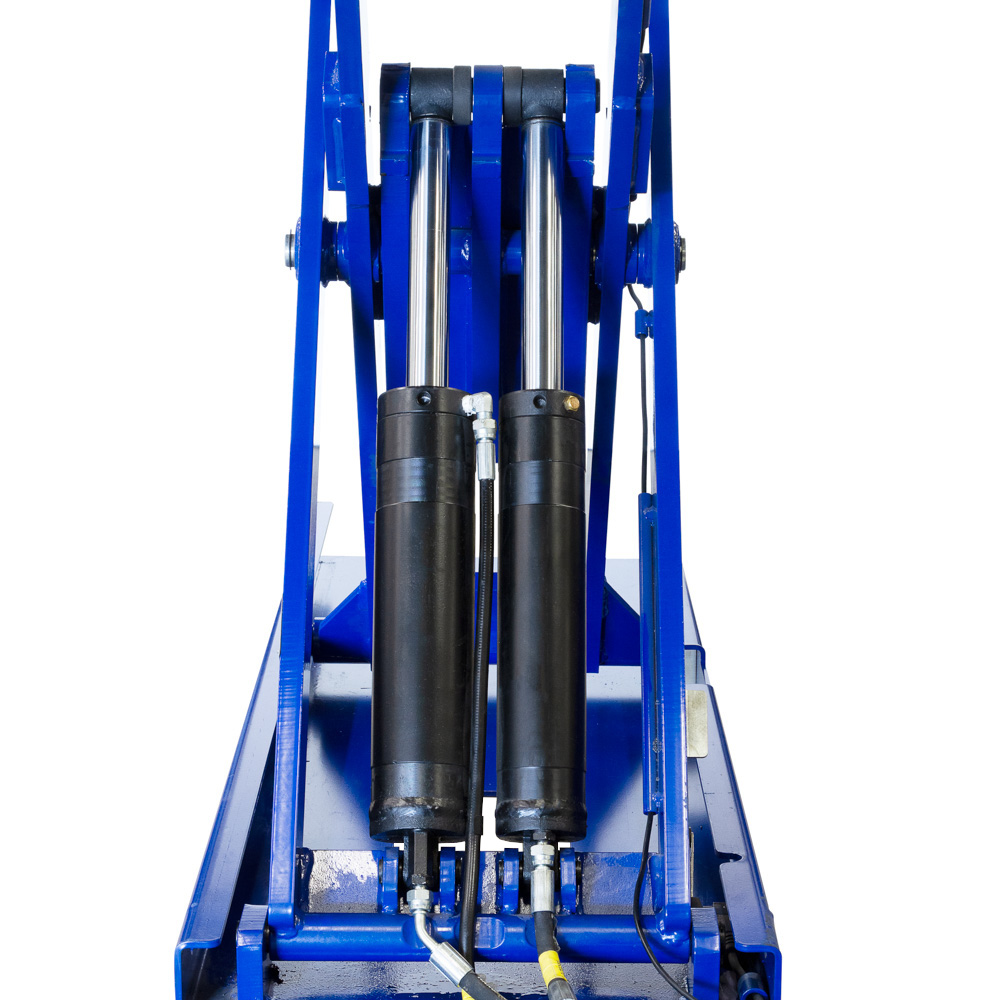

    • equipped with 4 heavy hydraulic cylinders

    • 8 hydraulic parachute valves for optimum safety

    • automatic venting by means of venting button

    • hydraulic synchronization

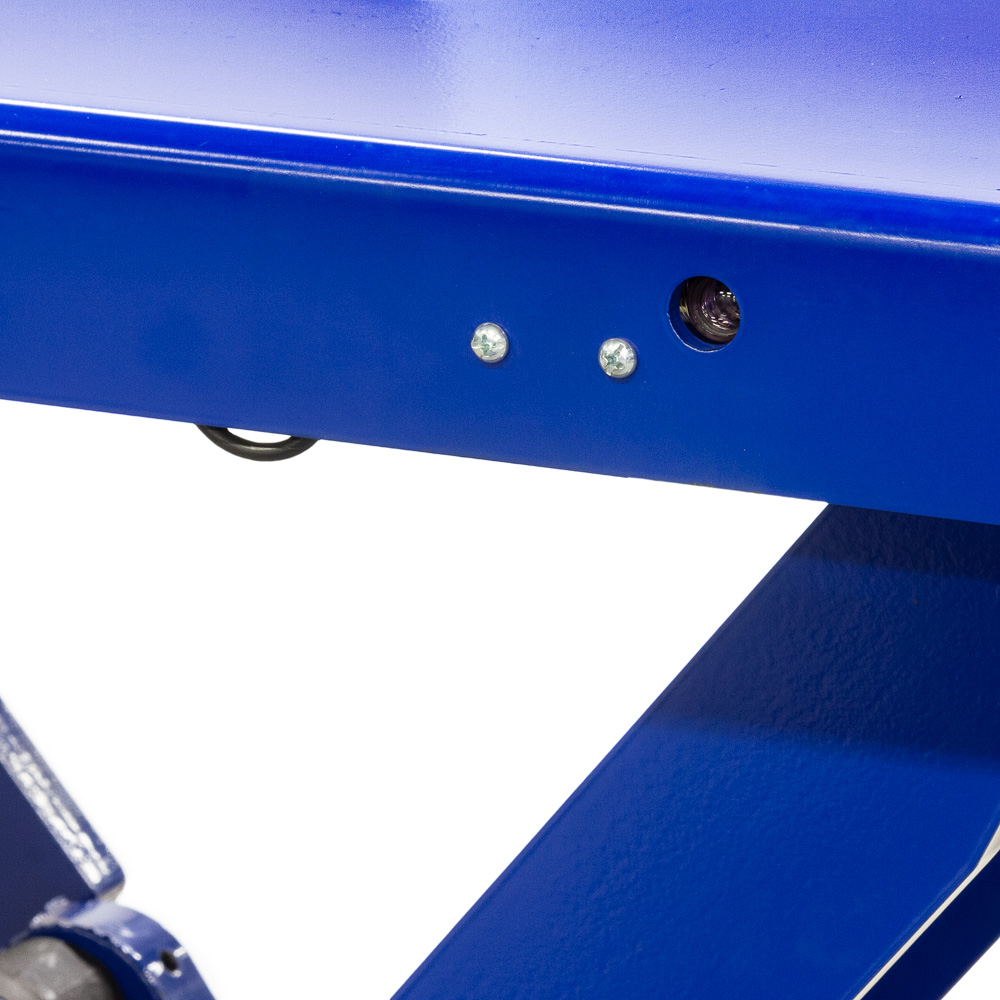

    • photocell safety between the 2 platforms

    • automatic overload protection

    • control valve for controlling the speed when lowering

    • limit sensors for limiting the maximum lift height and the minimum safety height

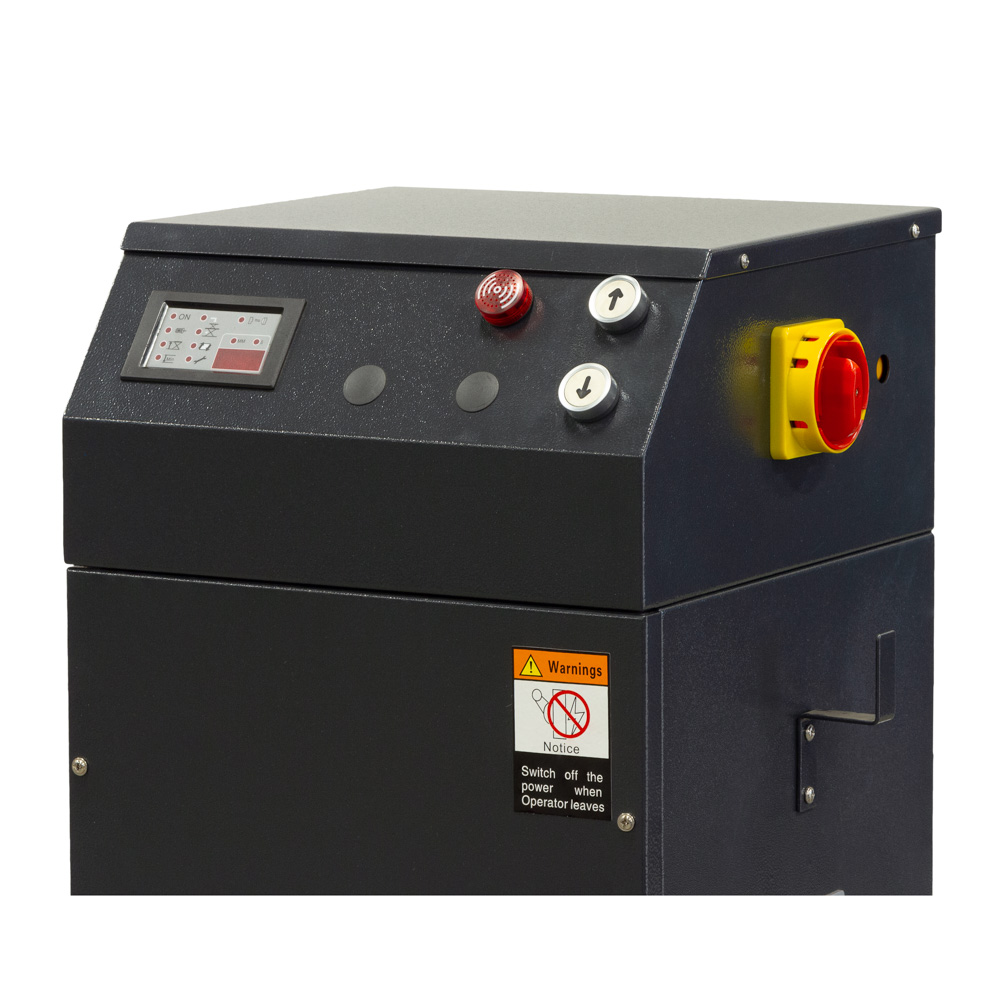

    • dead man's operation when lifting and lowering

    • foot protection including acoustic safety signal

    • adjustable distance between scissor platforms to your own liking

    • Dutch manual including maintenance protocol and CE certificate 2006/42/EC

    • meets the NEN-EN1493 safety standard

    Specifications:

    • lifting capacity = 3200kg

    • max. lifting height = 1000mm

    • min. lifting height = 110mm

    • platform length = 1460mm / 1995mm

    • width of the platforms = 490mm

    • recommended free space between platforms = 860mm (adjustable)

    • lifting time = 40 sec

    • voltage = 3-phase 400V

    • power = 2,2kW

    • weight = 640kg

    • oil capacity = 15L (not included!)

    Product Dimensions:
    Product Length 2,000 mm
    Product Width 1,650 mm
    Product Height 1,000 mm
    Product Weight 640.0 Kg
    Package Dimensions:
    Package Length 1,600 mm
    Package Width 720 mm
    Package Height 1,650 mm
    Package Weight 670.00 Kg

    • Master-slave system: lift is safe in any position

    • Photocell protection between the platforms

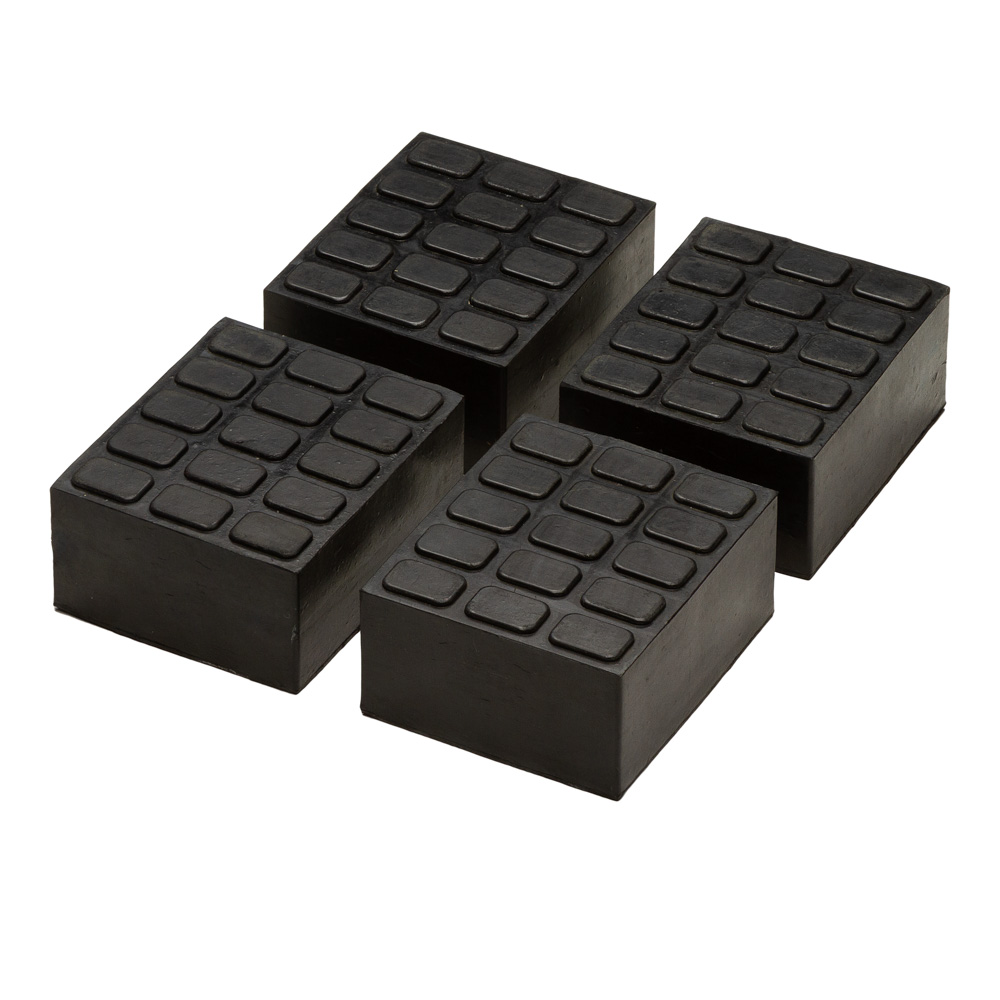

    • Including 4 picking points

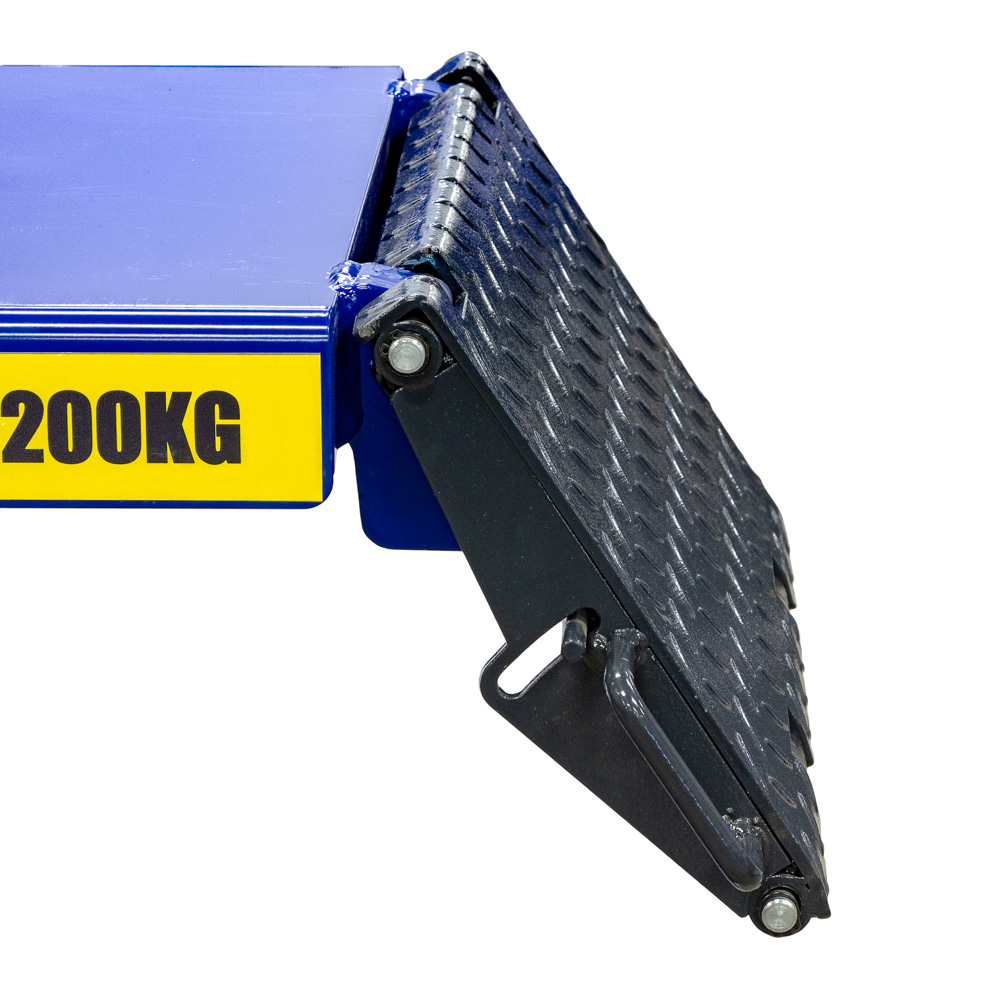

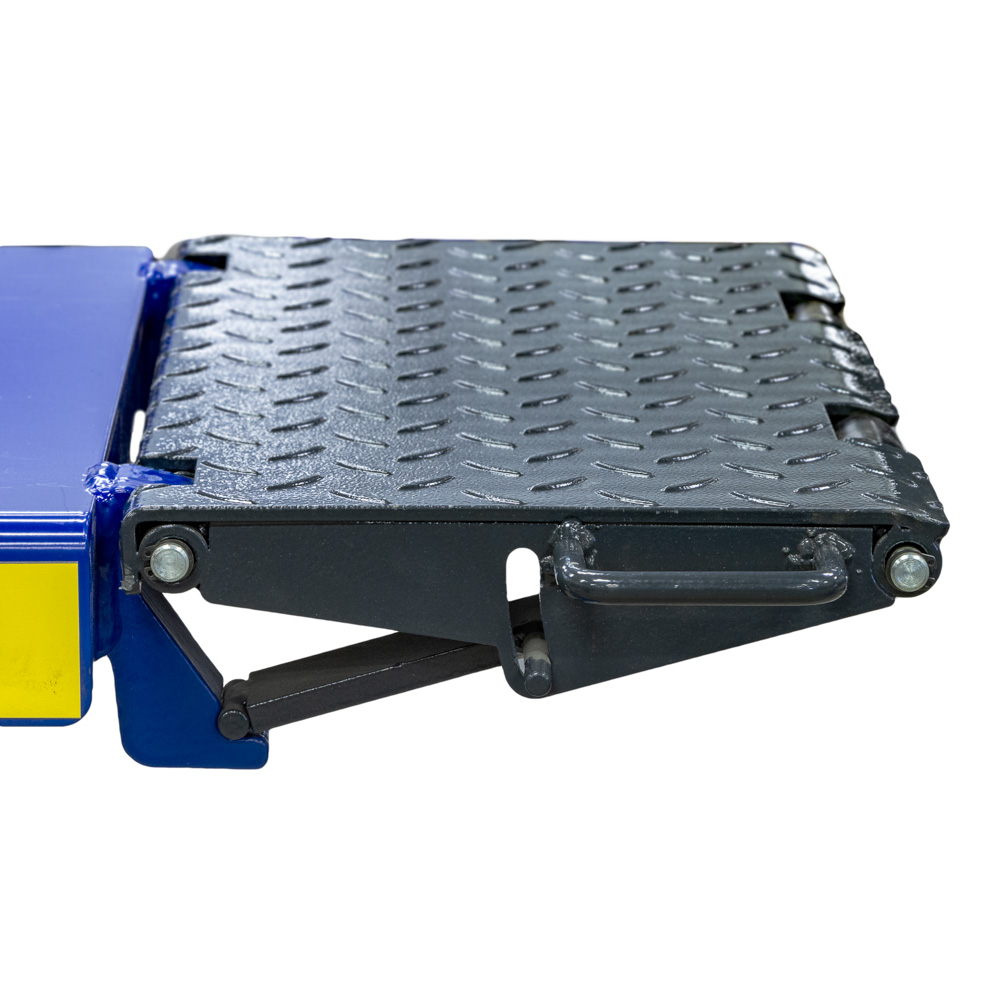

    • Adjustable ramps / extensions

    • Adjustable distance between scissor platforms to your own liking
