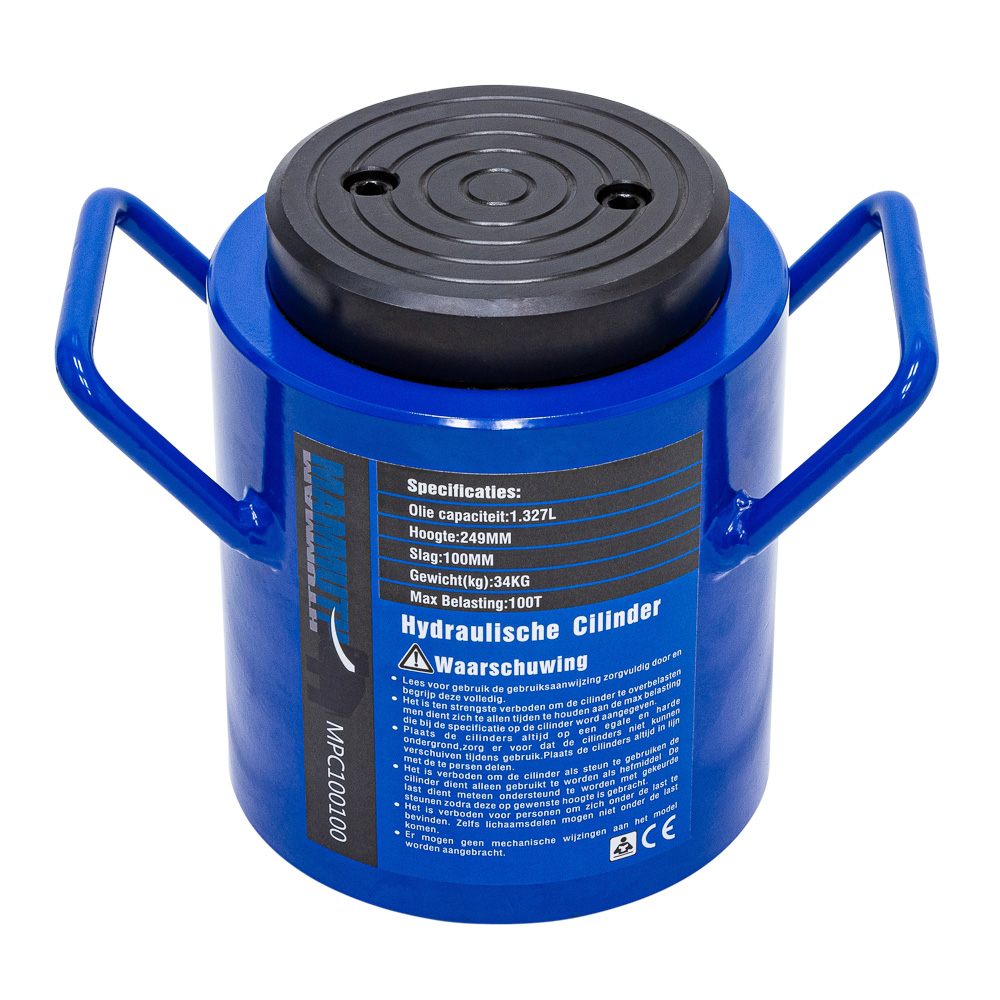

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
output = 100 ton
stroke = 100mm
effective area = 132,7cm^2
oil capacity = 1,327 L
height of product = 212mm
extended height = 349mm
outside diameter = 175mm
bore diameter = 130mm
plunger diameter = 110mm
thread for input oil port (ZG) = 3/8" - 22,5
saddle protrusion form plgr = 27mm
saddle is removable
max. pressure = 700bar

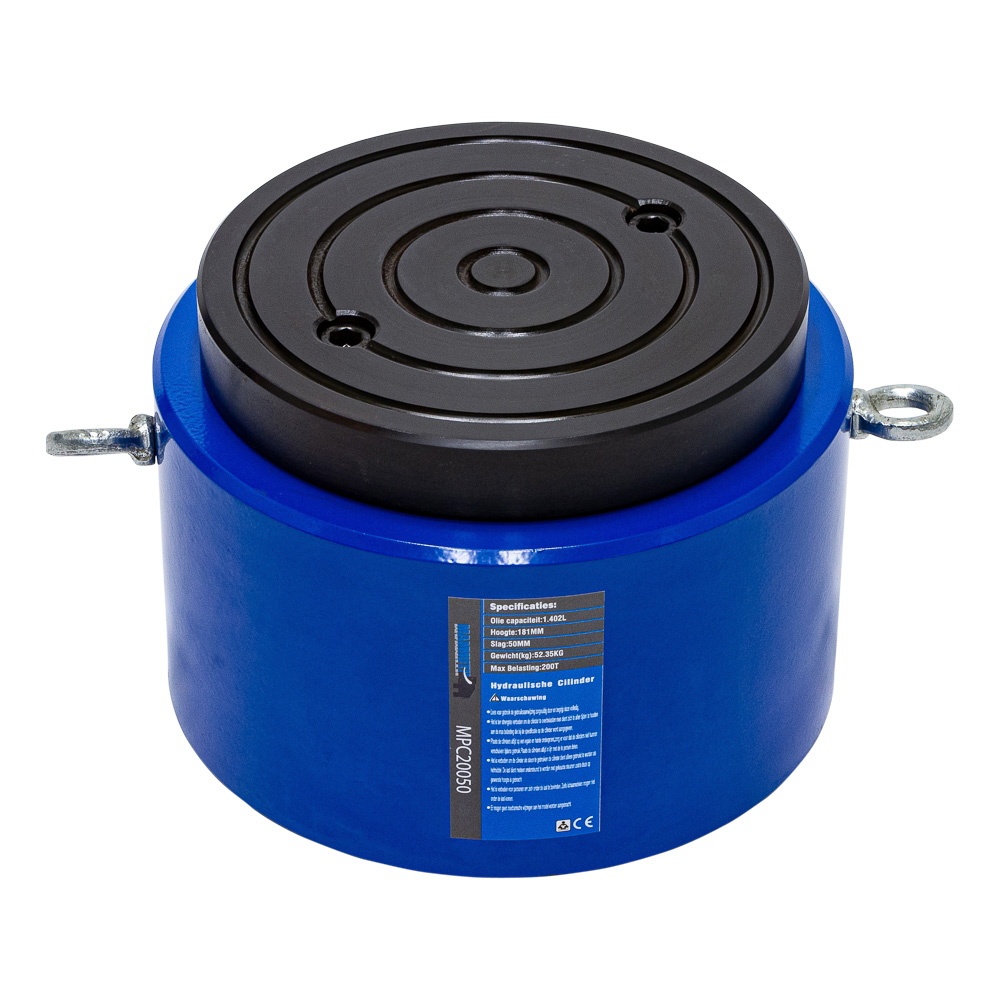

Hydraulikzylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 200 ton - stroke = 50mm - effective area = 280,4cm^2 - oil capacity = 1,402 L - height of product = 171mm - extended height = 231mm - outside diameter = 237mm - bore diameter = 189mm - plunger diameter = 169mm - thread for input oil port (ZG) = 3/8" - 25 - saddle protrusion form plgr = 31mm - saddle is removable - max. pressure = 700bar

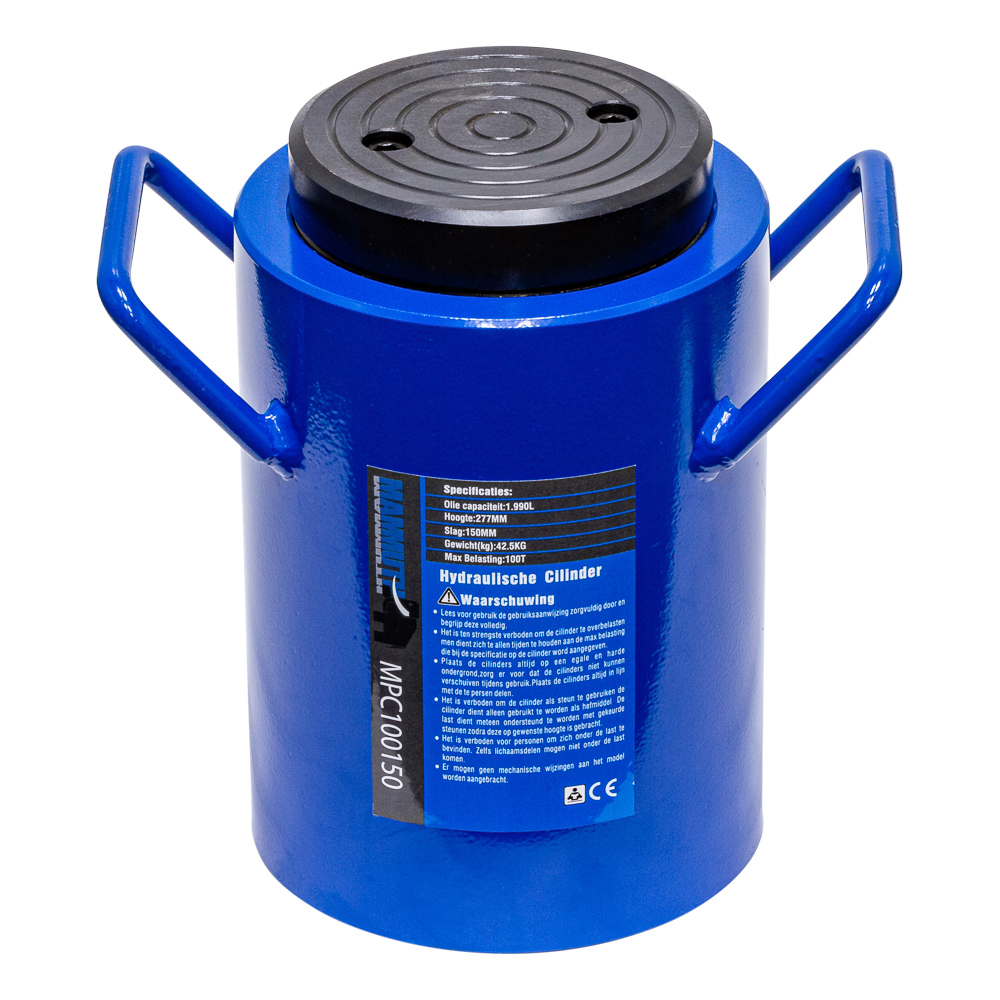

stroke = 150mm
oil capacity = 1,990 L
height of product = 262mm
extended height = 427mm
