Hydraulic cylinder

It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.

- output = 200 ton
- stroke = 50mm
- effective area = 224,2cm^2
- oil capacity = 1,402 L
- height of product = 156mm
- extended height = 206mm
- outside diameter = 237mm
- bore diameter = 189mm
- plunger diameter = 169mm
- thread for input oil port (ZG) = 3/8" - 19
- saddle protrusion form plgr = 2mm
- saddle is removable
- max. pressure = 700bar

Hydraulic cylinder

Hardy underlay to avoid axis break when it is overloading.
The surface of principle axis is finished with chrome plate.
Plunger has the function of retracting automatically.
Surface coating resists corrosion.

- output = 5 ton
- stroke = 100mm
- effective area = 9,6cm^2
- oil capacity = 0,071 L
- height of product = 183mm
- extended height = 283mm
- outside diameter = 40mm
- bore diameter = 30mm
- plunger diameter = 25mm
- thread for input oil port (ZG) = 1/4" - 18
- saddle protrusion form plgr = 13mm
- saddle is removable
- max. pressure = 700bar

Self fastening disc

This Rhodius tear-resistant velcro disc with 15-hole multi-perforation is suitable for processing of paints, lacquer and fillers.

Suitable for stainless steel, steel, non-ferrous metals, paint / filler and glass fiber reinforced plastic.

To be used on eccentric sanders.

Technical specifications:

• diameter = 150mm

• grain size SU = K80

• diameter holes = 10mm

• diameter middle hole = 14mm

car jack / workshop jack / car jack double plunger / garage jack dual pump / extra low car jack
This heavy duty garage jack from Mammuth has a dual pump lifting system, which gives the jack a higher lifting speed and a slower speed under load so that the load can be lifted safely.
This hydraulic jack is also equipped with a variable lowering speed that controls the lowering speed thanks to a double throttle valve.
Thanks to this system, the jack lowers slowly when a load is placed on it and automatically lowers faster when there is no weight on the jack. This makes the jack not only safe, but also efficient to use.
The jack is equipped with 2 fixed and 2 swivel wheels, which makes the jack very mobile.
The garage jack comes standard with a rubber pad (JG27RP) and a foam protector for optimum vehicle protection. The maximum jack lifting height is 455mm.
Technical specifications:

• capacity = 3000kg


• min. height = 125mm

• max. lifting height = 455mm

• diameter lifting platform = 110mm

• length pump rod = 990mm

Charger

This charger is suitable for the battery start booster BCP1224V.

• input = 100 - 200VAC

• output = 15V 2A

• length = 4m

• including 5A glass fuse

Tuyau d'air en caoutchouc
Les tuyaux d'air Blubird sont les plus légers et les plus résistants des tuyaux d'air en caoutchouc. Les tuyaux sont très flexibles dans des conditions météorologiques extrêmes de -45 à 87 degrés Celsius.
Caractéristiques:
- caoutchouc ultra léger et super résistant
- résistant à l'ozone: offre une protection contre les conditions météorologiques extrêmes, les abrasions et les plis
- poignée à 4 doigts pour une meilleure prise
- renforcement tressé en polyester

Remote control

Suitable for the electric winches CW02V12, CW04V12, CW08V12 and CW12V12.

• built-in

• 12V

• range = 15m

Tuyau d'air en caoutchouc
Les tuyaux d'air Blubird sont les plus légers et les plus résistants des tuyaux d'air en caoutchouc. Les tuyaux sont très flexibles dans des conditions météorologiques extrêmes de -45 à 87 degrés Celsius.
Caractéristiques:
- caoutchouc ultra léger et très résistant
- résistant à l'ozone: offre une protection contre les conditions météorologiques extrêmes, l'abrasion et ne se déforme pas
- renfort en polyester tressé
- résistant à l'huile : résistant à la graisse, à l'huile et au diesel
- sans raccord ni filetage

Rubber pad / rubber support pad

Suitable for Ravaglioli lifts.

- dimensions = 100 x 100 x 21mm
- inner diameter = 80mm

Headlight Adjuster

The headlight tester is suitable for testing the headlights of cars, motorcycles and heavier vehicles. This is for the purpose of inspection and correct adjustment of the headlights. The professional headlight adjustment device has a built-in laser and a digital lux meter. The height is easy to adjust and the device has a rotating mirror. The dip in the dim/fog light can be read with an accuracy of 0.1%, the total adjustment range is -0.2 / +8%. Also comes with a mobile undercarriage and can be used on rails and mobile.

• min. working height = 200mm

• max. working height = 1500mm

Features:

• plastic lens

• built-in laser

• mirror visor

• digital lux meter

• level

• 8% infinitely adjustable inclination angle

• sliding mechanism to adjust the height

• suitable for MOT

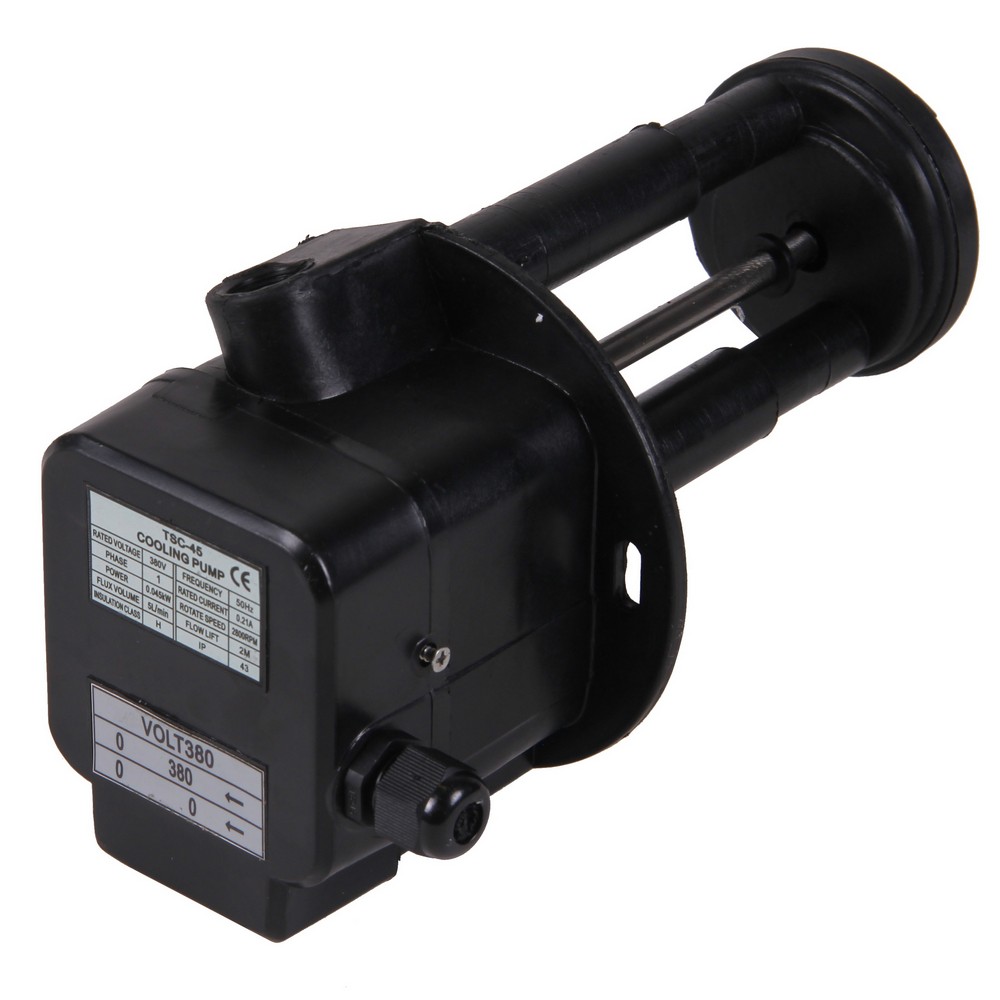

Cooling pump

Cooling pump for circular saw.

- voltage = 230V
- phase = 1
- power = 0,045kW
- flux volume = 5L/min
- frequency = 50Hz
- rated current = 0,21A
- rotate speed = 2800rpm
- IP 43

Flint striker / torch lighter

Bowl lighter for lighting gas burners.

Rubber lift block / rubber block universal

Suitable for all scissor lifts.

- dimensions = 160 x 120 x 120mm

Pulse MIG/MAG 500A synergetic inverter / welding machine

The Soldatech powered by HG MIG Double Pulse is one of the most versatile MIG devices on the market, equipped as standard with a solid trolley that can easily hold a 50L bottle. This synergetic machine makes it possible to easily perform various welding processes including Pulse, Double Pulse, MIG welding and also electrode welding.

The modern IGBT inverter technology ensures that the ML500YHGM delivers sustainable performance with more power and a high duty cycle. In addition, the ML500YHGM is equipped as standard with a powerful water cooler which prevents overheating in combination with a built-in fan and ensures that high-quality welding performance is guaranteed over a long period of time.

The Soldatech pulse invertor has a very extensive database that allows for 500 different programs with welding settings to be stored. This makes it easy to manage the ideal settings.

The mobile wire feeder unit is also equipped with a digital control panel on which the gas after-current settings, welding voltage and current, among other things, can be easily adjusted and read. The power source is also equipped with preprogrammed synergetic programs for aluminum, steel, stainless steel, CuMn, CuSiMn and CuZn materials.

Ideal for welding aluminum, stainless steel, carbon steel, low alloy steel and other alloys.
Each ML500YHGM comes standard with:

• MLT501M4T MIG/MAG torch Teflon-coated liner 4m


• Welding ground clamp with 3m 50mm² cable

• European dinse couplers 13mm

• Gas line including quick coupling 12m

• Intermediate cable bundle grommet 10m

• 5-pin 32A plug with 3m 4x4mm² cable

• Spare steel inner liner

• 10x wire feed rollers: (0.8 + 1.0 and 1.2 + 1.6)(0.8 + 1.0U and 0.8 + 1.0V and 1.2V + 1.6V)


Technical specifications:

• voltage = 400V - 3 phase

• frequency = 50/60Hz

• circuit breaker = 32A B-char


• input power = 27.5kVA


• no load voltage = 80V

• duty cycle (at 20°C ambient temperature) = 60% - 500A

• duty cycle (at 40°C ambient temperature) = 40% - 500A


• welding current range MIG/MAG = 30 - 500A

• welding current range MMA = 10 - 500A

• weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6mm

• cooling unit content = 6L

• protection class = IP21S

• dimensions = 1133 x 498 x 1508mm

• weight = 120kg

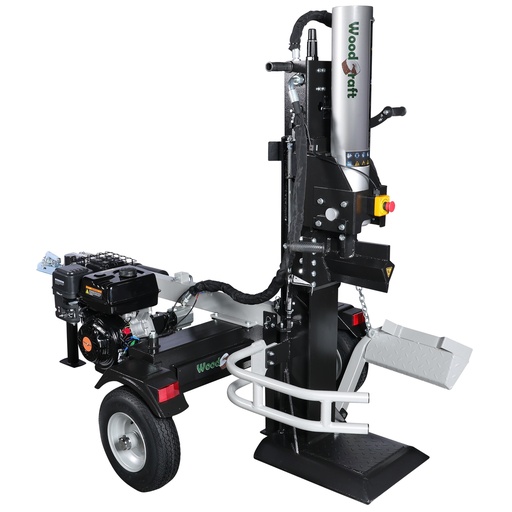

fendeuse de bûches / fendeuse à bois avec moteur à essence

Cette fendeuse de bûches à moteur à essence de Woodcraft n'a pas besoin d'un réseau d'alimentation externe et peut donc être utilisée n'importe où.
Avec une force de pression de 22 tonnes et une grande lame de fendage, vous pouvez facilement fendre des bûches jusqu'à 60 cm de long.
Le fendeur est très mobile et équipé de 2 pieds de support robustes pour plus de stabilité, ce qui facilite grandement le pliage du fendeur et assure également la stabilité pendant le fendage.
Grâce au support de verrouillage pliable, le bois fendu ne tombe pas immédiatement au sol. Cela garantit également qu'il est possible de fendre des bûches de grand diamètre.
Le vérin hydraulique est monté sur une goupille qui permet au vérin de coulisser lors du fendage, réduisant ainsi la pression sur la tige du vérin. Cela le rend moins sensible à l'usure et aux fuites.
Parce que la fendeuse à bois est positionnée verticalement, il ne faut pas beaucoup d'efforts pour glisser de grosses bûches dessous.
Ce produit est conforme à la nouvelle norme Nen 609-1/2017.
! Veuillez noter que cette fendeuse de bûches est destinée à une utilisation verticale uniquement !

Spécifications techniques:

Force de pression 22 tonnes
Temps de cycle 12.5s
capacité d'huile hydraulique = 24,6 L (non inclus !)
max. diamètre bois = 34,8 x 61cm
max. pression = 248 bars (3600 psi)
max. sortie de la pompe = 11gpm / 41.5L/min
taille de roue = 16"
type de moteur = YM168F19
puissance moteur = 6.5HP (196cc) / 3600rpm
équipé d'un clapet anti-retour
couteau à fendre = 175 mm en acier trempé
max. vitesse de remorquage = 72km/h

Portable sandblaster

This ZionAir powerful sandblaster is only suitable for blasting with soda abrasive. Blasting with soda (sodium bi-carbonate) is a soft way of blasting. Due to this low hardness, the abrasive is suitable for many different applications, without damaging the surface. Furthermore, soda is very environmentally friendly and completely soluble in water.
The blaster is equipped with a blasting gun with 3 ceramic nozzles (0,5mm, 1mm, 1,5mm), a hose of 1,5 meter, 2 solid wheels and a sturdy handle.

Specifications:

• tank capacity = 26 liters

• working pressure = 4 - 8,6 bar

• average air consumption = 350L/min

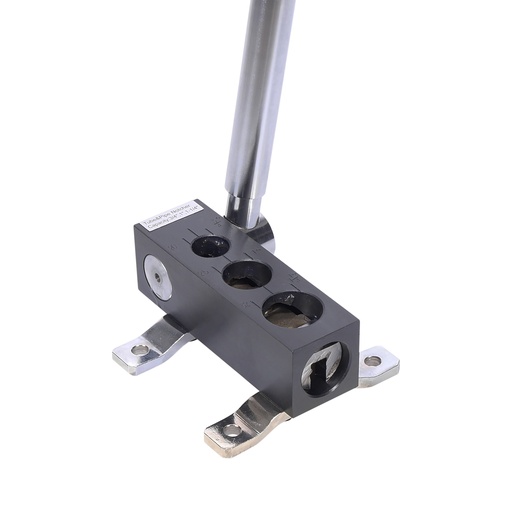

Pipe notcher

This precision pipe notcher is very suitable for making holes in pipes and tubes at different angles before they are welded.
Easy to mount on a work table and in particular to mount on drill presses.
The base can be rotated and together with the adjustable pipe holder it makes the notcher user-friendly in different angles.
Comes with a locking pin for the drill shaft.
The screw thread for the hole saw is M12 x 1,25. With an adaptor this is M16 x 1,50.

• pipe/tube capacity = 2" (50mm)

• spindle = 3/4" (19mm)

• angle adjustment = 0 - 60 degrees

• chromed steel

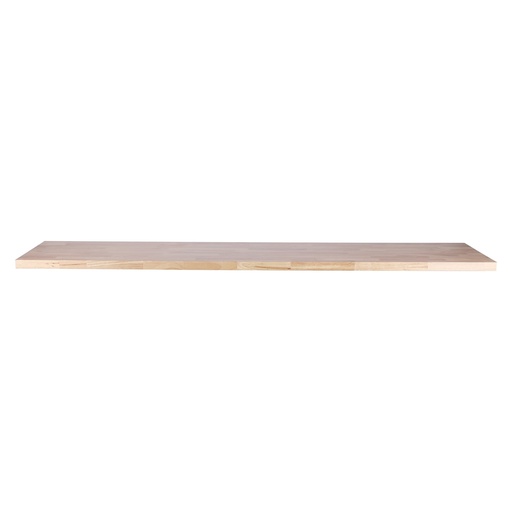

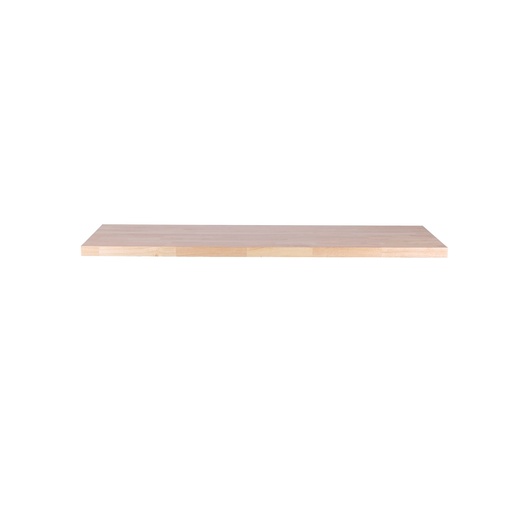

Worktop Solid beech wood triple

This solid beech worktop can be mounted on all base units from the expert series if they are assembled in threes. The worktop can be combined with other modules from the Expert series and is part of the following modules:

• BGMOD3, BGMOD4
• BGMODD, BGMODI, BGMODJ


Roller stand
This Cowley roller stand is adjustable in height and very suitable for the supply of heavy workpieces. Usable for both band saw and circular saws. Includes 7 solid and robust steel rollers.
It is possible to mount several roller stands to each other for more length.

Technical specifications:

• capacity = 800kg

• diameter rollers = 60mm

• length rollers = 360mm

• min./max. operation height = 650 / 1100mm

• length roller stand = 2050mm

Mobile base cabinet / workbench

This Cowley mobile base cabinet with cast iron top and T-slots is suitable as a workbench for both the electric and pneumatic tap arms. Due to the height of 895mm, it is ergonomic.

The cabinet has 3 T-slots, 4 swivel castors with brakes and 2 doors with storage space behind them. The cabinet is also provided with mounting holes for the tap arms in 2 corners.

Technical specifications:

• dimensions = 900 x 600 x 895mm

• width T-slots = 15mm

• heavy cast iron worktop

• 4 swivel castors with brakes
