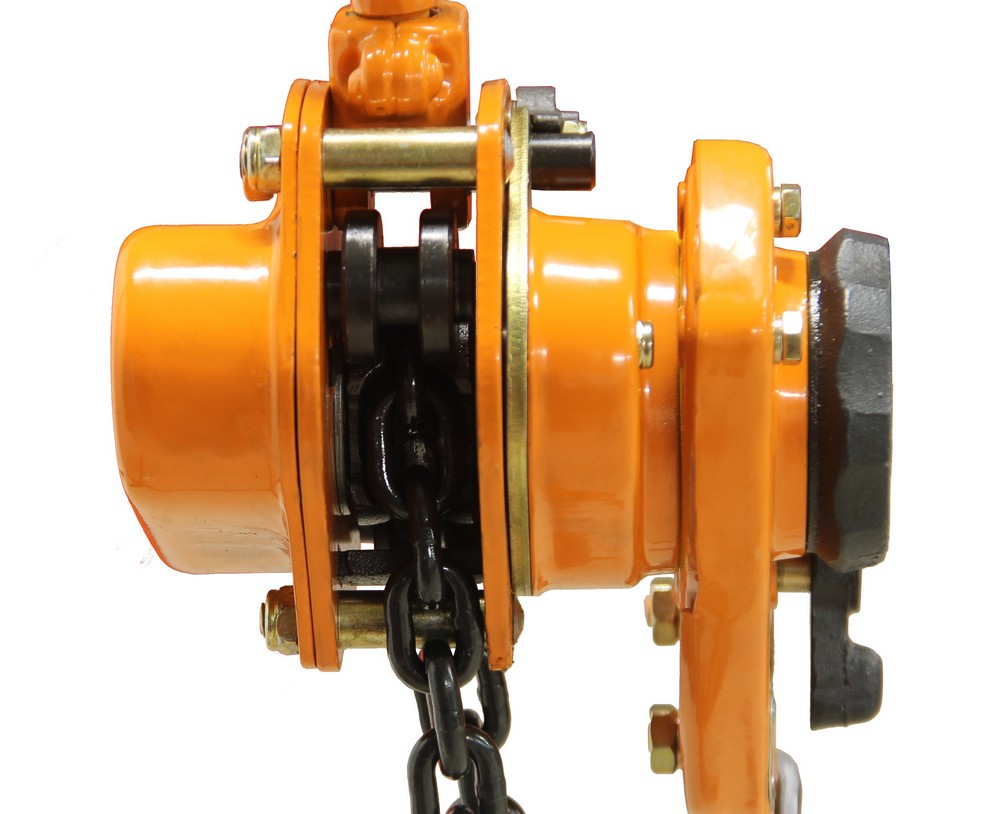

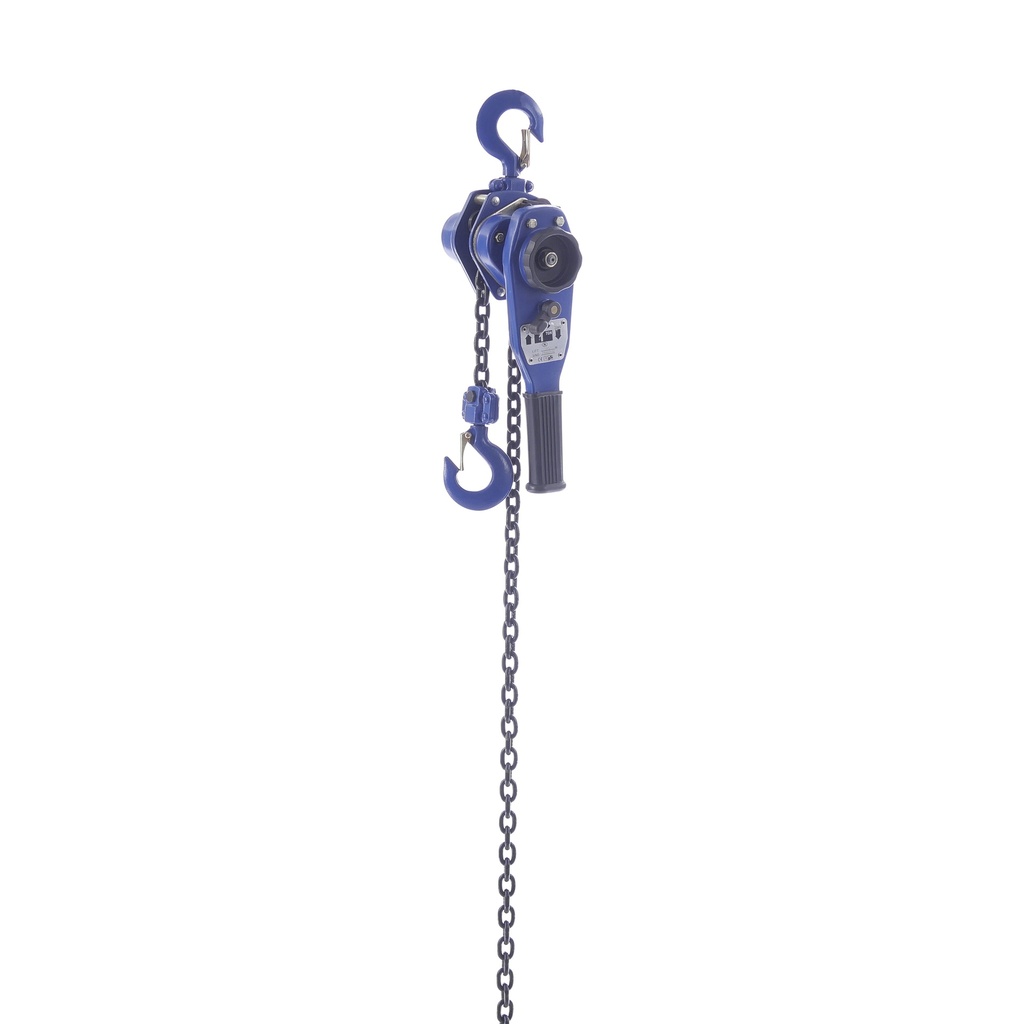

Lever hoist with arm

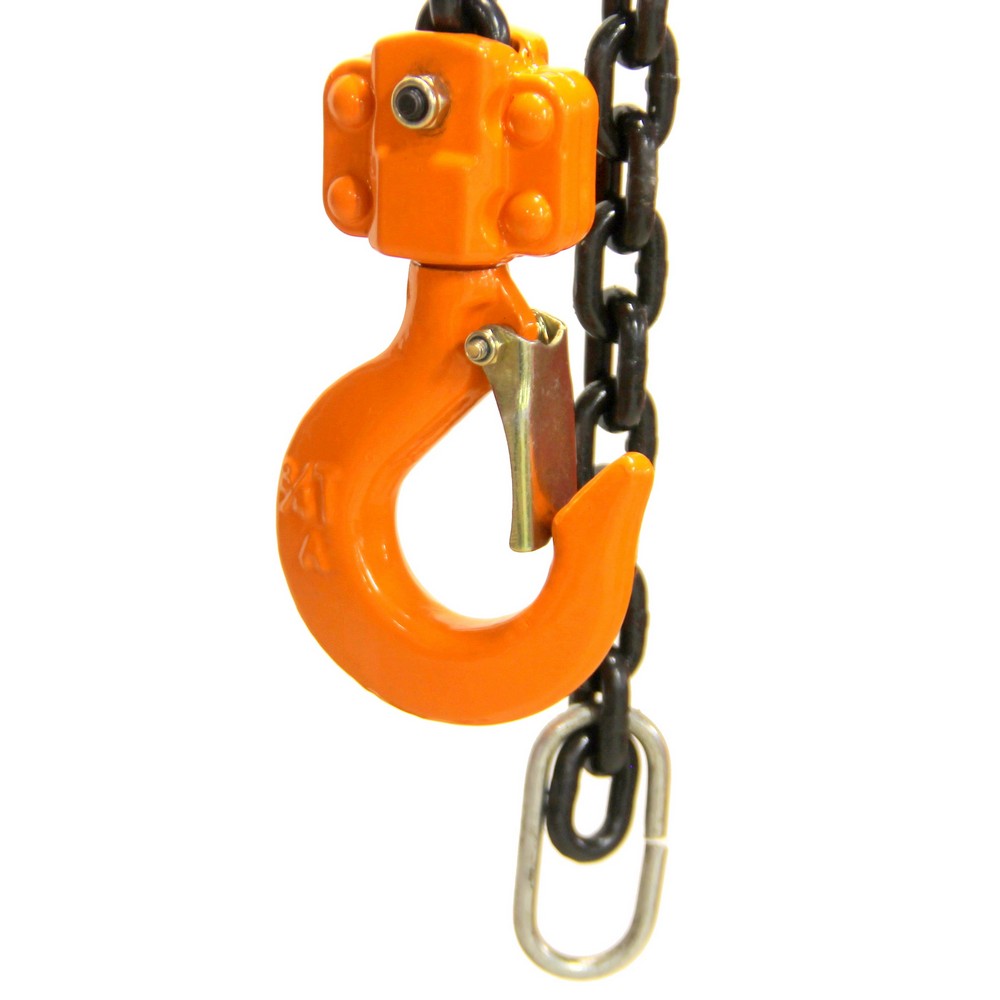

These robust Torso lever hoists are ideal for lifting operations. They are easy to operate and therefore pleasant to work with. The lever hoists are supplied with a heavy load chain. Both hooks (below and above) are 360 degrees rotatable and provided with a safety valve.
Technical specifications:
capacity = 1 ton
lifting height = 1,5m
max. distance between hooks = 1,77m
load chain = 6 x 30mm grade 80
load chain length = 1,5m
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 128 mm |
| Largeur du produit | 148 mm |
| Hauteur du produit | 330 mm |
| Poids du produit | 7,1 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 340 mm |
| Largeur du paquet | 180 mm |
| Hauteur du paquet | 160 mm |
| Poids du Colis | 7,83 Kg |
| Package Type: | |
| 72 Pcs |
