Back in stockOne of our goals is to have everything directly available from our stock, however sometimes a product might be temporarily sold out. On this page, you can find all items, which are back in our stock.
One of our goals is to have everything directly available from our stock, however sometimes a product might be temporarily sold out. On this page, you can find all items, which are back in our stock.
Flat cylinder This cylinder is suit for working in narrowness. The surface of the plunger is finished with a chrome plate.
output = 10 ton
stroke = 11mm
effective area = 11,3cm^2
oil capacity = 0,016 L
height of product = 47mm
extended height = 58mm
outside diameter = 81x56mm
bore diameter = 43mm
plunger diameter = 38mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
Flat cylinder double The stroke from the double cylinders is higher then the stroke from the single cylinders. This cylinder is suit for working in narrowness. The surface of the plunger is finished with a chrome plate. Plunger has the function of retracting automatically.
output = 50 ton
stroke = 64mm
effective area = 56,7cm^2
oil capacity = 0,113 L
height of product = 69mm
extended height = 135mm
outside diameter = 138x115mm
bore diameter = 95mm
plunger diameter = 85mm
stroke = 25mm
oil capacity = 0,022 L
extended height = 74mm
output = 20 ton
stroke = 26mm
effective area = 19,6cm^2
oil capacity = 0,041 L
height of product = 52mm
extended height = 80mm
outside diameter = 100x77mm
bore diameter = 60mm
plunger diameter = 53mm
Flat cylinder This cylinder is suit for working in narrowness. The surface of the plunger is finished with a chrome plate. Plunger has the function of retracting automatically.
output = 30 Ton
stroke = 12mm
effective area = 31,1cm^2
oil capacity = 0.05 L
height of product = 63mm
extended height = 75mm
outside diameter = 115x95mm
bore diameter = 75mm
plunger diameter = 63mm
The Press jaw M15 from Fluxon, for pressing with stainless steel and copper pipes. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.

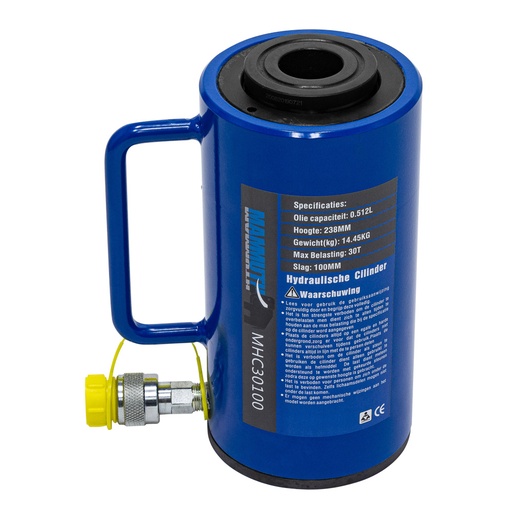

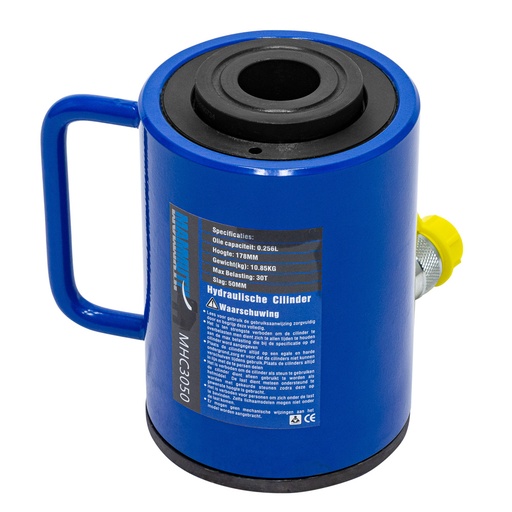

Hydraulic hollow cylinder This type plunger prevents blocking, caused by slight unbalanced loading of the piston. Dust ring prevents dust from entering the cylinder. The step-limited piston prevents over-travel. The wear ring increases the lifetime of the cylinder.
Draw stud
size thread =
suitable for the round punches = 16mm / 20mm / 22mm / 22,5mm / 25mm / 26,2mm / 27,5mm
The Press jaw M54 from Fluxon, for pressing with stainless steel and copper pipes. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.
The Press jaw U40 from Fluxon, for pressing with pex and multilayer pipe. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.

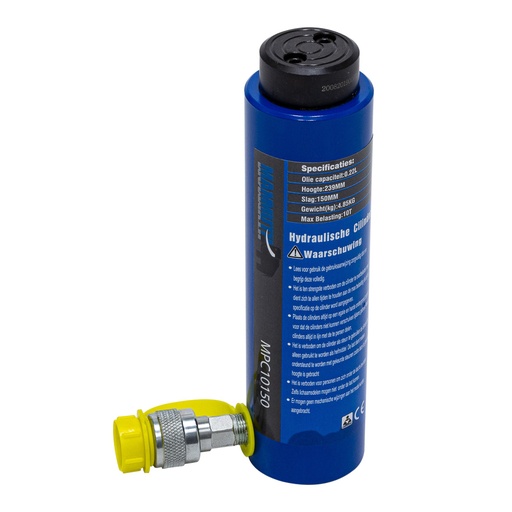

Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion. - output = 10 ton - stroke = 150mm - effective area = 15,2cm^2 - oil capacity = 0,228 L - height of product = 241mm - extended height = 389mm - outside diameter = 62mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 20 - saddle protrusion form plgr = 21mm - saddle is removable - max. pressure = 700bar
Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 10 ton - stroke = 50mm - effective area = 15,2cm^2 - oil capacity = 0,075 L - height of product = 106mm - extended height = 156mm - outside diameter = 73mm - bore diameter = 44mm - plunger diameter = 38mm - thread for input oil port (ZG) = 3/8" - 16,3 - max. pressure = 700bar
The Press jaw TH20 from Fluxon, for pressing with multilayer pipe. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.
The Press jaw TH32 from Fluxon, for pressing with multilayer pipe. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.
The Press jaw U50 from Fluxon, for pressing with stainless steel and copper pipes. This press jaw is made from hardened steel, ensuring durability and long-lasting performance.

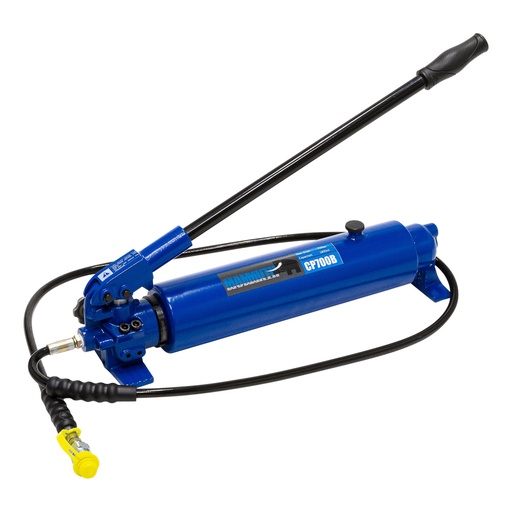

Hydraulic hand pump Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including 2M high pressure hose and couple plug. - max. output pressure: low pressure = 20 bar / 2MPa high pressure = 700 bar / 70MPa - output of the oil: low pressure = 13cc / 13ml high pressure = 2.3cc / 2.3ml - capacity of the oil = 2000ml

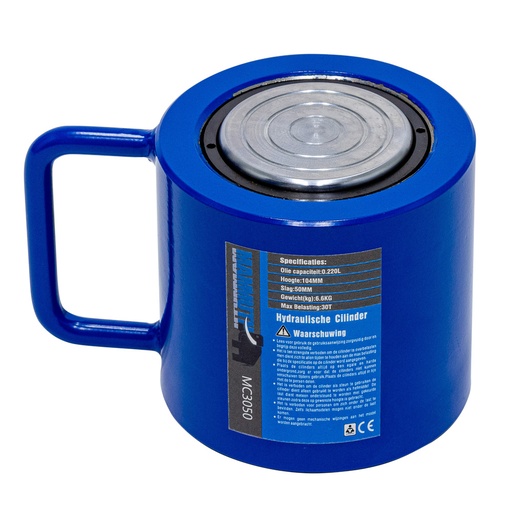

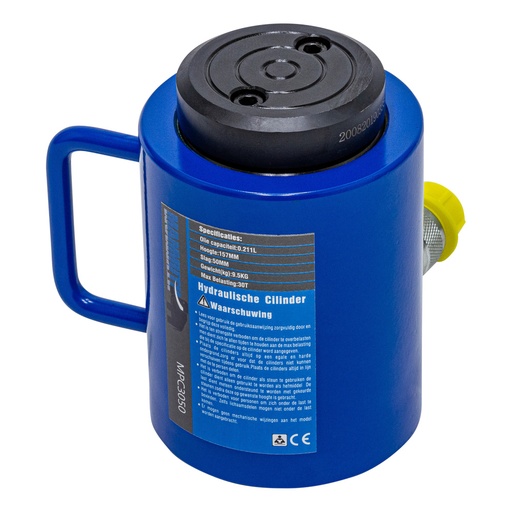

Hydraulic cylinder It has the characteristic of a low collapsed height. If the requirement of stroke needs to be higher, the ZFL cylinders are recommended. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. - output = 30 ton - stroke = 50mm - effective area = 31,1cm^2 - oil capacity = 0,22 L - height of product = 104mm - extended height = 154mm - outside diameter = 105mm - bore diameter = 75mm - plunger diameter = 86mm - thread for input oil port (ZG) = 3/8" - 19 - saddle protrusion form plgr = 2mm - saddle is removable - max. pressure = 700bar
Hole punch with loose handpump - punch range = diam. 21,5 - 61,5mm in 3,5mm steel 1,5mm in stainless steel - punchforce = 150KN - stroke = 25mm - weight = 7,1kg delivered in plastic box 4,4kg accessories: - round punch D-type = 22,5 - 28,3 - 34,6 - 43,2 - 49,6 - 61,5mm - square punch = 32x32mm - 1pcs draw stud (7/16" x 3/4") - 1pcs draw stud (3/4" x 3/4") - 1pcs spacer - spacer
Hydraulic cylinder Hardy underlay to avoid axis break when it is overloading. The surface of principle axis is finished with chrome plate. Plunger has the function of retracting automatically. Surface coating resists corrosion.
Technical specifications:
output = 150 ton
stroke = 200mm
effective area = 201cm^2
oil capacity = 4,020L
height of product = 316mm
extended height = 531mm
outside diameter = 207mm
bore diameter = 160mm
plunger diameter = 140mm
thread for input oil port (ZG) = 3/8" - 20
saddle protrusion form plgr = 31mm
saddle is removable
