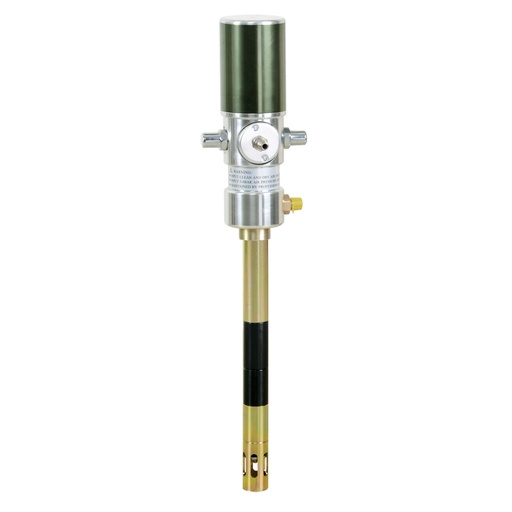

Air operated oil pump
This pump is suitable for dispensing grease with high pressure.
- drum application = 20 - 30kgs
- pressure ratio = 50:1
- air inlet pressure = 5 - 8 bar
- max fluid pressure = 8 bar
- air motor effective diameter = 63mm
- air consumption = 8 bar 120 L/min
- max. free flow rate = 800 g/min
- suction tube diameter = 30mm
- suction tube length = 370mm
- air inlet connection = 1/4'' quick plug 1/4'' NPT female
- oil outlet connection = 1/4''

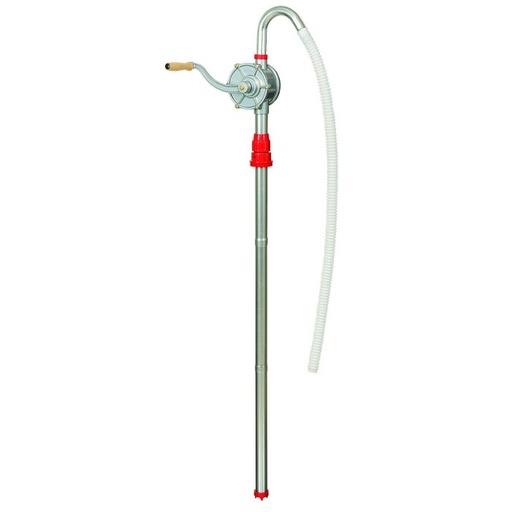

Handpump aluminum Compatible fluids: kerosene, light oil, diesel, bio diesel . For easy pumping, because the pump provides smooth and continuous transfer of diesel fuel. - 60ltr a minute at 90 rotations a minute - dip tube diameter = 36mm - dip tube = 1m - hose length = 0,8m - material = aluminum

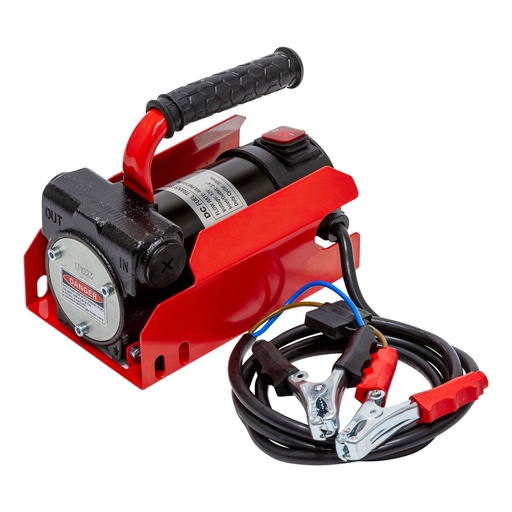

Diesel pump This pump includes 2m cable with alligator clamps - flow rate = 40 LPM - voltage = 12V - current = 24amp - suction height = 2m - max. pressure = 1,2bar - speed = 3200 t/min - duty cycle = 30min - inlet / outlet = 3/4'' - elektromotor protection class = IP55

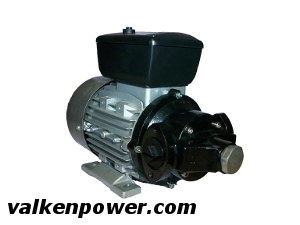

Diesel pump 230V 72LPM - motor = asynchronous, single phase, closed type, self-ventilated - flow rate = 120L/min - voltage = 230V - power = 1100 watt - suction height = 2,5m - max. pressure = 2bar - 3360RPM - inlet / outlet = 1''

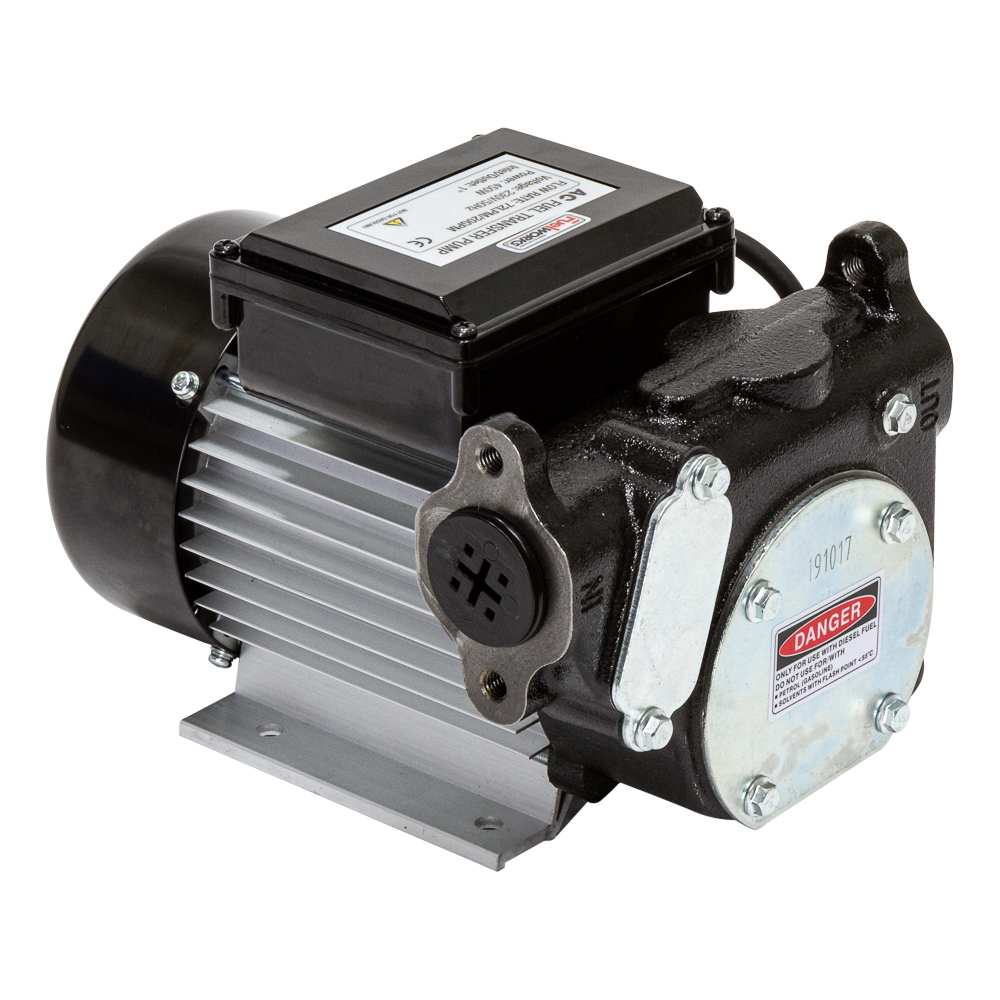

Diesel pump
motor = asynchronous, single phase, closed type, self-ventilated
flow rate = 72L/min
voltage = 230V
power = 450W
suction height = 2,5m
max. pressure = 1,8 bar
3360rpm
inlet / outlet = 1'' straight screw thread
self-priming
Diesel pump This pump includes 2m cable with alligator clamps - flow rate = 40 LPM - voltage = 24V - current = 13amp - suction height = 2m - max. pressure = 1,2bar - speed = 3200 t/min - duty cycle = 30min - inlet / outlet = 3/4'' - elektromotor protection class = IP55

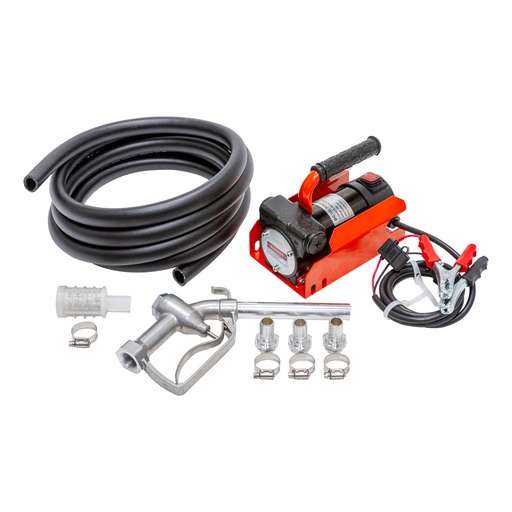

Diesel pump set Complete kit with hose, clamps, manual dispensing nozzle and various accessoiries - flow rate = 40 LPM - voltage = 24V - current = 13amp - suction height = 2m - max. pressure = 1,2bar - speed = 3200 t/min - duty cycle = 30min - inlet / outlet = 3/4'' - elektromotor protection class = IP55

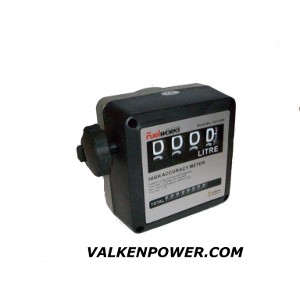

Fuel meter Reliable, easy to install and simple to calibrate - max. werkdruk = 3,5 bar - 4 numbers subtotals - 8 numbers totals and subtotals - inlet / outlet = 1''
Diesel pump set Complete kit with hose, clamps, manual dispensing nozzle and various accessoiries - flow rate = 40 LPM - voltage = 12V - current = 24amp - suction height = 2m - max. pressure = 1,2bar - speed = 3200 t/min - duty cycle = 30min - inlet / outlet = 3/4'' - elektromotor protection class = IP55

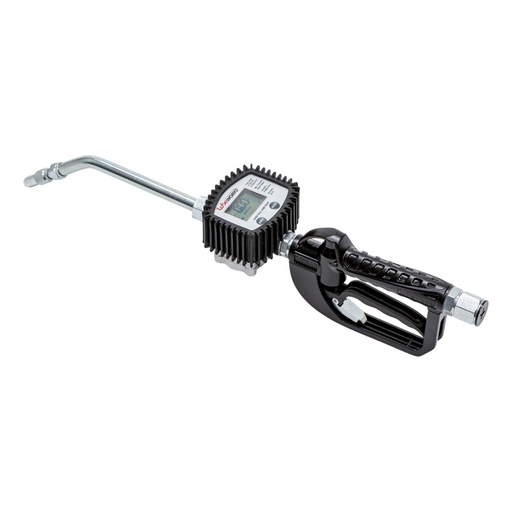

Digital oil control valve Rubber protection to absorb shock prolonged lifetime Dispenses in liter, gallon, pint and quart 5-digit easy to read LCD display powered by 3V battery Low battery indicator equipped.
inlet = 1/2'' female
flow rate = 1 - 35L/min
pressure range = 0-5,50 Bar
viscosity = 8 - 5000mPas
battery = 1 *3V CR2
temperature = max. 60 degrees Celcius

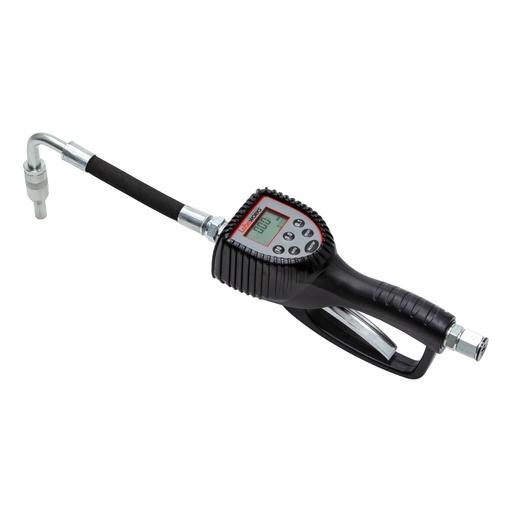

Digital oil control valve with auto-stop By using the preset function, the nozzle will stop delivering oil on the desired moment. Rubber protection to absorb shock prolonged lifetime Dispenses in liter, gallon, pint and quart 5-digit easy to read LCD display powered by 3V battery Low battery indicator equipped.
accuracy = - 0,5%
battery = 4 AA size 1,5V batteries

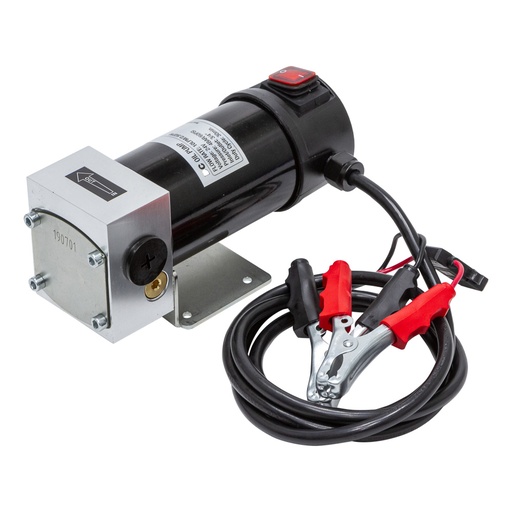

Electric oil pump / gear pump / crankcase pump
Self-priming electric gear pump with a working pressure of 4 bar. Suitable for engine oil, gear oil, lubricating oil and hydraulic oil.
Specifications:
viscosity = 3000SUS / 500cSt
protection grade = IP55
suction hight = 2m
capacity = 10L/min
voltage = 12V
working pressure = 4bar
inlet / outlet = 3/4''
max temperature = 90 degrees Celcius

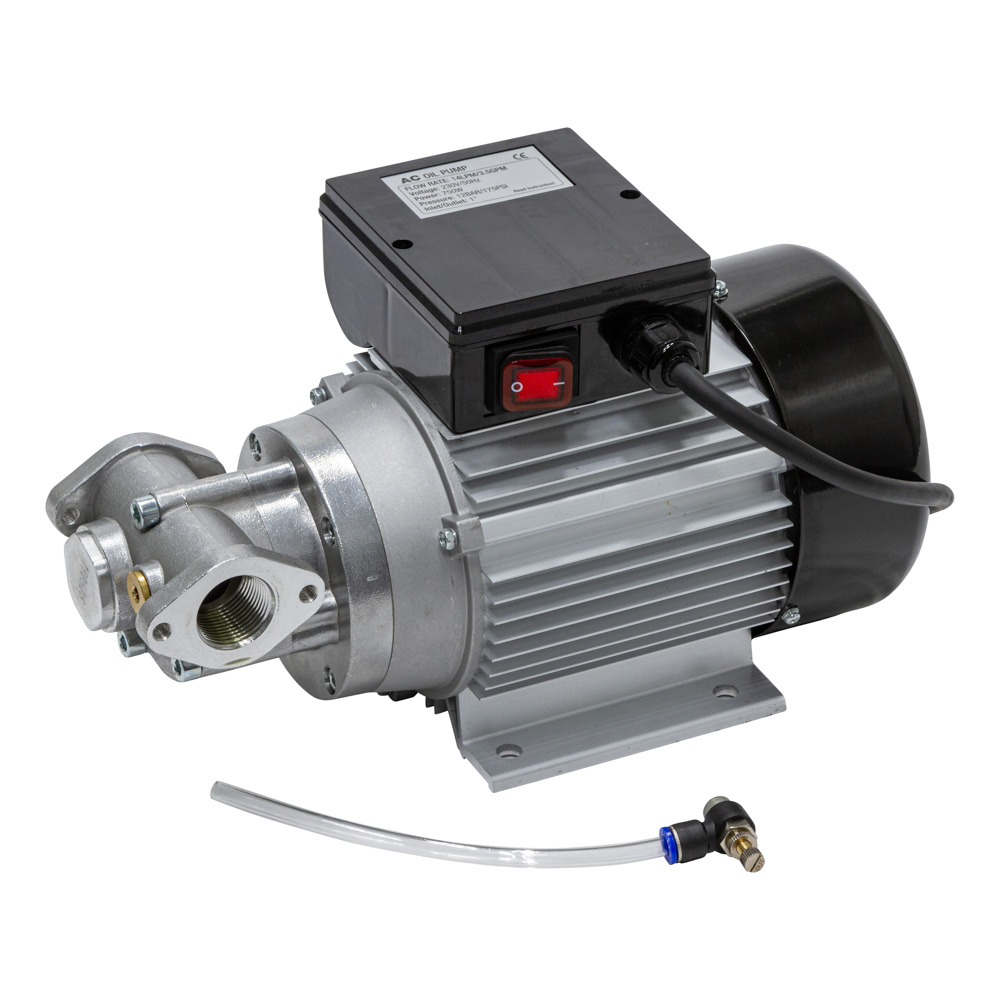

Self-priming electric gear pump with a working pressure of 12 bar. Suitable for engine oil, gear oil, lubricating oil and hydraulic oil.
viscosity = 9269SUS / 2000cSt
capacity = 14L/min
power = 750W
working pressure = 12bar
inlet / outlet = 1"
voltage = 24V
