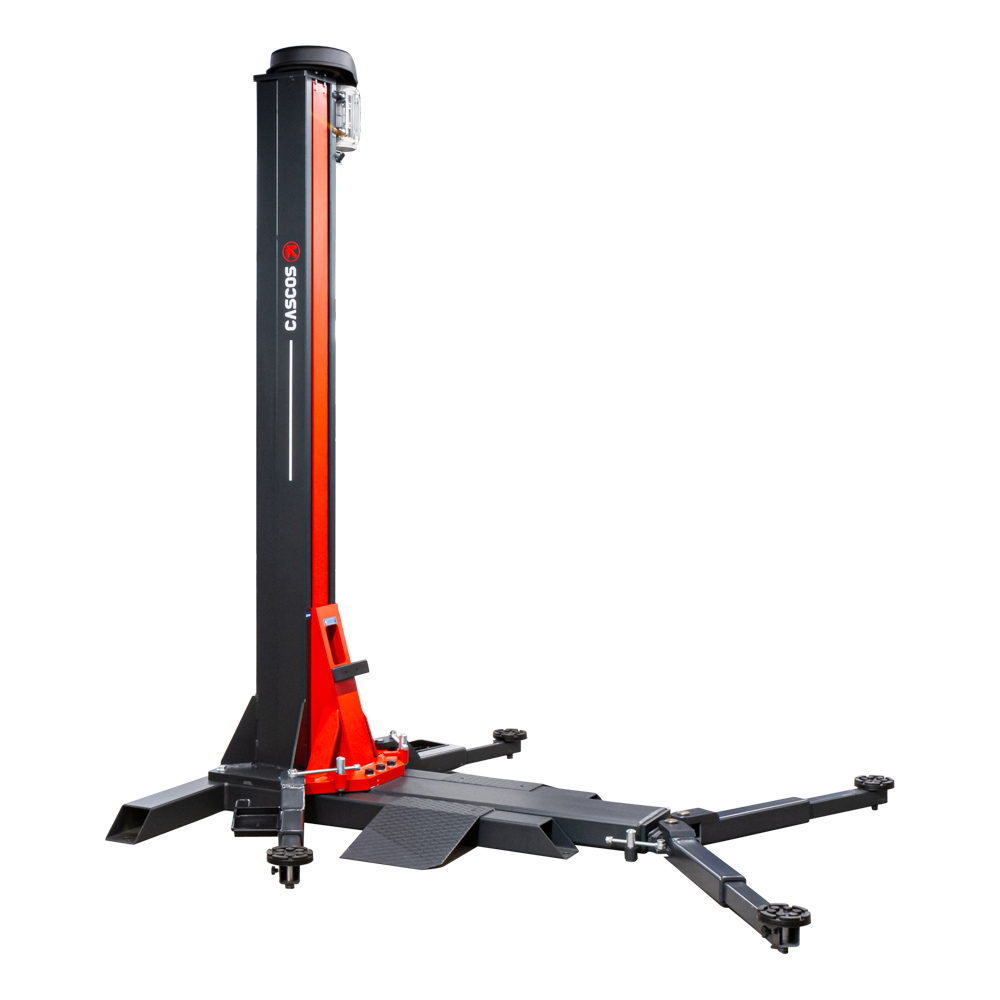

Single post lift 2500kg Cascos

One pole lift / spindle lift / car lift

Cascos car lifts are from 100% European production. Cascos has more than 50 years of experience in vehicle lifts, which results in a very reliable and extremely strong end product.
At Cascos lifts, three key words are central, namely: Reliability, functionality and safety.

The robust construction of the lifts and the high quality of the components ensure high reliabilty and low maintenance costs. Due to the complete symmetry, the vehicle can be placed in any direction. This in combination with the extendable arms ensures that maximum load is possible in every position.
The robust columns, the steel bearings, but especially the safety nuts ensure a very high safety.

Furthermore, the Cascos two pole lifts have a number of very thoughtful features:

• SlenderTec solid columns: Very robust, 10 to 23mm thick.

• Extendable symmetrical arms: Lifts have been developed to withstand the maximum load at any angle and all lengths.

• Large spindle diameter: 45mm, the largest spindle on the market. Provides less friction and therefore less wear on the working nut. Less lubrication is required.

• Steel bearings: Less wear and compared to nylon systems because they last longer. They also provide support for the columns.

• Safety nuts: Extra sturdy for lifts with a capacity up to 5500kg.

This professional single post lift has a particularly strong and solid column and a solid base. This makes the lift suitable for all types of mechanical, body, paint and maintenance jobs. Due to its compact design, the single post lift is ideal for small garages and workshops with maximum versatility.

The lift has the following features:

• Single motor: 3-phase, 400V

• Electromagnetic operation

• Stable, sturdy base

• Symmetrical arms: 4 arms that extend 2 time

• Rubber protectors for opening doors

• Protection of the spindle that prevends the operator from getting durty by touching the column

Specifications:

• capacity = 2500kg

• voltage = 400V / 3-fase

• motor power = 3kW

• minimum height = 125mm

• maximum height = 1990mm

• lifting time = 45 seconds

• distance between the columns = 2640mm

• height of the columns = 2435mm

• range of front double arms = 582 - 785mm

• range of rear double arms = 700 - 980mm

• total weight = 600kg
