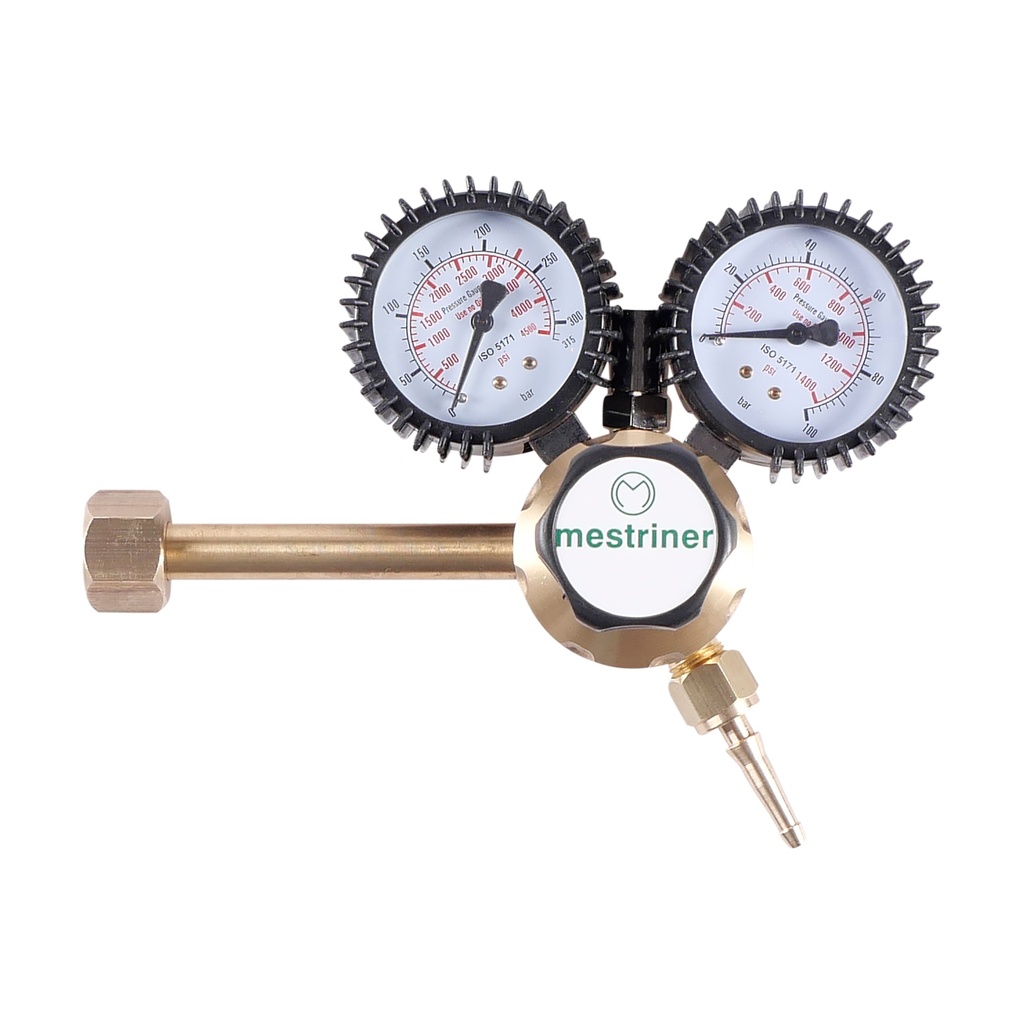

Nitrogen reduction valve 60 BAR
This regulator has a high delivery value at the outlet and is used in centralization and on cylinder packs for industrial applications at medium pressure.
Feautures:
- Entirely made of pressed brass (5t8)
- Meets the uni and iso 2503 standard
- Suitable for compressed gases up to 230 bar
- Equipped with a pressure relief valve
- Gases indicated: oxygen - air - nitrogen - co2 - argon
- Press. max e kg / cm 2 200
- Press. max h kg / cm2 20 bar
- Flow rate m3/h 75
Dimensions du produit :
| Length | 195 mm |
|---|---|
| Width | 170 mm |
| Height | 130 mm |
| Weight | 1,565 kg |
Dimensions de l'emballage :
| Length | 195 mm |
|---|---|
| Width | 170 mm |
| Height | 130 mm |
| Weight | 1,68 kg |
