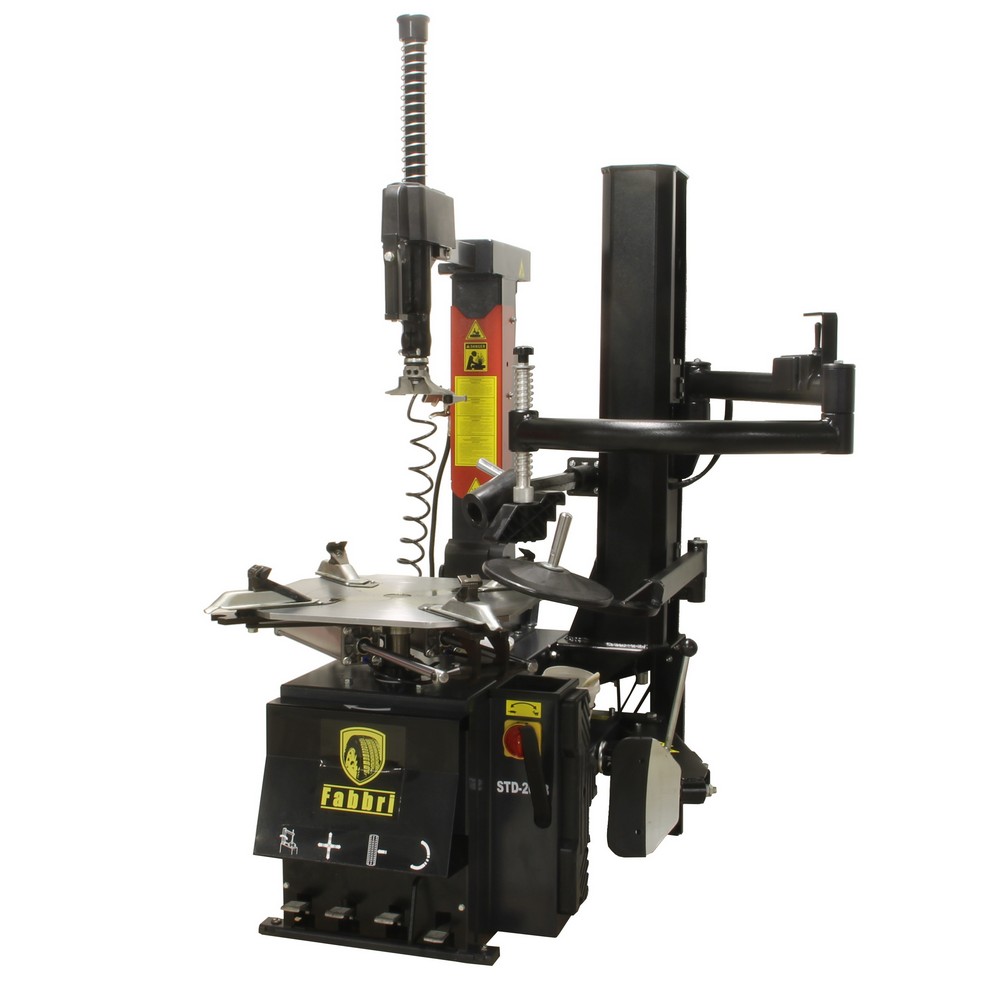

Reifenmontagemaschine / Reifen Montagegerät mit Montagearm Profi
Full-automatic tyre changer equipped with stabile tilting post for intensif use. The turning table is able to work at 2 different speeds, ideal for mounting wide and rigid wheels.
- external rim clamping = 10 - 22''
- internal rim clamping = 12 - 24''
- max. wheel diameter = 1000mm (39'')
- max. wheel width = 330mm (13'')
- bead breaker cylinder force at 10 bar = 2500kg
- operating pressure = 10bar (145psi)
- max. spindle torque = 1200Nm
- max. inflating pressure = 3,5 bar
- voltage = 400V
standard accessories:
beading lifting tool, air purifier, accessoires set for alloyrims, gun inflator, locking wedge protector, connector
INCLUDING HELPER ARM HP1
Dimensions du produit :
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 0,0 kg |
Dimensions de l'emballage :
| Length | 1 080 mm |
|---|---|
| Width | 900 mm |
| Height | 1 390 mm |
| Weight | 404,00 kg |
