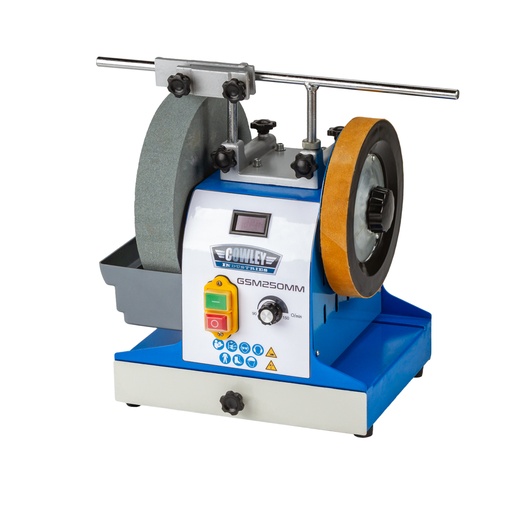

Grinding machine / table grinding machine / tool grinding machine
Ideal for sharpening cutting tools that have become, such as axes, chisels, knives and other cutting tools. Do not use the machine for polishing / sanding materials that are dangerous for the health or cause dust, such as wood, stone etc.Specifications:
voltage = 230V / 50Hz / 1 phase
motor = 200W
engine speed = 1450rpm
wielsnelheid = 90 - 150rpm
diameter of the grinding wheel = 250 x 50 x 12mm
diameter of the leather stropping wheel = 200 x 30 x 12mm

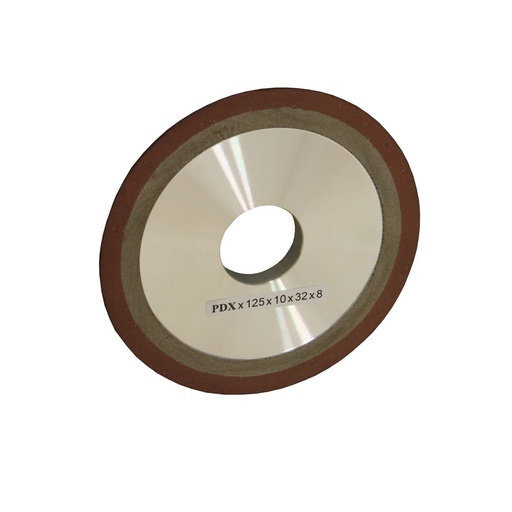

Saw blade for grinding machine
Suitable for the grinding machine ZBS8D70.

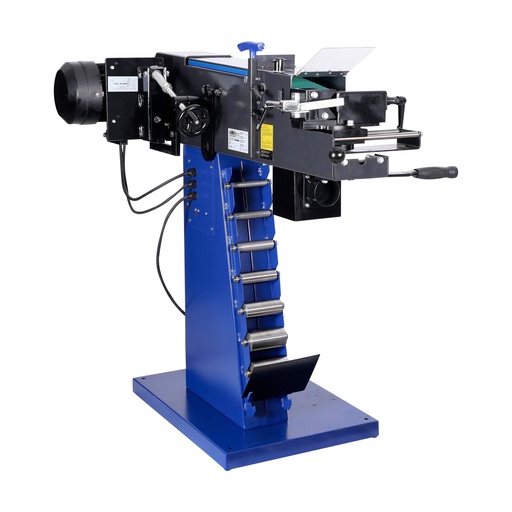

Profile and pipe notcher / belt grinder
This Cowley combi machine is a mulitfunctional grinding machine which is suitable for the grinding of front ends of tubes and profiles, face and round grinding. The pipe notching is done at the front of the machine, face grinding on top and round grinding at the back.
The combi machine comes standard with the following grinding rollers: 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 76mm.
angle adjustment of 30 to 90°
seperate emergency stop and separate start/stop button
can be connected to a dust extraction
belts and grinding rollers are easy to replace
voltage = 400V / 50Hz
motor power = 2,5 / 3,3kW
motor speed = 1400 / 2800rpm
belt speed = 23,5 / 47m/s
grinding diameter = 20 - 76mm
adjustable angle = 30 - 90°
measurements belt = 100 x 2000mm

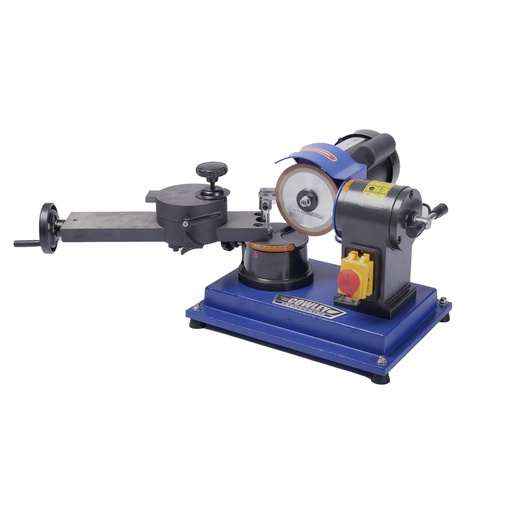

Blade grinding machine
This Cowley blade grinding machine is suitable for grinding metal saw blades with a diameter between 80 and 700mm. All blades from table saws, circular saws and saw tables that meet this size can be grinded with this machine. A diamond grinding wheel with a diameter of 125mm is included. Also 4 adapters for saw blades are included with a diameter of 20mm, 22mm, 30mm and 37,5mm.
voltage = 230V / 50Hz
motor vermogen = 250W
speed = 2850rpm
motor tiltable = left and right 20°
adjustable working table = 30° left and 45° right
