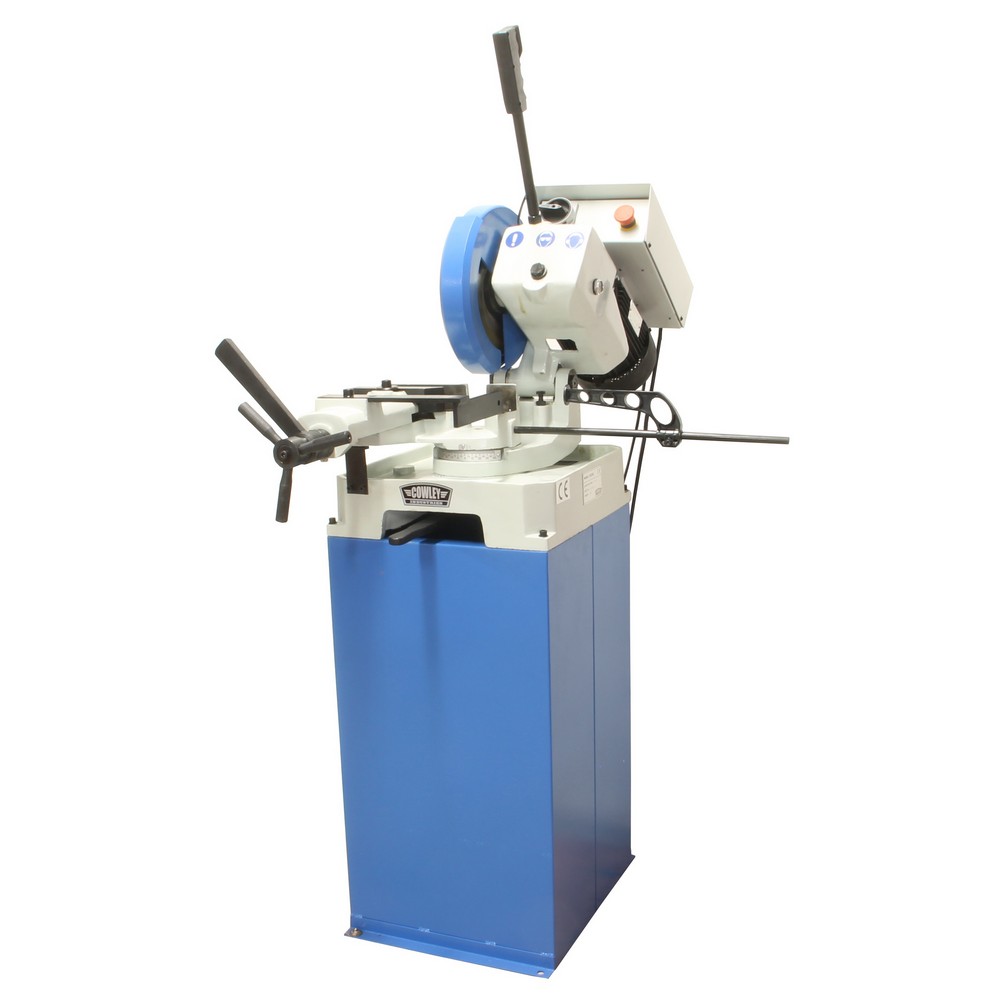

Metal circular saw / sawing machine
This Cowley circular saw is ideal for cutting and shortening round or rectangular metal materials. This robust model features the following useful features
Double clamp
Angle of the clamp can be adjusted
Rotatable vise design
Roll to support the material
Rotatable head 45 degrees
Material stop
The machines comes with a saw blade of 250mm, a base of 330 x 460 x 770mm and a cooling unit.
Specifications:
saw blade diameter = 250mm
axle diameter = 32mm
cutting capacity circular 90 degrees = 60mm
cutting capacity rectangular 90 degrees = 75 x 45mm
cutting capacity circular 45 degrees = 55mm
cutting capacity rectangular 45 degrees = 45 x 45mm
blade speed = 42rpm
max. opening clamp = 100mm
motor power = 1,1kW
voltage = 400V
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 430 mm |
| Largeur du produit | 900 mm |
| Hauteur du produit | 1 600 mm |
| Poids du produit | 126,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 860 mm |
| Largeur du paquet | 570 mm |
| Hauteur du paquet | 760 mm |
| Poids du Colis | 144,00 Kg |
| Package Type: | |
| 1 Pcs |
