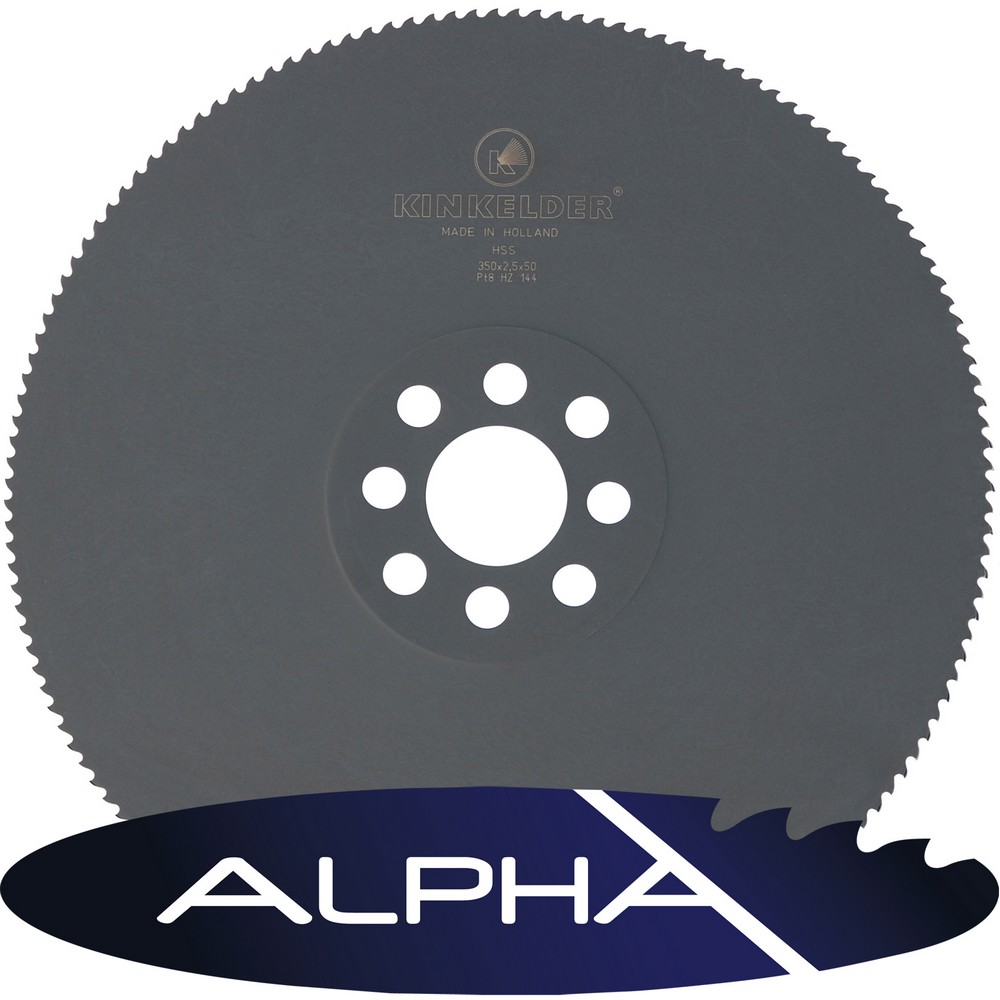

Saw blade
The steam treated Alpha saw blade has a blue-black oxide surface layer for a longer blade life compared to the uncoated saw blade. It is mainly being used for cutting steel on manual and semi-automatic sawing machines.
Materials: All materials like tubes, profiles and solids. All structural steels and non-alloy tool steel with a tensile strength up to 700 N / mm².
Parameters: suggested cutting speed: 30 - 60 m/min
The HZ-tooth form is most suitable for cutting solids and thick walled tubes. The roughening tooth is bevelled on both sides and is between 0,2 and 0,3mm higher than the square finishing tooth. Tooth pitch higher than 4mm.
- diameter = 250mm
- kerf = 2mm
- borehole = 32mm
- tooth pitch = T5
- amount of teeth = 160
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 250 mm |
| Largeur du produit | 250 mm |
| Hauteur du produit | 2 mm |
| Poids du produit | 0,67 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 250 mm |
| Largeur du paquet | 250 mm |
| Hauteur du paquet | 2 mm |
| Poids du Colis | 0,70 Kg |
