Car winch / bumperwinch
Torso winch reliable and strong bumperwinches especially for atv/utv/trailer.
The winches are suitable for any application within the pulling range and its capacitance.

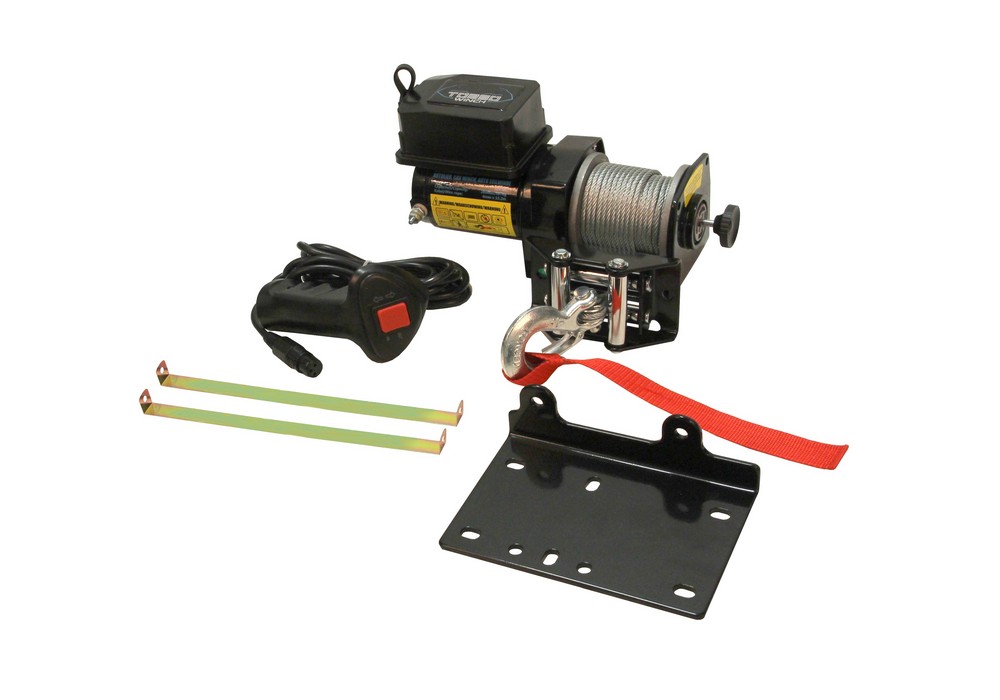

Torso winches are standard equiped with the following features:
- 4way fair load roller, for excellent cable mobility.
- mounting plate, ensures correct mounting of the winch.
- control switch, with 3mtrs cable length.
- clevis pinned/latched hook.
- 1.5mtr battery conection cable .
- hand operated clutch for free spooling.
- automatic brake.
- 1.5t pulley block.
Wireless remote optional, see section related products.
The pulling force of the winch is an approximation, actual pulling force depends on the surface , slope, weather and rolling weight.
Technical specifications:
- 12V single line
- rated pull = 2000lbs (900kg)
- gear reduction ratio = 153:1
- Serie-wound motor = 12V 1HP
- drum size = 32x73mm
- cable length = 15m
- cable diameter = 4mm
- line pull = 0kg, 227kg, 454kg, 680kg, 900kg
- line speed = 3.2mpm, 2.8mpm, 2.3mpm, 1.6mpm, 0.6mpm
- amp draw = 12A, 30A, 60A, 90A, 120A
- layer of cable = 1, 2, 3, 4, 5
- pull per layer = 900kg, 740kg, 620kg, 540kg, 470kg
- cap per layer = 2m, 4.3m, 7.2m, 10.6m, 15m
- mounting dimensions heart to heart = 125 x 75mm
(not suitable to pull up cars, for this we advise a minimum of 8000lbs / 3600kg)
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 283 mm |
| Largeur du produit | 106 mm |
| Hauteur du produit | 106 mm |
| Poids du produit | 6,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 410 mm |
| Largeur du paquet | 260 mm |
| Hauteur du paquet | 235 mm |
| Poids du Colis | 8,00 Kg |
