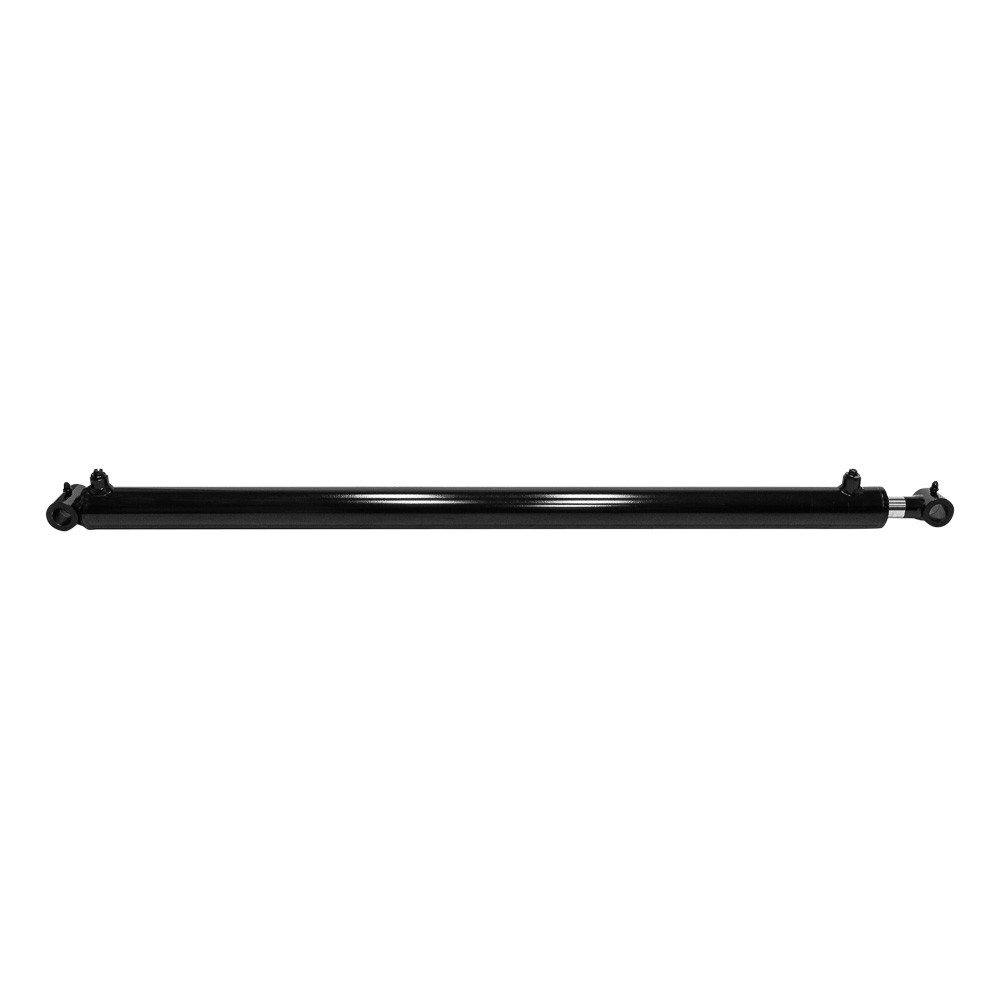

Hydraulic cilinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 2'' / 50,8mm
stroke = 40'' / 1016mm
max. push load = 4281kg
max. pull load = 2608,8kg
shaft = 1-1/18'' / 28,6mm
retracted length = 48'' / 1219,2mm
Dimensions du produit :
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 15,0 kg |
Dimensions de l'emballage :
| Length | 0 mm |
|---|---|
| Width | 0 mm |
| Height | 0 mm |
| Weight | 16,80 kg |
