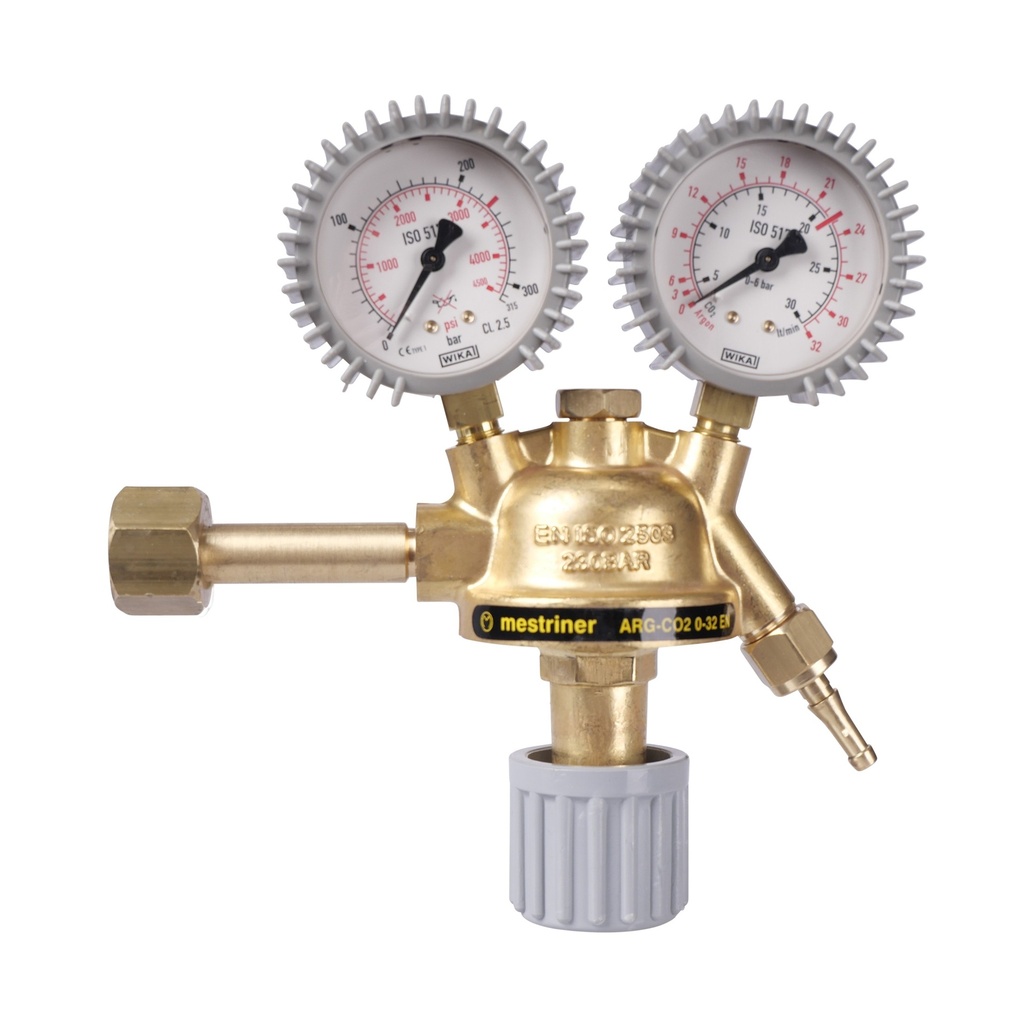

Gas regulator / pressure regulator for gas cylinder
This Mestriner gas reducer is of high European quality and meets the ISO2503 safety standard. The large solid flow chamber allows the regulator to deliver a large gas flow and an output pressure of 5 bar.
Extremely suitable for advanced MIG & TIG machines.
The pressure reducing valve is equipped with 2 pressure gauges and the gas flow can be very accurately controlled and read with an accuracy of 0-20L / min.
max. inlet pressure = 230 bar
max.output pressure = 5 bar
flow capacity = 1.5m³/h
scale division flow meter = 0 - 20L/min
connection inlet = 24.32mm internal thread
connection outlet = 6.3 and 8,3mm hose connector
Dimensions du produit :
| Length | 195 mm |
|---|---|
| Width | 69 mm |
| Height | 200 mm |
| Weight | 1,39 kg |
Dimensions de l'emballage :
| Length | 228 mm |
|---|---|
| Width | 235 mm |
| Height | 82 mm |
| Weight | 1,57 kg |
