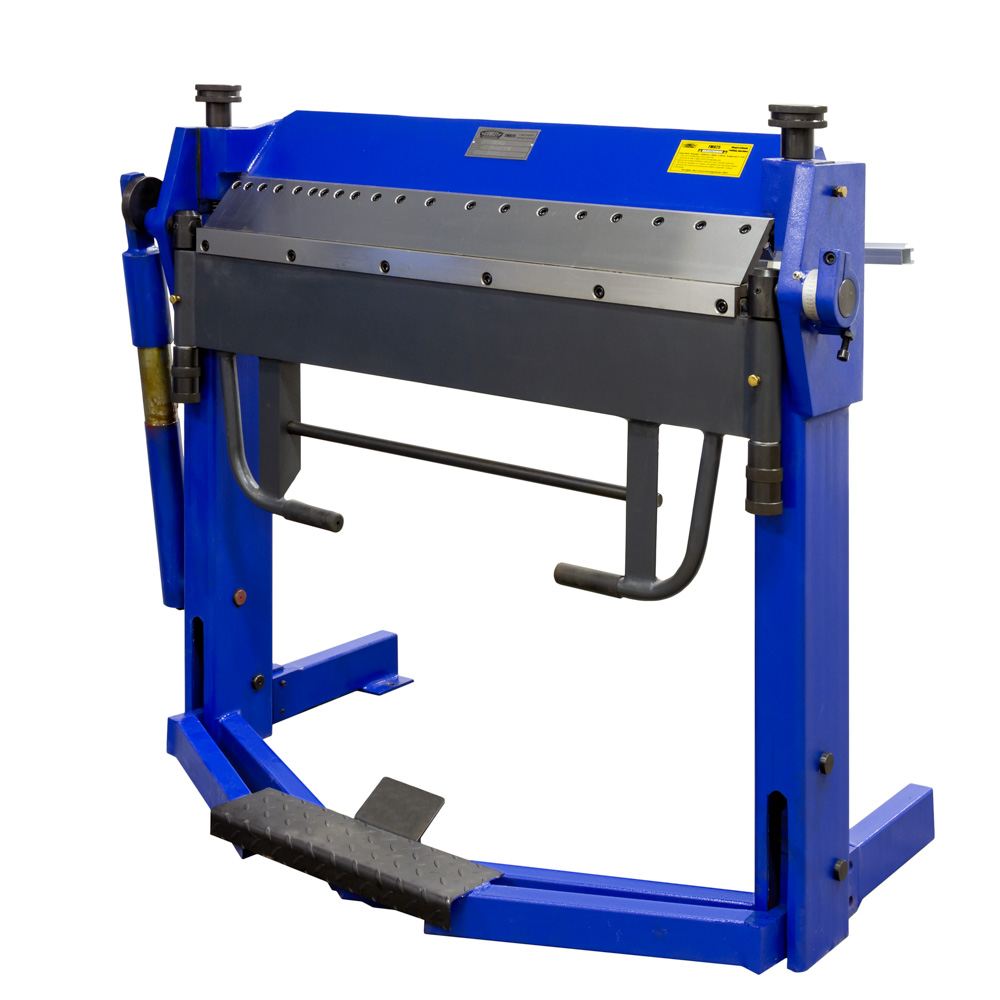

Pan and box brake / segment bending machine
This Cowley pan and box brake is suitable for folding smaller materials. Many different sizes are possible using the adjustable segments. This model is equipped with a foot pedal for securing steel plate. The machine is also supplied including a solid back gauge with metric scaling.
Technical specifications:
max. working width = 1020mm
max. thickness = 2.0mm
bending angle = 0 - 135 degrees
max. clamping bar lift = 47mm
Sizes segments:
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 285,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 420 mm |
| Largeur du paquet | 560 mm |
| Hauteur du paquet | 1 280 mm |
| Poids du Colis | 320,00 Kg |
