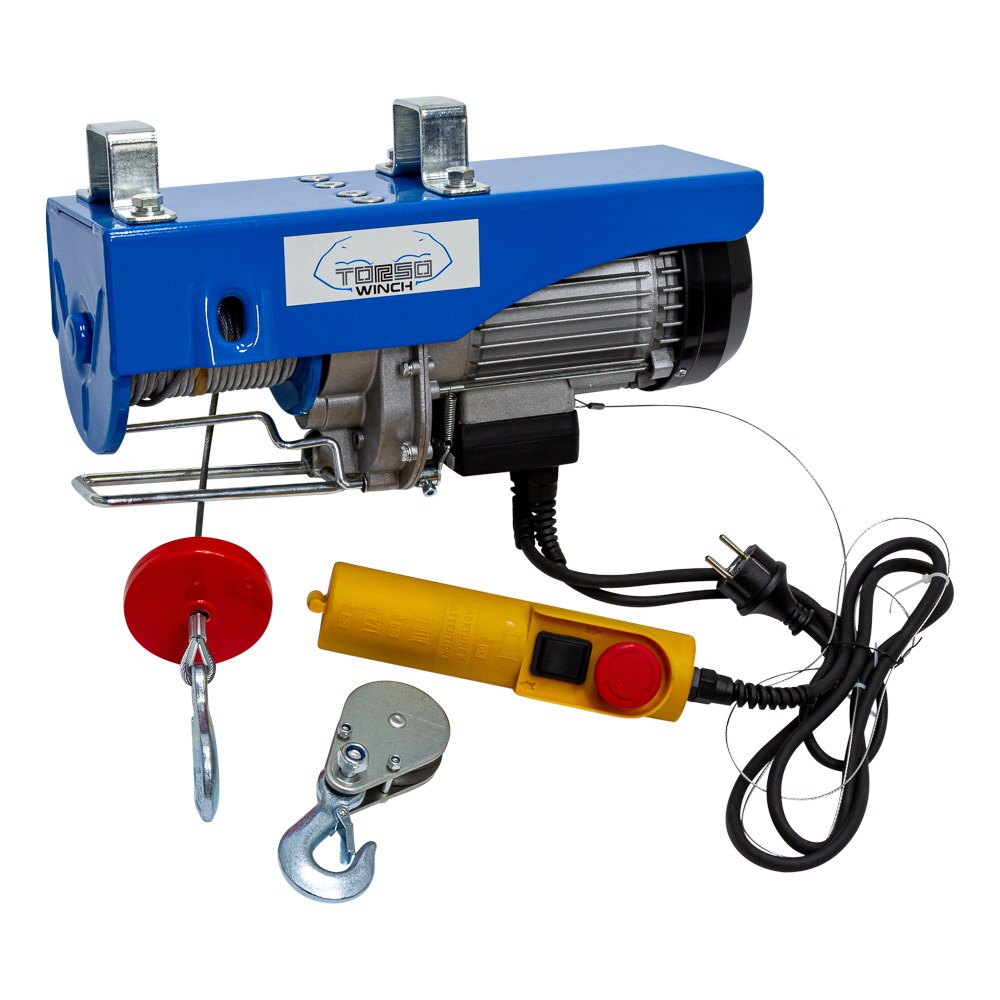

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 300kg / 600kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18m
cable diameter = 4,5mm
length control cable = 1,5m
cable break resistance = 1500kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 1050W
bolt to bolt length = 190mm
bolt to bolt width = 100mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 445 mm |
| Largeur du produit | 145 mm |
| Hauteur du produit | 210 mm |
| Poids du produit | 18,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 470 mm |
| Largeur du paquet | 260 mm |
| Hauteur du paquet | 150 mm |
| Poids du Colis | 18,36 Kg |
