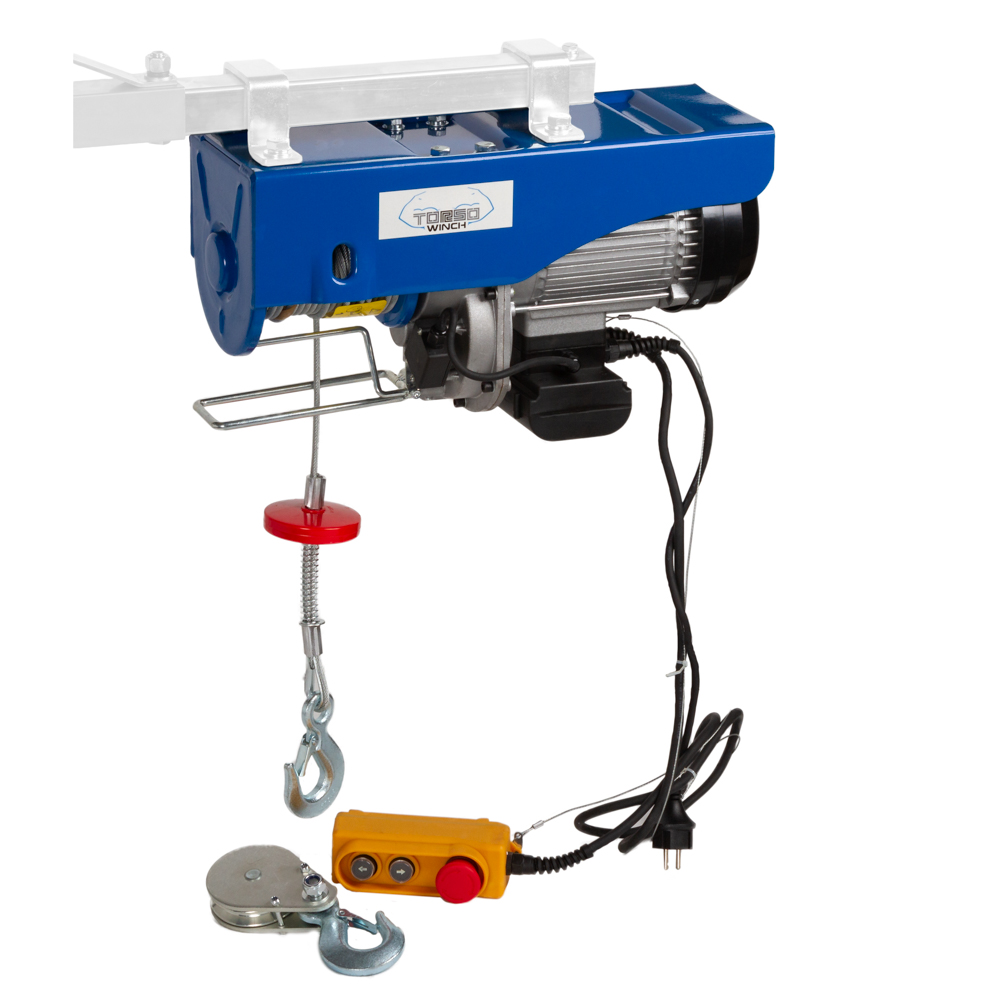

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 500kg / 990kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18
cable diameter = 5,6mm
length control cable = 1,5m
cable break resistance = 2500kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 1600W
bolt to bolt length = 250mm
bolt to bolt width = 110mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 500 mm |
| Largeur du produit | 175 mm |
| Hauteur du produit | 270 mm |
| Poids du produit | 33,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 550 mm |
| Largeur du paquet | 260 mm |
| Hauteur du paquet | 120 mm |
| Poids du Colis | 34,00 Kg |
