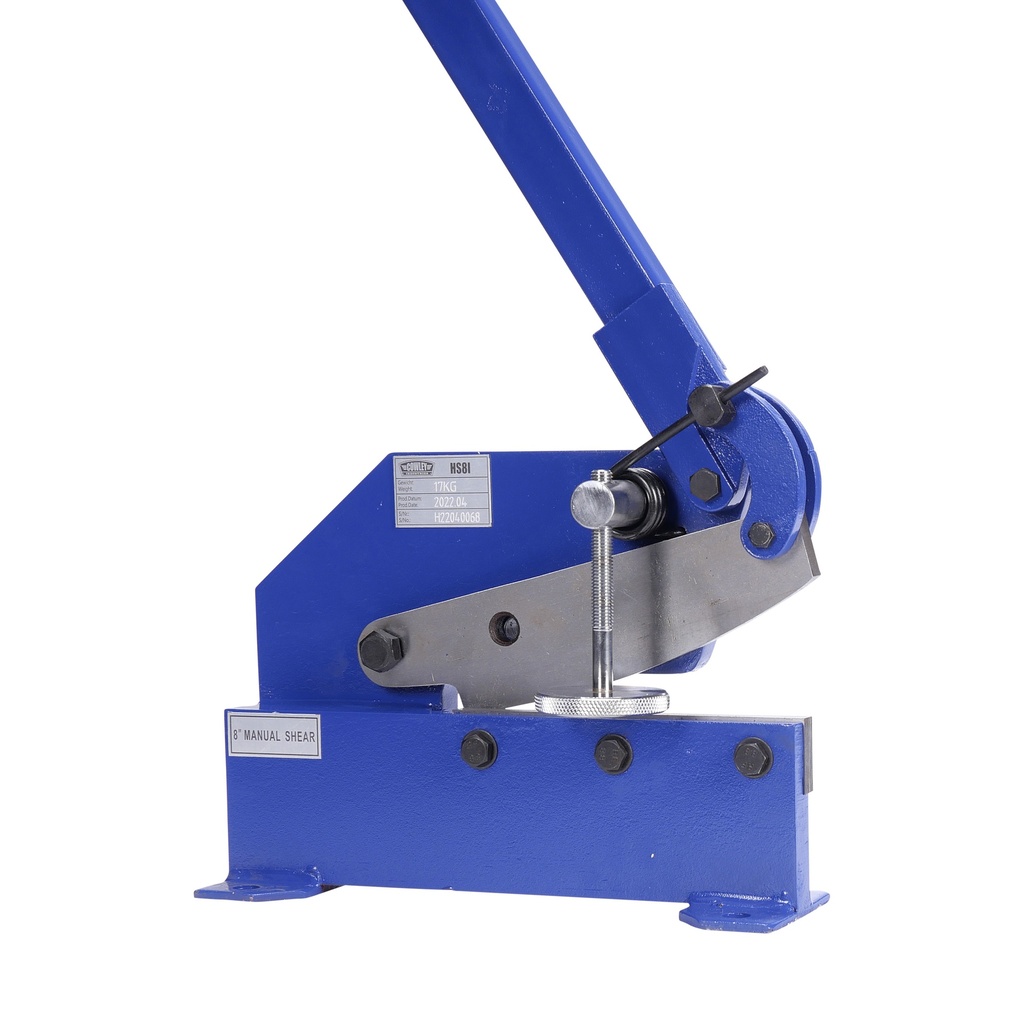

Hand shear from Cowley is a durable universal cutter for sheet, round steel and flat bar. Standard lever shears for installers, locksmitheries and training workshops.
The lever shears are capable of cutting round billets up to 11 mm in diameter, sheet steel up to 5 mm thick and strips up to 70x5 mm in size. The scissors are equipped with a strong, height-adjustable clamp and high-quality cutting blades.
Due to the favourable cutting geometry of the arched top blade allows smooth and easy power-saving cutting without much effort along the entire length of the working stroke.
Technical specifications:
- Blade length = 203.2 mm (8")
- Cutting length max. = 190 mm
- Capacity sheet steel* = 5.0 mm (* Material strength 400 N/mm², not over the entire length)
- Capacity round steel = 11 mm
- Capacity flat steel = 70 x 5 mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 810 mm |
| Largeur du produit | 130 mm |
| Hauteur du produit | 810 mm |
| Poids du produit | 17,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 420 mm |
| Largeur du paquet | 410 mm |
| Hauteur du paquet | 160 mm |
| Poids du Colis | 19,00 Kg |
