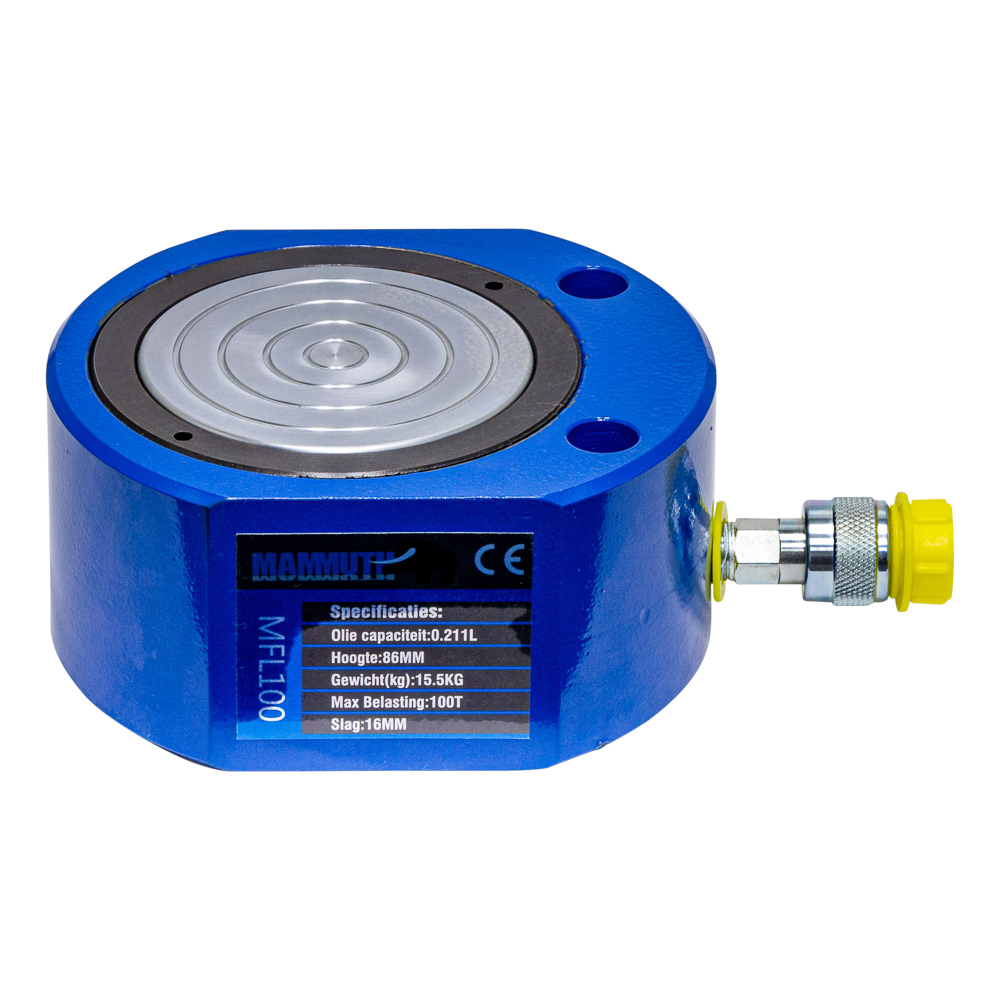

Flat cylinder
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 100 Ton
stroke = 16mm
effective area = 95cm^2
oil capacity = 0,211 L
height of product = 86mm
extended height = 102mm
outside diameter = 185x160mm
bore diameter = 130mm
plunger diameter = 110mm
thread for oil input = 3/8''-19
saddle protusion form Plgr = 2mm
max. pressure = 700bar
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 255 mm |
| Largeur du produit | 160 mm |
| Hauteur du produit | 85 mm |
| Poids du produit | 15,9 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 235 mm |
| Largeur du paquet | 340 mm |
| Hauteur du paquet | 135 mm |
| Poids du Colis | 18,00 Kg |
| Package Type: | |
| 1 Pcs |
