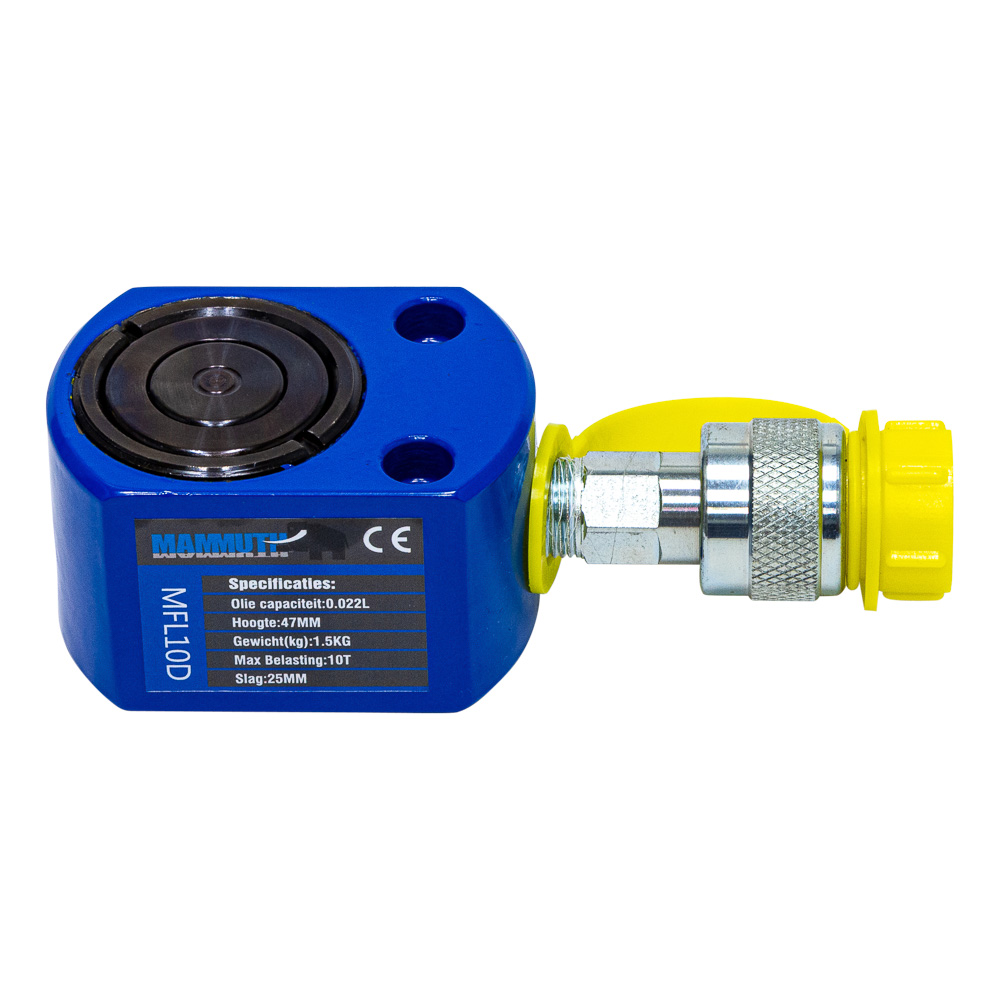

Flat cylinder double
The stroke from the double cylinders is higher then the stroke from the single cylinders.
This cylinder is suit for working in narrowness.
The surface of the plunger is finished with a chrome plate.
Plunger has the function of retracting automatically.
output = 10 ton
stroke = 25mm
effective area = 11,3cm^2
oil capacity = 0,022 L
height of product = 47mm
extended height = 74mm
outside diameter = 81x56mm
bore diameter = 43mm
plunger diameter = 38mm
max. pressure = 700bar
Dimensions du produit :
| Length | 145 mm |
|---|---|
| Width | 55 mm |
| Height | 47 mm |
| Weight | 1,5 kg |
Dimensions de l'emballage :
| Length | 260 mm |
|---|---|
| Width | 155 mm |
| Height | 107 mm |
| Weight | 2,00 kg |
