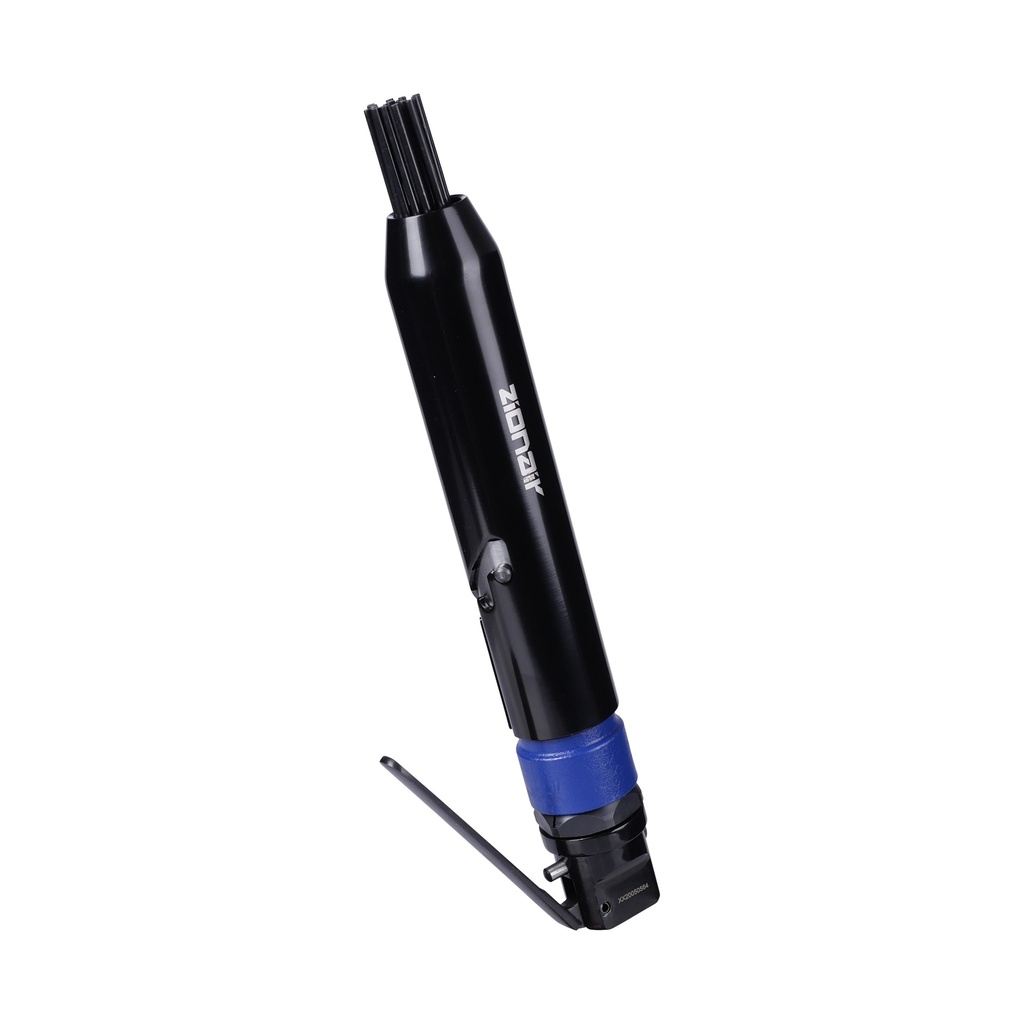

Needle scaler / air chisel / air hammer
This ZionAir pneumatic 3 in 1 combi machine is very multifunctional and can be used for all kinds of different work jobs. The device consists of a needle scaler, air chisel and an air hammer. This makes it suitable for the removal of welding slag, paint and rust, among other things.
It is easy to switch between the different heads. The needle scaler has 19 needles and the chisel has 5 different chisels. The hammer has 1 head.
Technical specifications:
stroke = 14mm
free speed = 6000rpm
average air consumption = 128L/min
number of needles = 19
diameter needles = 3mm
number of chisels = 5
connection chisels = hexagon
hardness pickguard = 548HB
air inlet = 1/4" (male connector included)
working pressure = 6,3 bar
recommended air hose = 10mm inside diameter (3/8")
The specified air consumption is indicated at a pressure of 6,3 bar.
The air output at compressors is measured at ambient pressure, so these 2 values cannot be compared with each other.
If you need advise, consult one of our experts.
Dimensions du produit :
| Length | 355 mm |
|---|---|
| Width | 44 mm |
| Height | 80 mm |
| Weight | 3,7 kg |
Dimensions de l'emballage :
| Length | 380 mm |
|---|---|
| Width | 130 mm |
| Height | 53 mm |
| Weight | 3,90 kg |
