Hydraulic body repair kit / dent removal set
This Mammuth hydraulic body repair kit is suitable for bodywork work such as bending, pressing and spreading.
The cylinder is equipped with a quick-click system to be able to use the various adapters and extensions quickly and easily.
Technical specifications:
capacity = 4 ton
min. length cylinder = 270mm (without adapters)
max. length cylinder = 390mm
stroke = 120mm

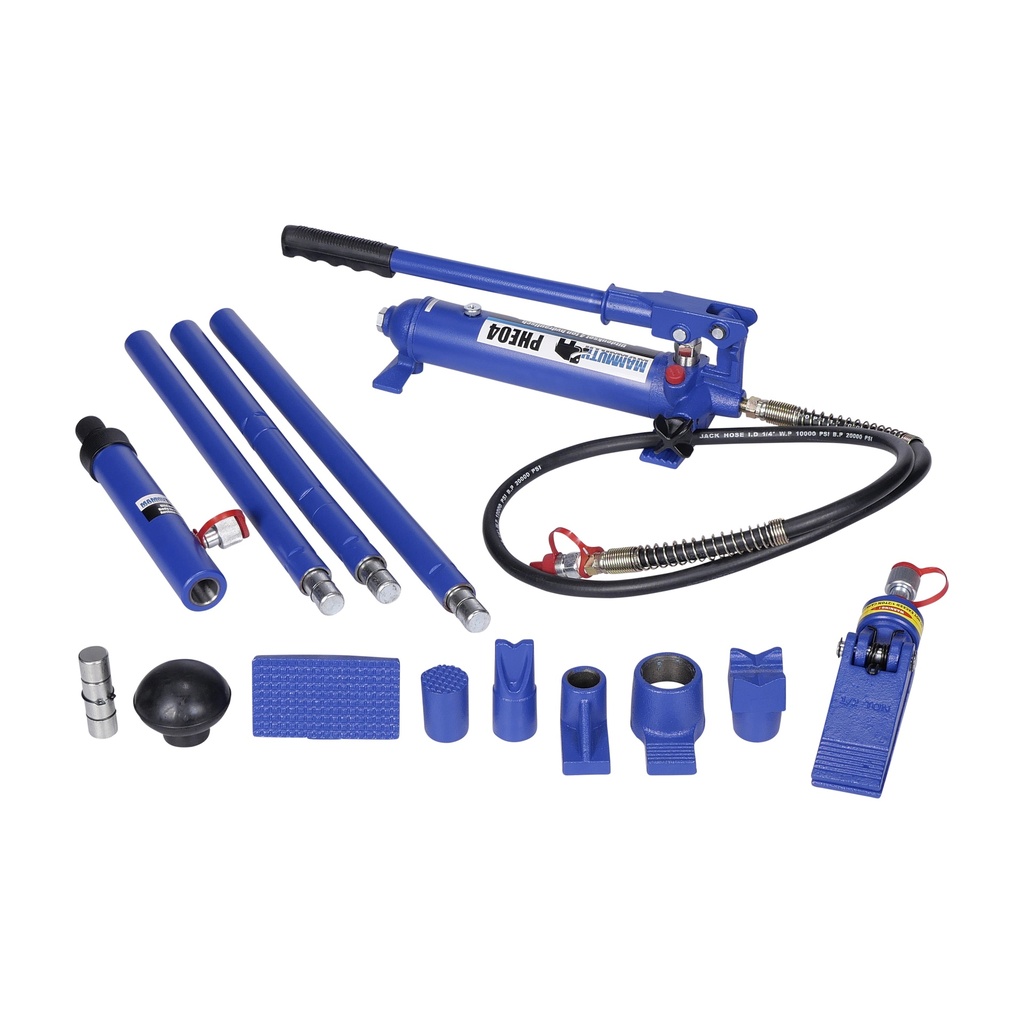

Content:
cylinder
hand pump
5 extensions = 85 / 130 / 215 / 420 / 495mm
flange spreader = 0.5 ton
coupling
adapter rubber round = dia. 70mm, height 60mm
adapter base plate flat = 110 x 60mm
adapter round flat = 35mm
adapter V-shape
adapter double V-shape
adapter pedestal = 36 x 72mm
adapter base with thread
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 550 mm |
| Largeur du produit | 220 mm |
| Hauteur du produit | 150 mm |
| Poids du produit | 18,5 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 565 mm |
| Largeur du paquet | 235 mm |
| Hauteur du paquet | 160 mm |
| Poids du Colis | 19,00 Kg |
| Package Type: | |
| Pallet | 30 Pcs |
