Pl70hg

Plasma Marque : Soldatech Soldatech

Code produit : PL70HG

EAN : 8720028090778

Disponibilité : Disponible

€ 968,00 TVA incluse https://schema.org/InStock 968.0 EUR € 968,00

€ 800,00

  • Tension
  • Fréquence
  • Puissance d'entrée
  • Max. cutting thickness
  • Recommended cutting thickness
  • Circuit breaker
  • Max. unloaded voltage
  • Duty cycle @20C
  • Cutting current range
  • Duty cycle @40C
  • Air consumption
  • Protection class

Cette combinaison n'existe pas.

Livraison rapide à partir d'un stock important.
Paiement sécurisé via différentes options de paiement.
politique de retour de 14 jours.

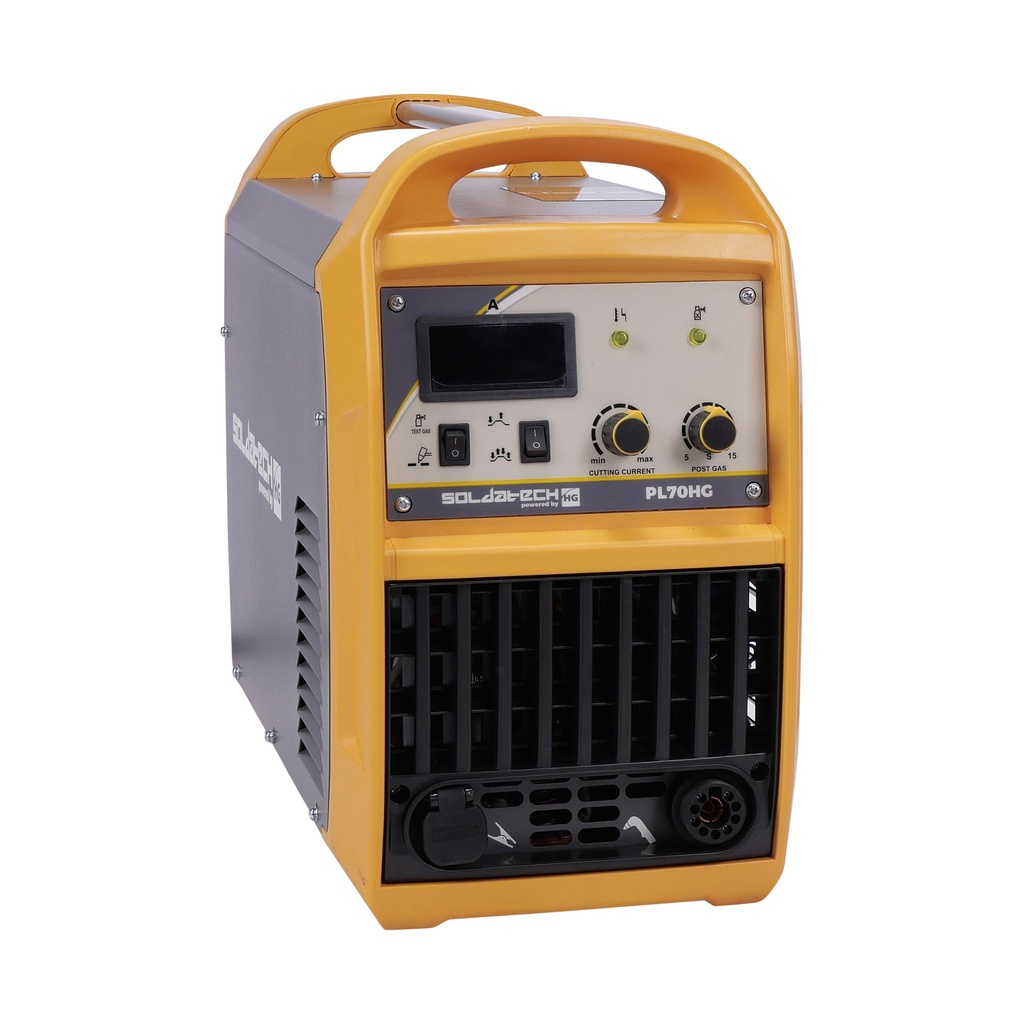

Plasma cutter / plasma cutting machine
This Soldatech powered by HG plasma cutter cuts various materials with high-quality results. The PL70HG is a compact, powerful and easy to use plasma cutter that is equipped with Pilot ARC ignition. This in combination with the HF ignition makes this cutter very easy to ignite and it is capable of cutting smoothly through rusted, coated or structured material up to 25mm.
The PL70HG has a user-friendly control panel and can even be adjusted during cutting work to achieve the best cutting result.

The modern IGBT inverter technology not only ensures that the PL70HG delivers long-lasting performance with more power, but it also makes the welder lightweight and portable. Overload protection in combination with a built-in fan prevents overheating and ensures that high-quality welding performance is guaranteed for a long time.

Ideal for cutting low alloy steel, stainless steel and aluminum alloys.

Each PL70HG comes standard with:

  • Soldatech PL80M5 plasma torch with 5m cable

  • Workpiece clamp with 2m 16mm² cable

  • Gas pipe of 4m with hose clamps

  • 5-pin 32A plug with 2.5m 4x2.5mm² cable

  • Standard 9mm Dinse cable couplings

Technical specifications:

  • voltage = 400V

  • frequency = 50/60Hz

  • fuse protection = 3x 16A C-kar

  • input power = 9.4kVA

  • duty cycle = 60% - 70A / 100% - 54A (at 40 degrees ambient temperature)

  • welding current range = 25 - 70A

  • max. unloaded voltage = 330V

  • recommended cutting thickness = 17mm

  • max. cutting thickness = 25mm

  • average air / gas consumption = 220L/min

  • protection class = IP21S

  • dimensions = 550 x 245 x 405mm

  • weight = 22.7kg

Dimensions du produit :
Longueur du produit 550 mm
Largeur du produit 245 mm
Hauteur du produit 405 mm
Poids du produit 23,5 Kg
Dimensions de l'emballage :
Longueur du paquet 700 mm
Largeur du paquet 335 mm
Hauteur du paquet 460 mm
Poids du Colis 28,80 Kg

  • IGBT invertor technology

  • Infinitely adjustable

  • Pilot ARC ignition

  • 2-stroke / 4-stroke switch

  • 5 years warranty

Spécifications

Tension 400V - 3 Phase
Fréquence 50/60 Hz
Puissance d'entrée 9.4kVA
Max. cutting thickness 25mm
Recommended cutting thickness 17mm
Circuit breaker 20A B-char
Max. unloaded voltage 330V
Duty cycle @20C 100% - 70A
Cutting current range 25 -70A
Duty cycle @40C 60% - 70A
Air consumption 220L/min
Protection class IP21S
