Garage press / bearing press / frame press

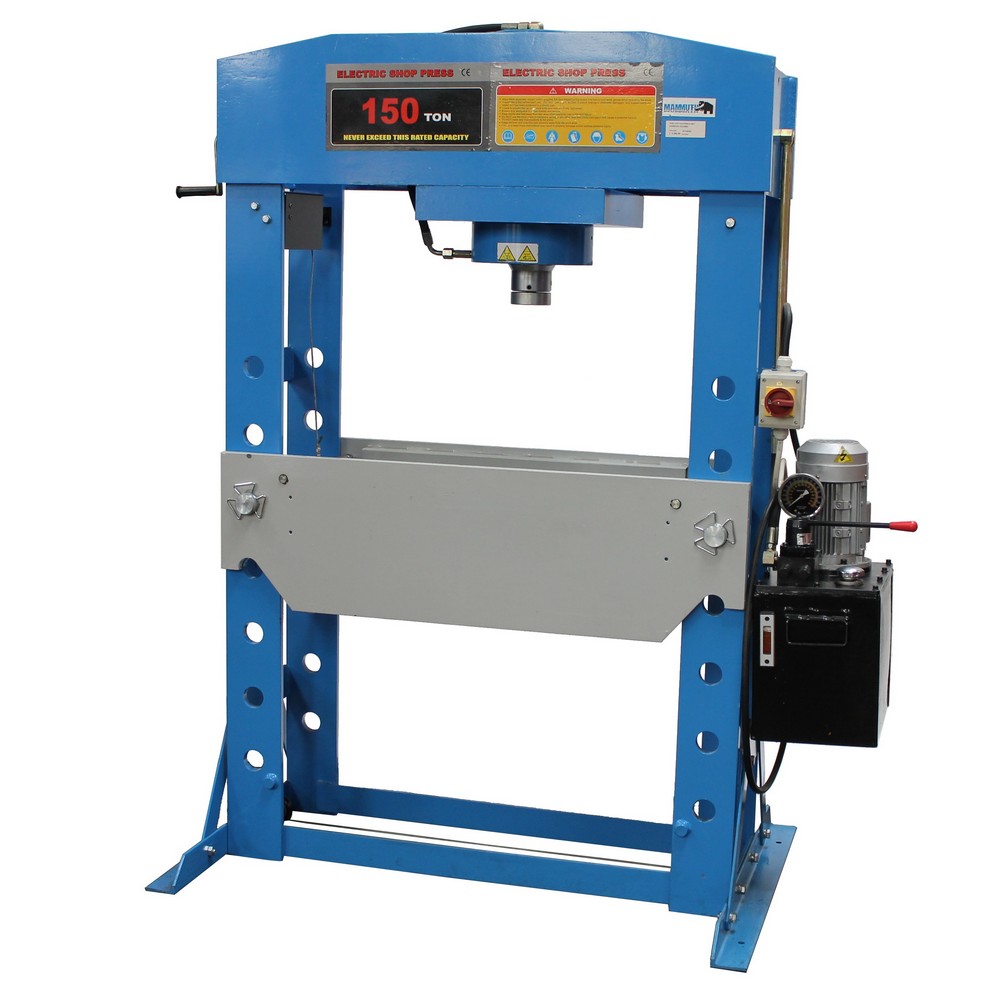

This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
The work bed is easy to adjust in height using the winch and handle. The cylinder can also be slid from left to right using the same handle.
The press comes standard with a safety grille, foot pedal and an emergency stop.
Please note: the press is supplied without CH22 hydraulic oil (29 liters).
Specifications:
capacity = 150 ton
cylinder stroke = 350mm
bed width = 1000mm
bed depth = 460mm
working range = 945mm
power = 1,5kW
voltage = 400V
speed = 1400rpm
outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec
incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec
Packed in 2 boxes:
138 x 56,5 x 225cm 1200kg
52,5 x 36,5 x 79cm 85kg
Note: This press comes without press blocks. Look below at related items for the relevant press blocks.
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 1 453 mm |
| Largeur du produit | 1 195 mm |
| Hauteur du produit | 2 100 mm |
| Poids du produit | 1 200,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 2 550 mm |
| Largeur du paquet | 1 370 mm |
| Hauteur du paquet | 850 mm |
| Poids du Colis | 1 287,00 Kg |
