Press / Garage press / bearing press / workshop press

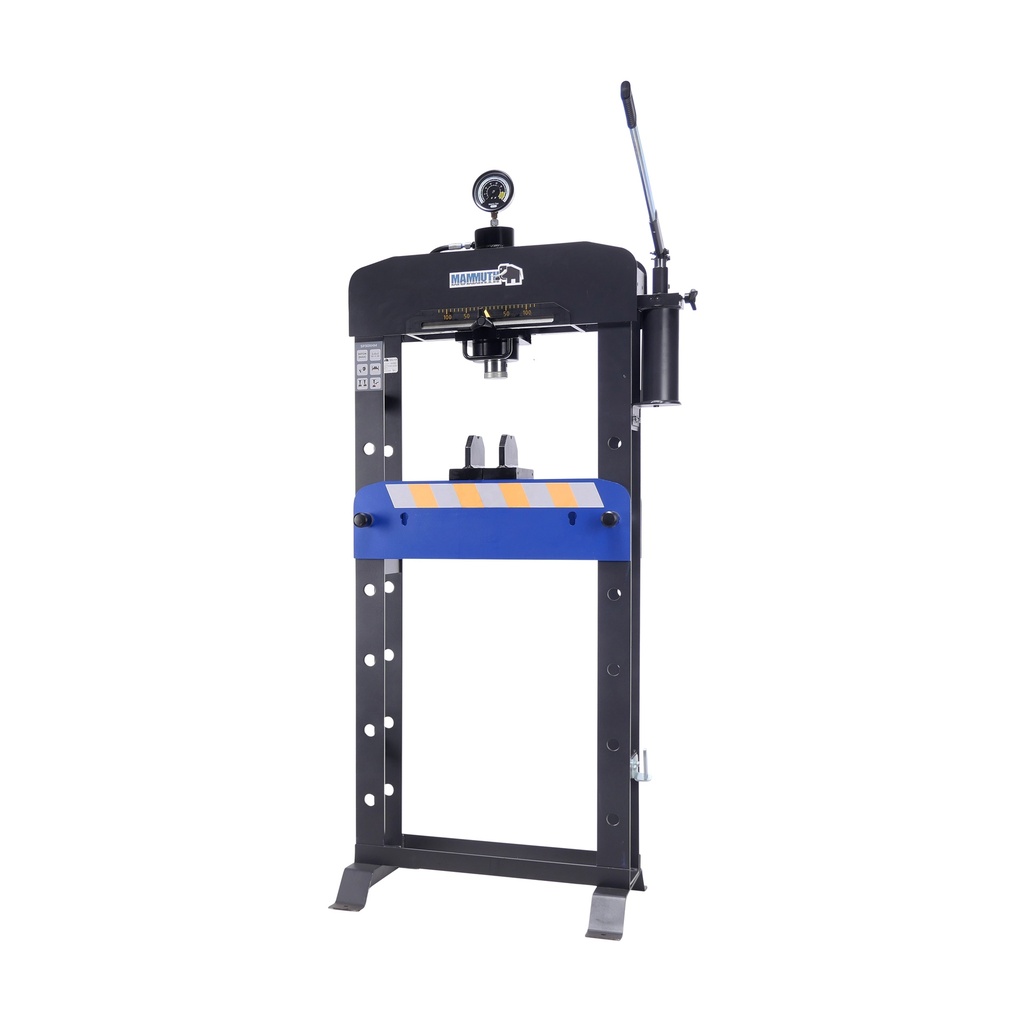

This Mammuth press is extremely suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other press work where great force is required. The press has a fully welded solid frame. The pressure in kilograms can be clearly read on the pressure gauge. The hydraulic cylinder can be moved in width (with bearings). The cylinder is also equipped with an interchangeable recording press head and integrated hydraulic two-stage pump. This built-in two-stage system provides a large stroke at low back pressure and a small controllable stroke at higher back pressure, so pressing work can be performed accurately.
The press is supplied as standard with two multifunctional press blocks.
Technical specifications
capacity = 30 tons
bed width = 540mm
bed depth = 148mm
minimum distance bed/cylinder = 75mm
cylinder stroke = 180mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 850 mm |
| Largeur du produit | 540 mm |
| Hauteur du produit | 1 850 mm |
| Poids du produit | 132,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 1 600 mm |
| Largeur du paquet | 770 mm |
| Hauteur du paquet | 330 mm |
| Poids du Colis | 145,00 Kg |
