Shop press air hydraulic with foot pedal 50 ton

Press / garage press / bearing press

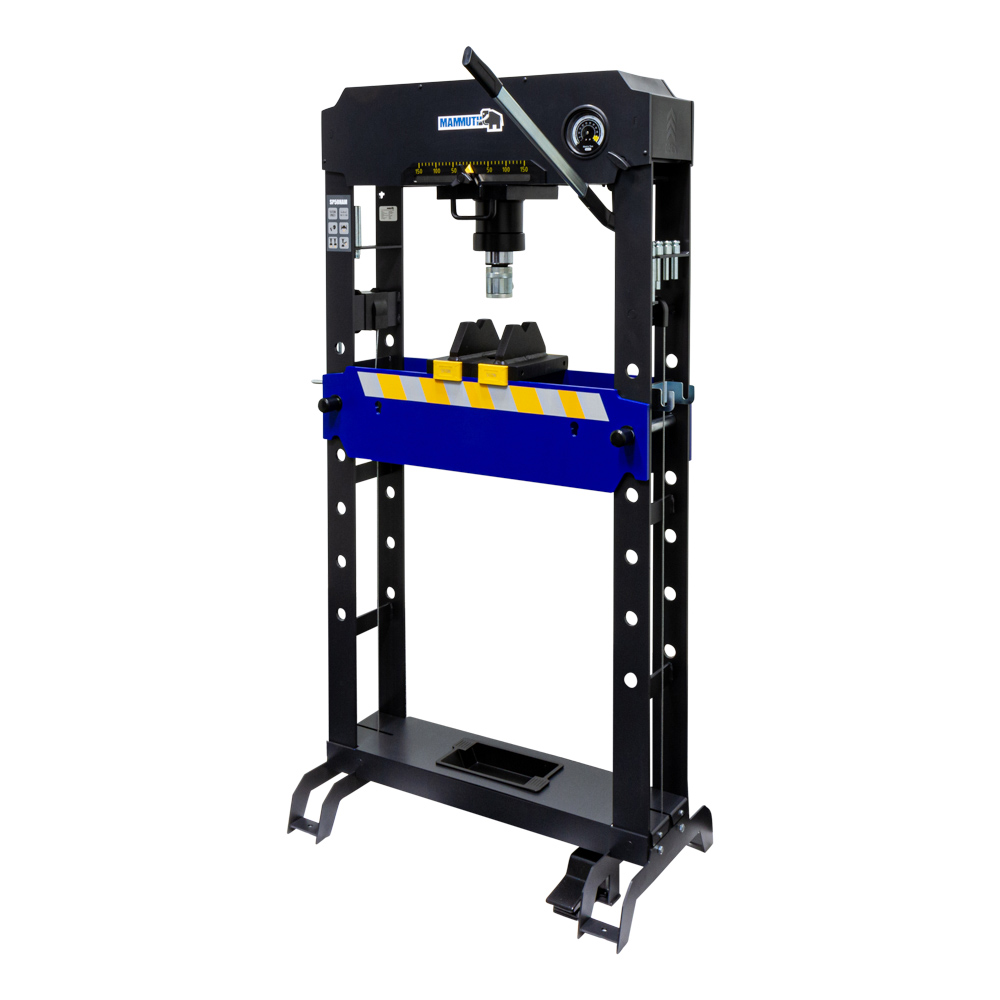

This Mammuth workshop press is of high quality and very stable thanks to the fully welded heavy frame. The working bed is easily manually in height adjustable using the hand winch. The press can be operated with the handle and pump (has two speeds) and with a foot pedal on compressed air. The hydraulic cylinder is movable in width (bearing) and is  equipped with a height adjustable, 7,5cm long spindle. The pressure is read via the integrated pressure gauge.

Comes with 2 heavy press blocks, 8 press pins and a parts tray.

Specifications:

• capacity = 50 ton

• cylinder stroke = 220mm

• diameter cylinder = 66mm

• bed width = 750mm

• bed depth = 249mm

• working range = 780mm

• screw thread length = 75mm

• operating pressure = 8 - 12 bar

• air connection = 1/4" NPT external thread
