Electric shop press with hand winch 75 ton

Équipement d'atelier / Presses hydrauliques / Presse de travail électrique Marque : Mammuth Mammuth

Code produit : SP75HEL

EAN : 8720028057870

Disponibilité : Épuisé

Attendu en stock : 14 - 16 semaines

€ 4 719,00 TVA incluse https://schema.org/SoldOut 4719.0 EUR € 4 719,00

€ 3 900,00

    Cette combinaison n'existe pas.

    Livraison rapide à partir d'un stock important.
    Paiement sécurisé via différentes options de paiement.
    politique de retour de 14 jours.

    Garage press / bearing press / frame press

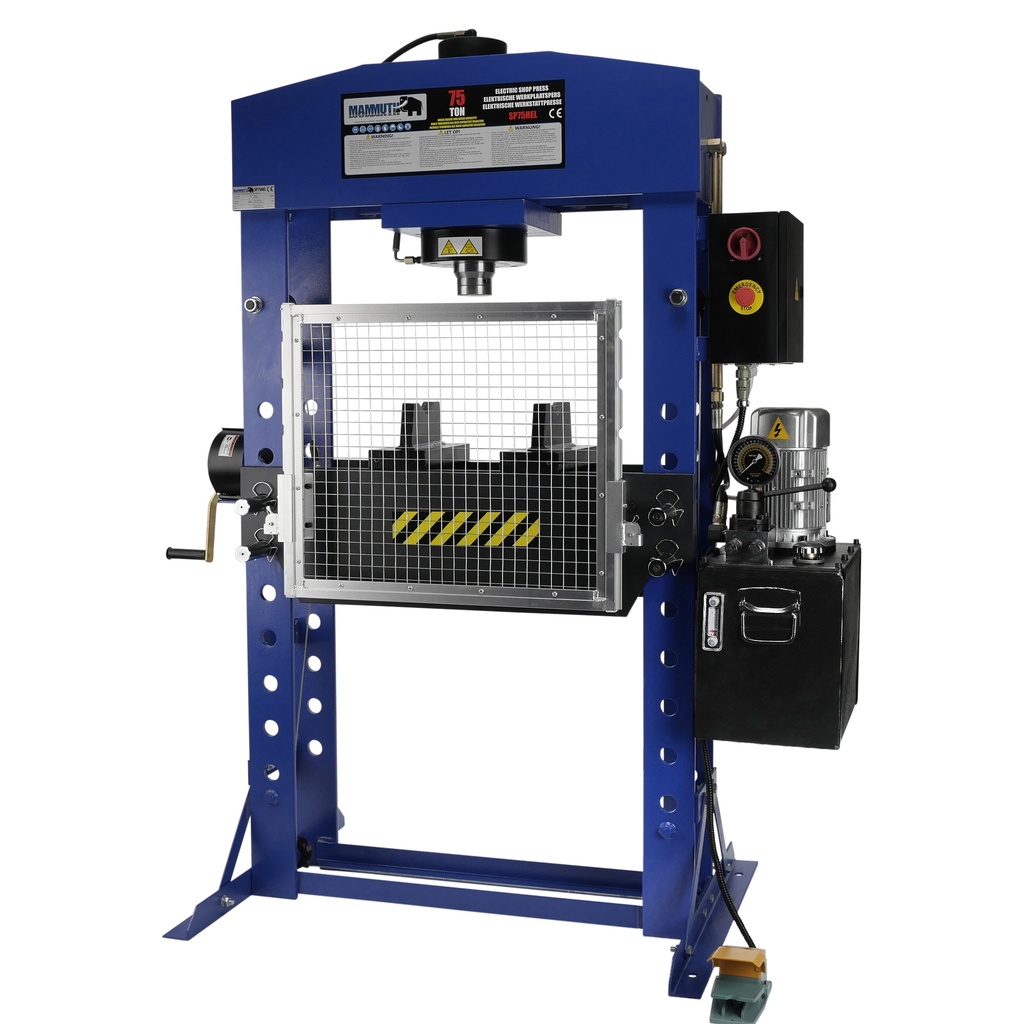

    This Mammuth electric press is very suitable for mounting bearings, pressing in shafts and bolts, bending pipes and other pressing work that requires a lot of power. The is press is of high quality and consists of a heavy, robust, fully welded frame. This makes the press very solid and stable.
    The work bed is easy to adjust in height using the winch and handle.

    The press comes standard with a safety grille, foot pedal, emergency stop and two press blocks.

    Please note: the press is supplied without CH22 hydraulic oil (29 liters).

    Specifications:

    • capacity = 75 ton

    • cylinder stroke = 250mm

    • bed width = 800mm

    • bed depth = 280mm

    • working range = 945mm

    • power = 1,5kW

    • voltage = 400V

    • speed = 1400rpm

    • outgoing press speed = 12 - 24cm/min or 2 - 2,33mm/sec

    • incoming press speed = 21 - 23cm/min or 3,5 - 3,83mm/sec

    Packed in 2 boxes:
    109 x 32,5 x 204cm 463kg
    52,5 x 36,5 x 79cm 85kg

    Dimensions du produit :
    Longueur du produit 1 140 mm
    Largeur du produit 800 mm
    Hauteur du produit 1 860 mm
    Poids du produit 491,0 Kg
    Dimensions de l'emballage :
    Longueur du paquet 2 040 mm
    Largeur du paquet 1 090 mm
    Hauteur du paquet 365 mm
    Poids du Colis 548,00 Kg

    • Electric hydraulic pump

    • Fully welded frame

    • Equipped with hand winch

    • Protection by safety grille

    • Operation by foot pedal
