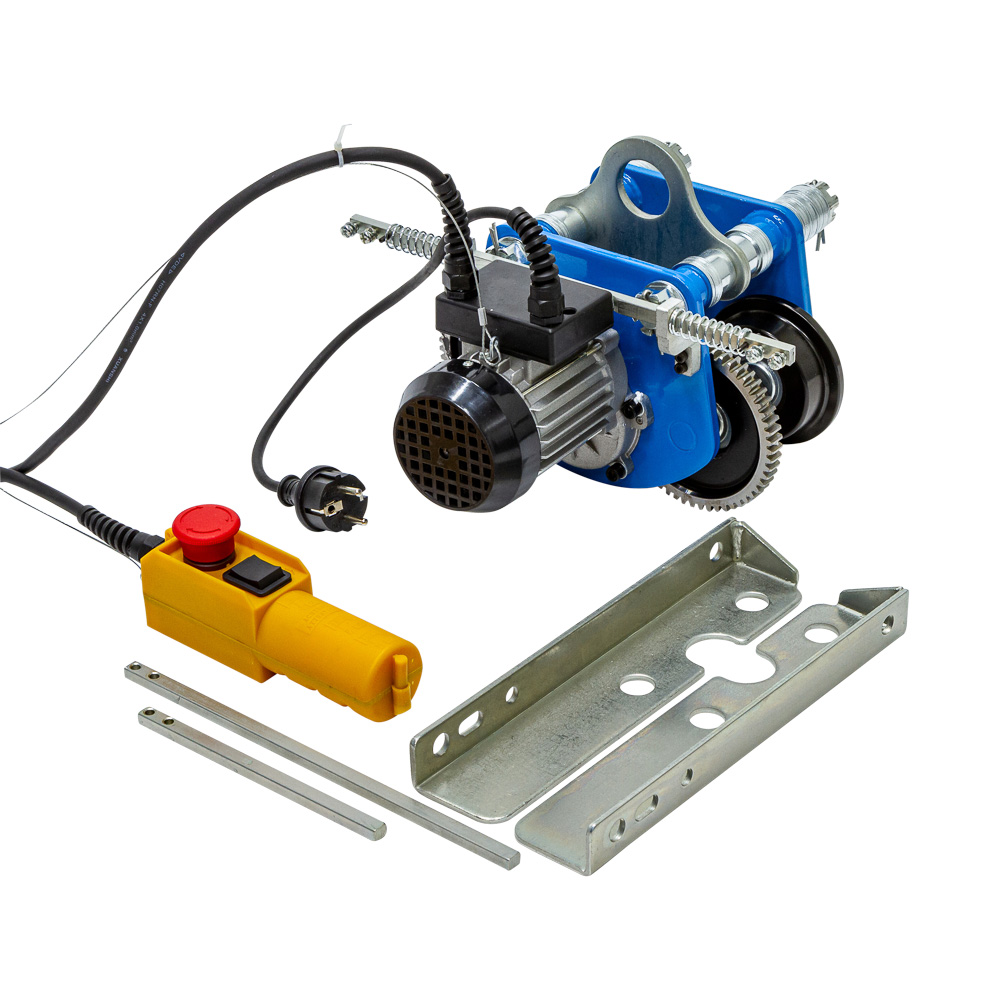

With the help of this Torso electric trolley it is possible to make electric hoists, chain hoists and ratchet hoists mobile. The trolley can be attached to both H and I beams, from a minimum of 68mm to a maximum of 110mm wide.
The trolley is supplied with mounting plates, making it suitable for our Torso electric hoists.
With the supplied spacers the risk is prevented that the trolley runs against the wall.
Suitable for the electric hoists: HC0200E, HC0300E, HC0600E, HC0800E and HC0990E.
Specifications:
capacity = 1000kg
power = 200W
speed = 16 m/min
power cable length = 550mm
control cable length = 1500mm
| Dimensions du produit : | |
|---|---|
| Longueur du produit | 0 mm |
| Largeur du produit | 0 mm |
| Hauteur du produit | 0 mm |
| Poids du produit | 15,0 Kg |
| Dimensions de l'emballage : | |
| Longueur du paquet | 365 mm |
| Largeur du paquet | 325 mm |
| Hauteur du paquet | 270 mm |
| Poids du Colis | 16,00 Kg |
