Electric tapping machine M6 - M36

Travail du bois et de la métallurgie / Travail des métaux / Tapping machines and accessories / Tapping machines Marque : Cowley Cowley

Code produit : TME36

EAN : 8720028093953

Disponibilité : Épuisé

€ 1 754,50 TVA incluse https://schema.org/SoldOut 1754.5 EUR € 1 754,50

€ 1 450,00

    Cette combinaison n'existe pas.

    Livraison rapide à partir d'un stock important.
    Paiement sécurisé via différentes options de paiement.
    politique de retour de 14 jours.

    Description Taille et poids

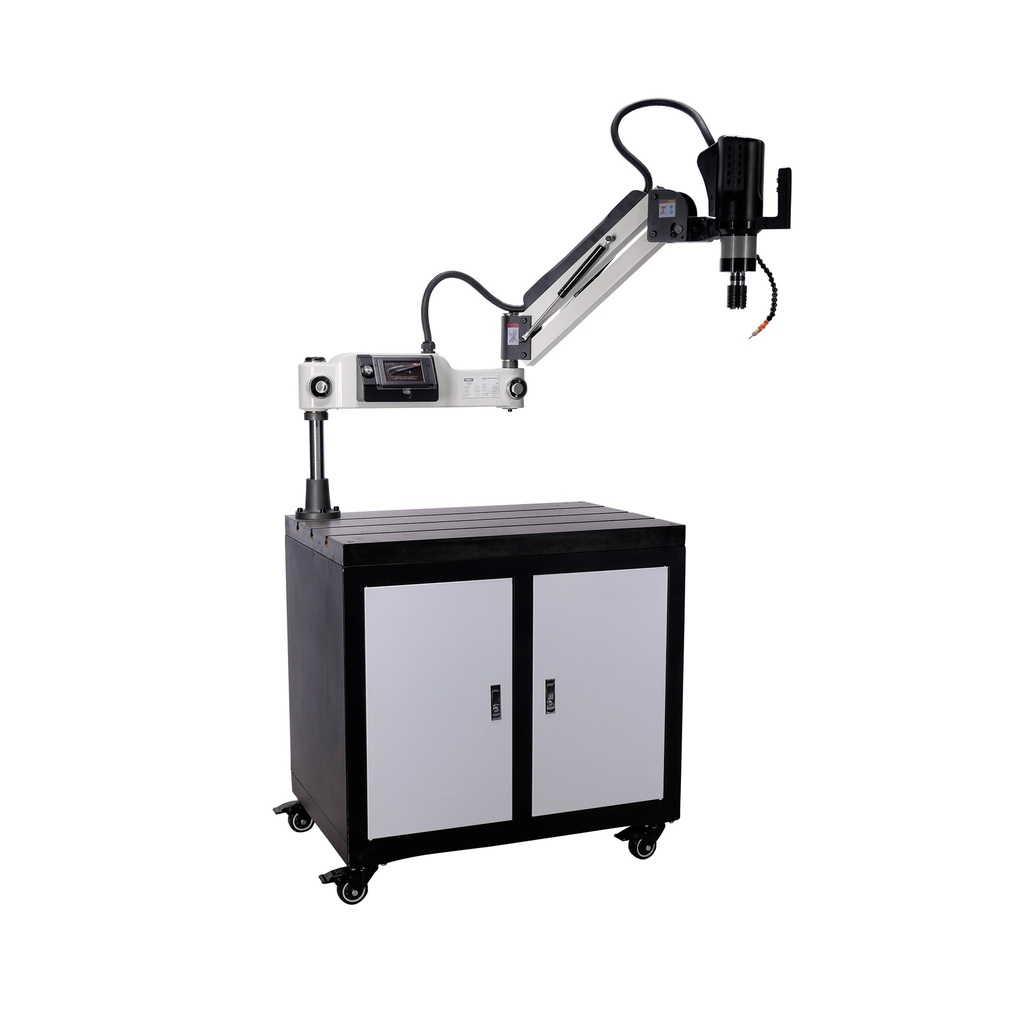

    Electric tapping machine / tapping arm
    This Cowley electric tapping machine is used for fast and accurate tapping of different types of materials. The machine can be used both horizontally and vertically. The speed is variable and adjustable, the cooling is nicely integrated in the housing and the machine has an internal memory for storing multiple programs.
    Tapping machine is equipped with a mist spray function, which ensures both cooling and lubrication of the tapping process. The system is fully integrated into the tap arm interface and can be automatically turned on and off via the HD touchscreen. When the liquid exits the spray surface of the nozzle, it breaks up into a fine mist of uniform micron-sized droplets. This allows the process to be cooled and lubricated for fast and accurate tapping. With the included flexible mist spray hose you can spray the oil/air mixture on the tap at all common angles. In addition, the mist spray also saves costs, extends the life of equipment, saves the environment and ultimately saves costs.

    The tapping machine also has the following features:

    • HD Touchscreen for easy control in Dutch, English and French
    • PLC control
    • Self-lubricating bronze bushings for optimum flexibility
    • Wide tap range from M6 to M36
    • Dynamically adjustable tap depths
    • Integrated on/off button
    • Weightless operation thanks to gas springs
    • Powerful servo motor
    • Electrically adjustable torque
    • Adjustable input and output speed
    • Touchscreen with protective cover
    • Interchangeable tap heads with quick-release system

    Technical specifications:

    • power = 1.2kW
    • voltage = 230V
    • duty cycle = 100%
    • tap range = M6 to M36
    • max. speed = 156rpm
    • max. working radius = 1200mm

    The machine comes standard with: 9x GT24 DIN tap holder with slip coupling (adjustable torque):

    • M5-6 (ø6.0mm / shank = 4.9mm)
    • M8 (ø8.0mm / shank = 6.2mm)
    • M10 (ø10.0mm / shank = 8.0mm)
    • M12 (ø9.0mm / shank = 7.0mm)
    • M14 (ø11.0mm / shank = 9.0mm)
    • M16 (ø12.0mm / shank = 9.0mm)
    • M18 (ø14.0mm / shank = 11.0mm)
    • M20 (ø16.0mm / shank = 12.0mm)
    • M22-24 (ø18.0mm / shank = 14.5mm)

    4x GT24 DIN tal holder:

    • M27 (ø20.0mm / shank = 16.0mm)
    • M30 (ø22.0mm / shank = 18.0mm)
    • M33 (ø25.0mm / shank = 20.0mm)
    • M36 (ø28.0mm / shank = 22.0mm)

    PLEASE NOTE: The tap arm is supplied without a mobile base cabinet with a cast iron top. This is optionally available, see related products.
    Dimensions du produit :
    Longueur du produit 1 400 mm
    Largeur du produit 200 mm
    Hauteur du produit 900 mm
    Poids du produit 41,0 Kg
    Dimensions de l'emballage :
    Longueur du paquet 835 mm
    Largeur du paquet 740 mm
    Hauteur du paquet 250 mm
    Poids du Colis 49,00 Kg

    • Self-lubricating bronze bushings
    • Wide tap range
    • Automatic mist spray lubrication
    • Dynamically adjustable tap depths
