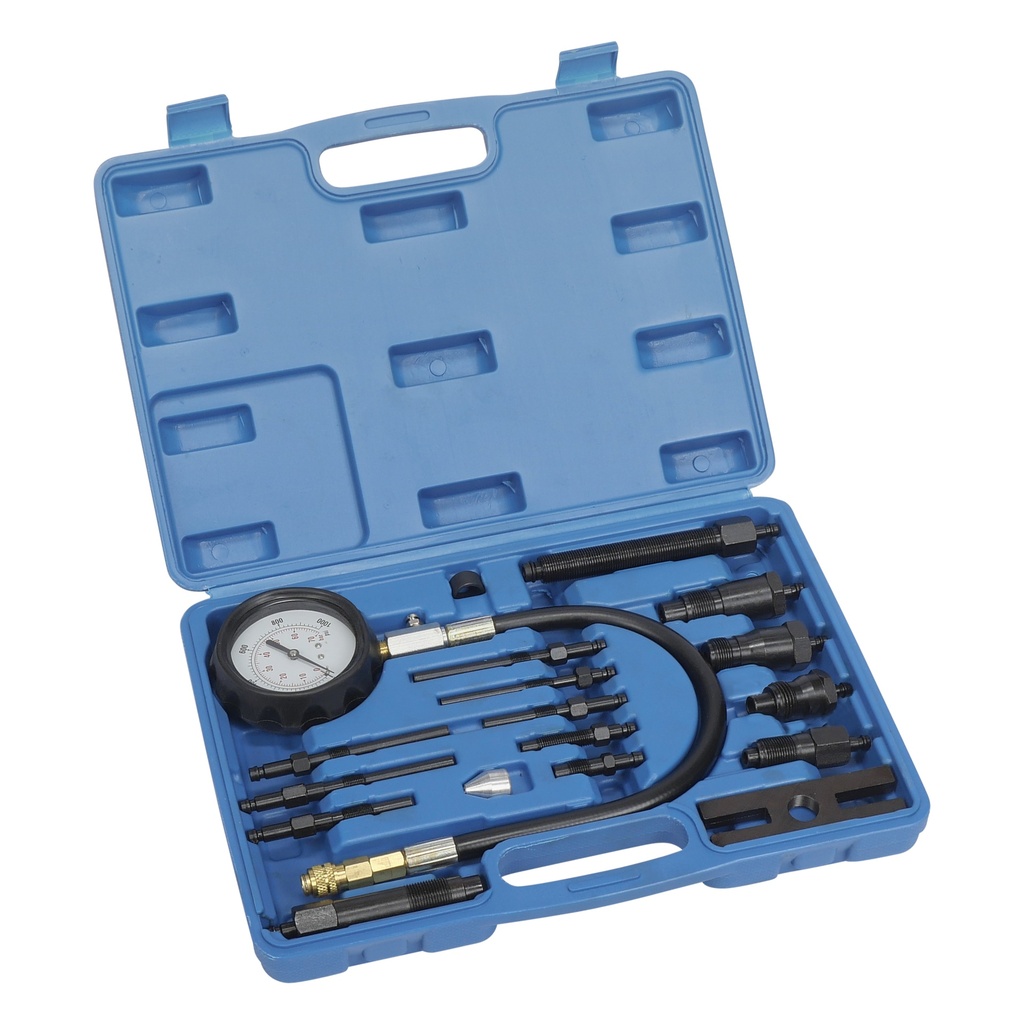

Compression tester kit diesel
This tester kit is suitable for the measurement of compression loss in almost every diesel engine from both cars and trucks.
The pressure gauge has a range of 0 - 70bar (0 - 1000psi) and a flexible hose of 360mm. Furthermore, the compression meter is equipped with a built-in resetter.
4 injector adapters:
M20 x 1,5 x 75mm
M22 x 1,5 x 73mm
M24 x 1,5 x 88mm
M24 x 2,0 x 63mm
9 glow plugs adapters:
M10 x 1,0 x 83mm
M10 x 1,0 x 91mm
M10 x 1,0 x 102mm
M10 x 1,0 x 113mm
M10 x 1,0 x 119mm
M10 x 1,25 x 64mm
M10 x 1,25 x 135mm
M12 x 1,25 x 47mm
M22 x 1,5 x 118mm
Dimensions du produit :
| Length | 380 mm |
|---|---|
| Width | 270 mm |
| Height | 75 mm |
| Weight | 3,05 kg |
Dimensions de l'emballage :
| Length | 380 mm |
|---|---|
| Width | 270 mm |
| Height | 75 mm |
| Weight | 3,05 kg |
