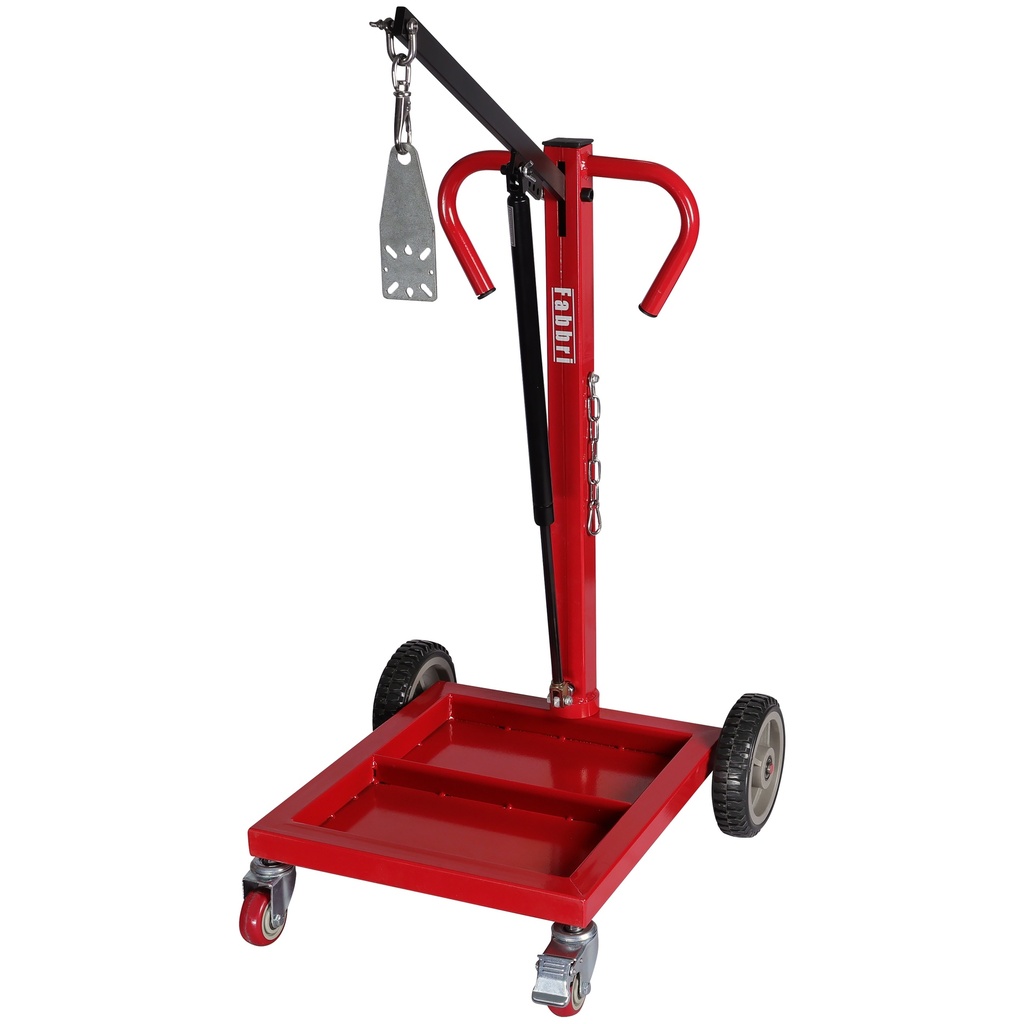

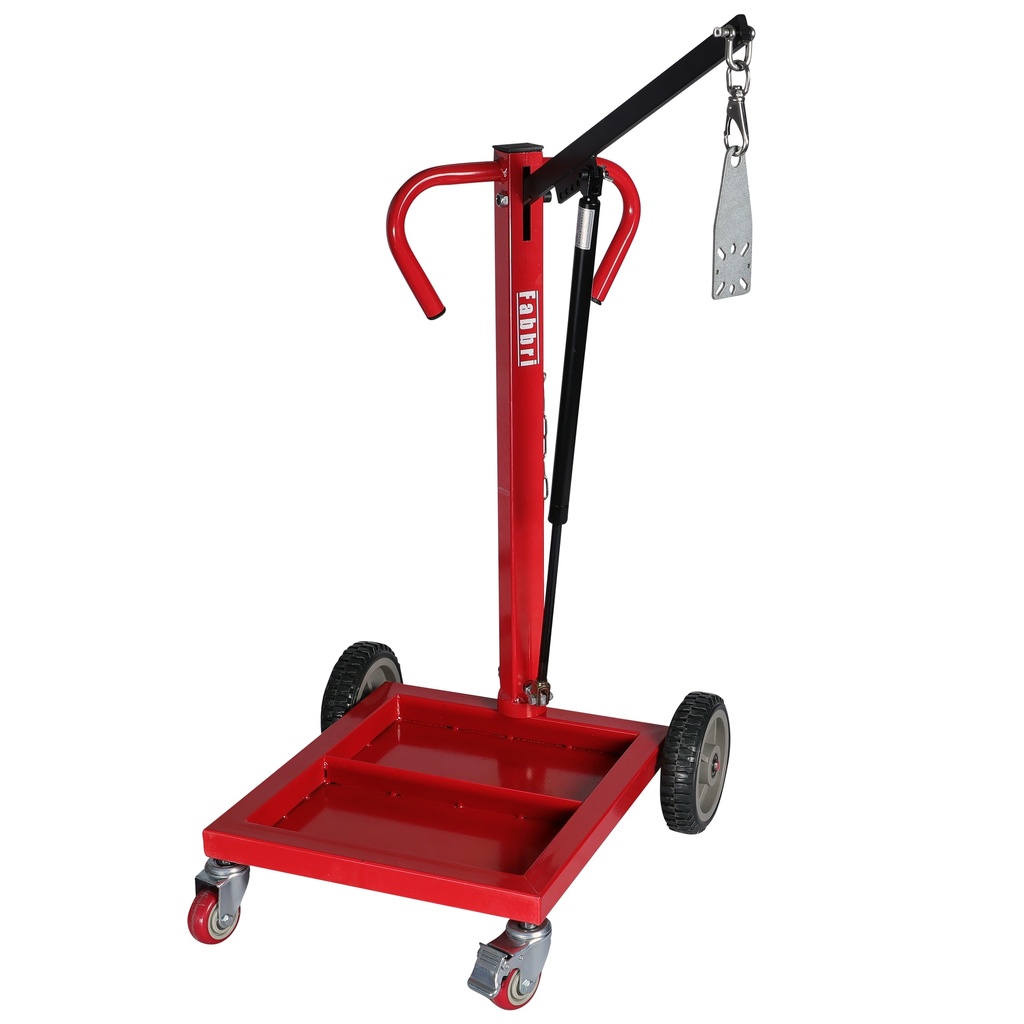

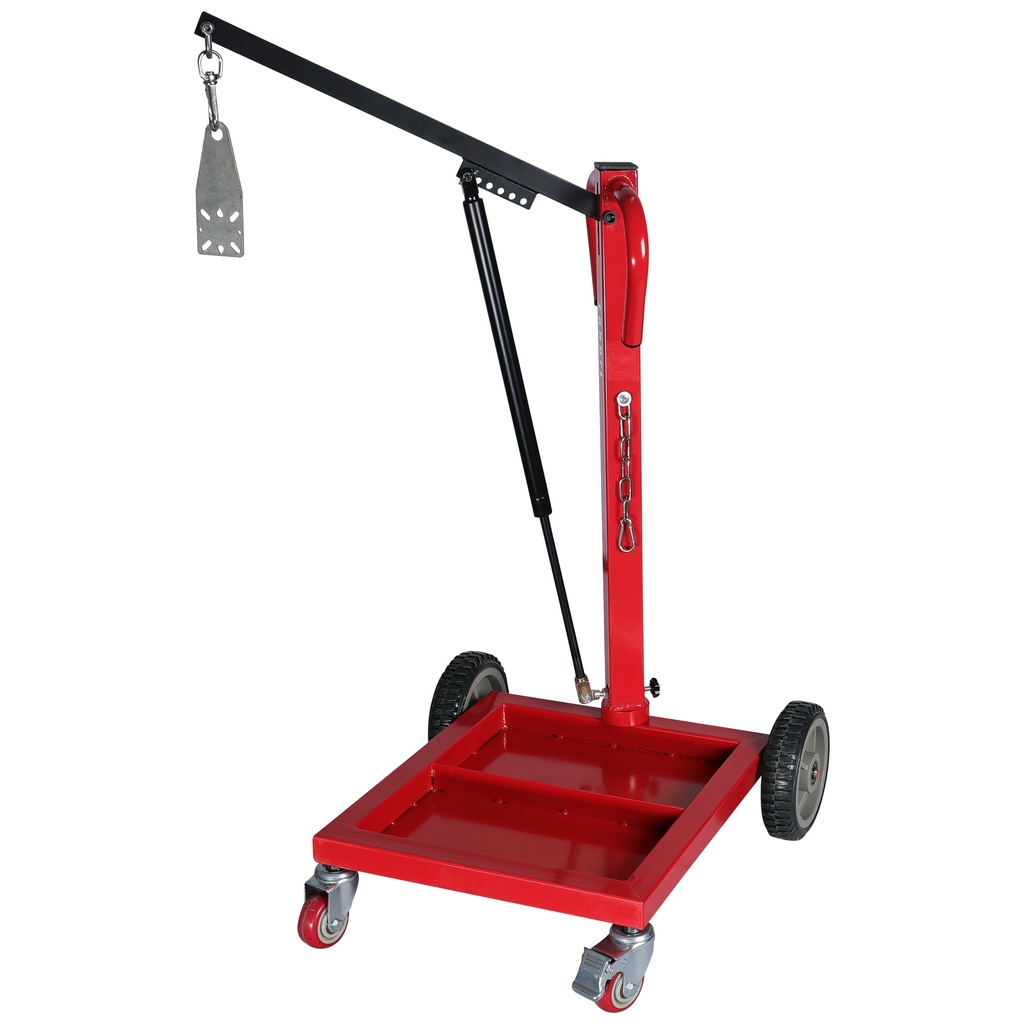

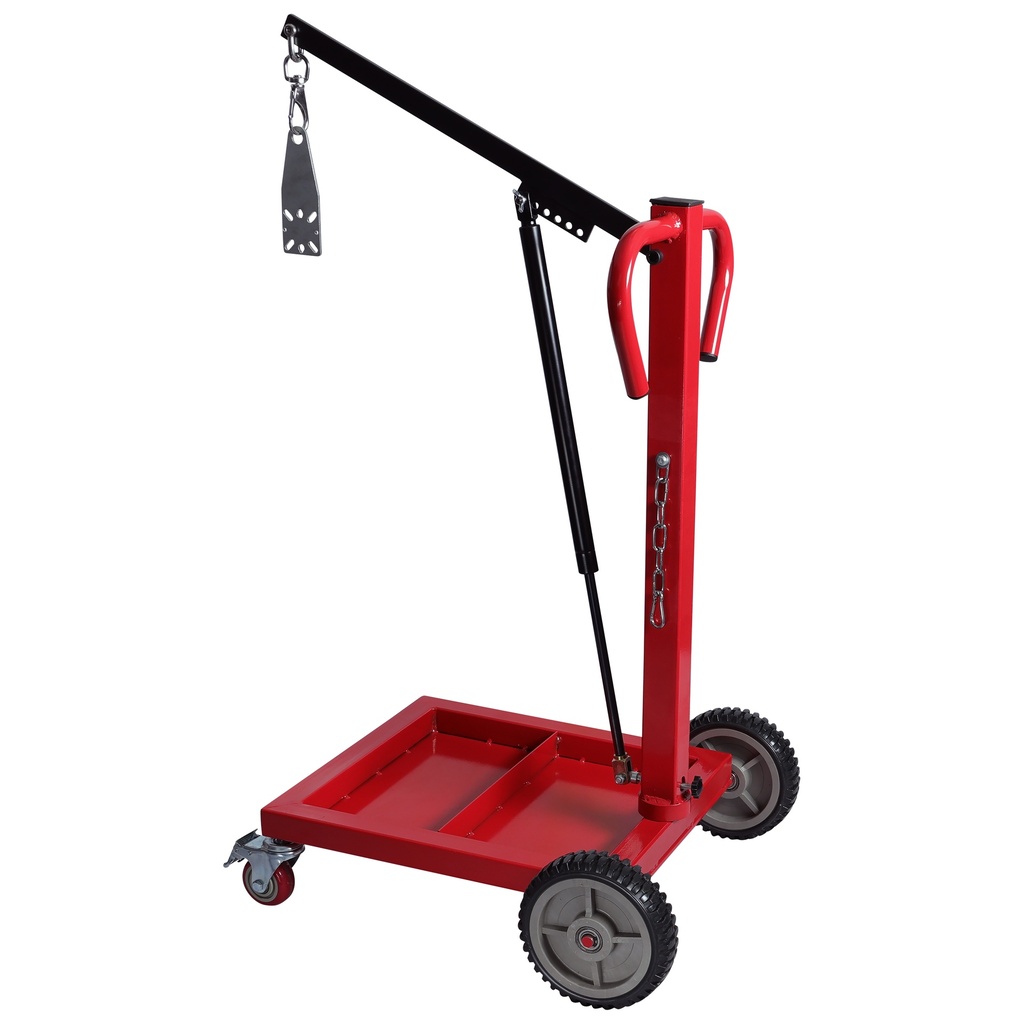

The Fabbri mobile impact wrench holder is designed for safe, ergonomic and efficient use of heavy pneumatic impact wrenches in the workshop. By supporting most of the impact wrench weight, it reduces physical strain during installation and removal work on truck wheels.
The mobile frame makes the holder flexible for use at vehicle lifts, tire change areas and general assembly work. One braked wheel helps keep the holder in position during use. Storage compartments in the base keep sockets, nuts and accessories within reach. The upper arm is swiveling and supports the movement of the impact wrench, making it easier to work in multiple directions.
With the included adapter plate, the holder is suitable for most common pneumatic impact wrenches and is equipped with a stainless steel hook, ideal in combination with the Fluxon impact wrench IWC10B30B. The adjustable spring support can be set for tool weights up to a maximum of 23 kg, limiting arm and shoulder strain during prolonged work.
Key features:

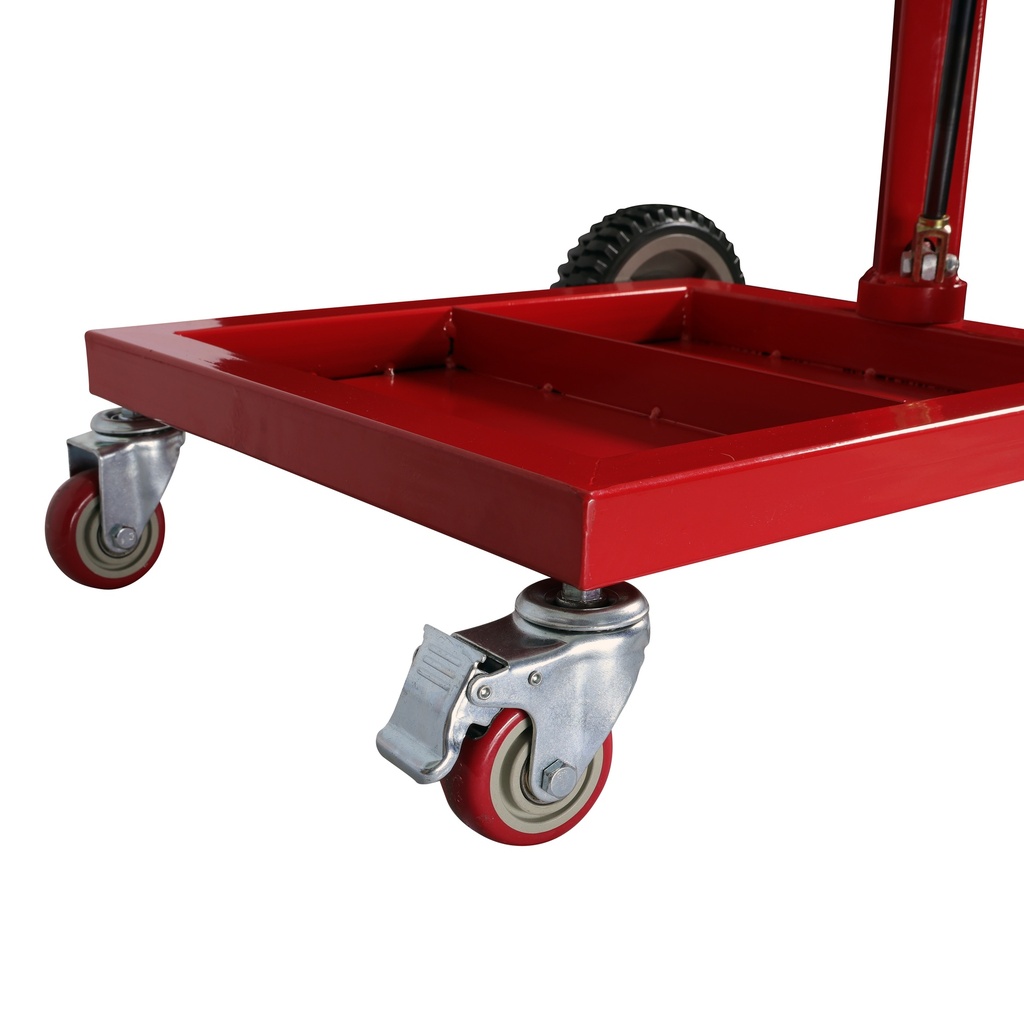

- Braked wheel
Ensures stable positioning during use.
- Storage compartments in the base
Keep sockets, nuts and accessories within reach.
- Included universal adapter plate
Suitable for most common impact wrenches.
- Adjustable spring support up to 23 kg
Supports the weight and reduces physical strain.
- 60° swiveling upper arm
Supports impact wrench movement up/down and left/right.
Specifications
| Load capacity max. | 23 kg |
| Gas spring force | 600 N |
| Swing range | 60° left / 60° right |
| Number of wheels | 4 |
| Wheel diameter | 195 mm |
| Casters size | 70 x 30 mm |
| Material | Steel |
| Product Dimensions: | |
|---|---|
| Product Length | 600 mm |
| Product Width | 570 mm |
| Product Height | 1,300 mm |
| Product Weight | 21.0 Kg |
| Package Dimensions: | |
| Package Length | 800 mm |
| Package Width | 580 mm |
| Package Height | 220 mm |
| Package Weight | 23.00 Kg |
