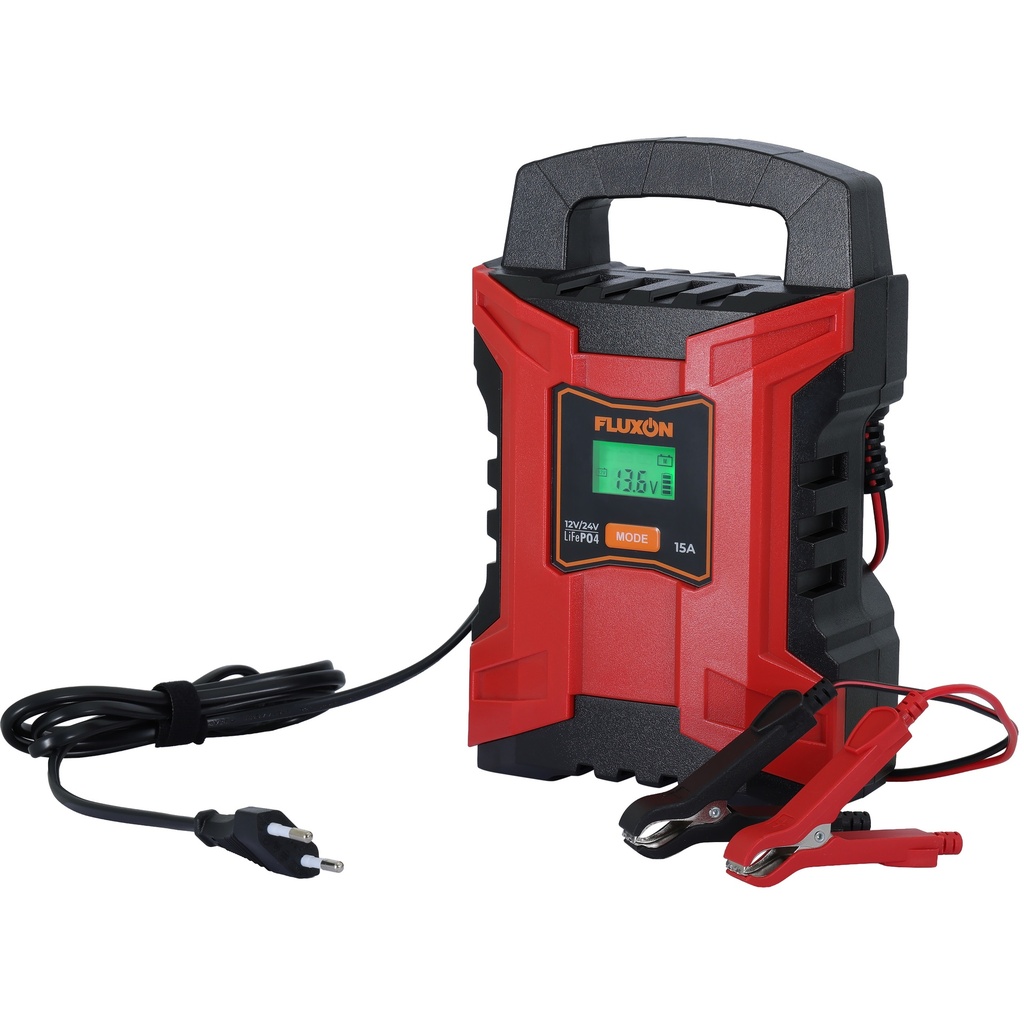

The Fluxon automatic battery charger with trickle charging function is suitable for 12V and 24V batteries and supports STD, AGM and LiFePO4 batteries. This battery charger can therefore be used with several commonly used battery types.
Charging takes place through a 6-stage automatic charging process. This includes battery analysis, a recovery phase, constant current charging, constant voltage charging, compensation charging and a final trickle charge. This ensures the battery is charged in stages and kept at voltage after charging through the trickle charging function.
During charging the battery charger is protected against reverse polarity, short circuit and overcharging. This protects both the battery and the charging system during use.
Key features:
- 6-stage automatic charging process
Automatically goes through multiple charging stages.
- Suitable for 12V and 24V batteries
For use with both 12V and 24V batteries.
- Supports STD, AGM and LiFePO4 batteries
One battery charger for three common battery types.
- Maintenance / trickle charging
Also functions as a trickle charger after charging.
- Protected charging process
Protection against reverse polarity, short circuit and overcharging.
Specifications
| Tension de charge | 12V / 24V |
| Supported battery types | STD / AGM / LiFePO4 (LFP) |
| Charging program | 6-step fully automatic |
| Charging current | 15A (12V) / 8A (24V) |
| Battery capacity | 4 - 300 Ah |
| Maintenance current | 2A |
| Power supply | 230V |
| Power | 300 W |
| IP protection rating | IP20 |
| Operating temperature | -20°C ~40°C |
| Cable length | 1.5 m |
| Product Dimensions: | |
|---|---|
| Product Length | 240 mm |
| Product Width | 160 mm |
| Product Height | 100 mm |
| Product Weight | 1.036 Kg |
| Package Dimensions: | |
| Package Length | 300 mm |
| Package Width | 205 mm |
| Package Height | 110 mm |
| Package Weight | 1.18 Kg |
