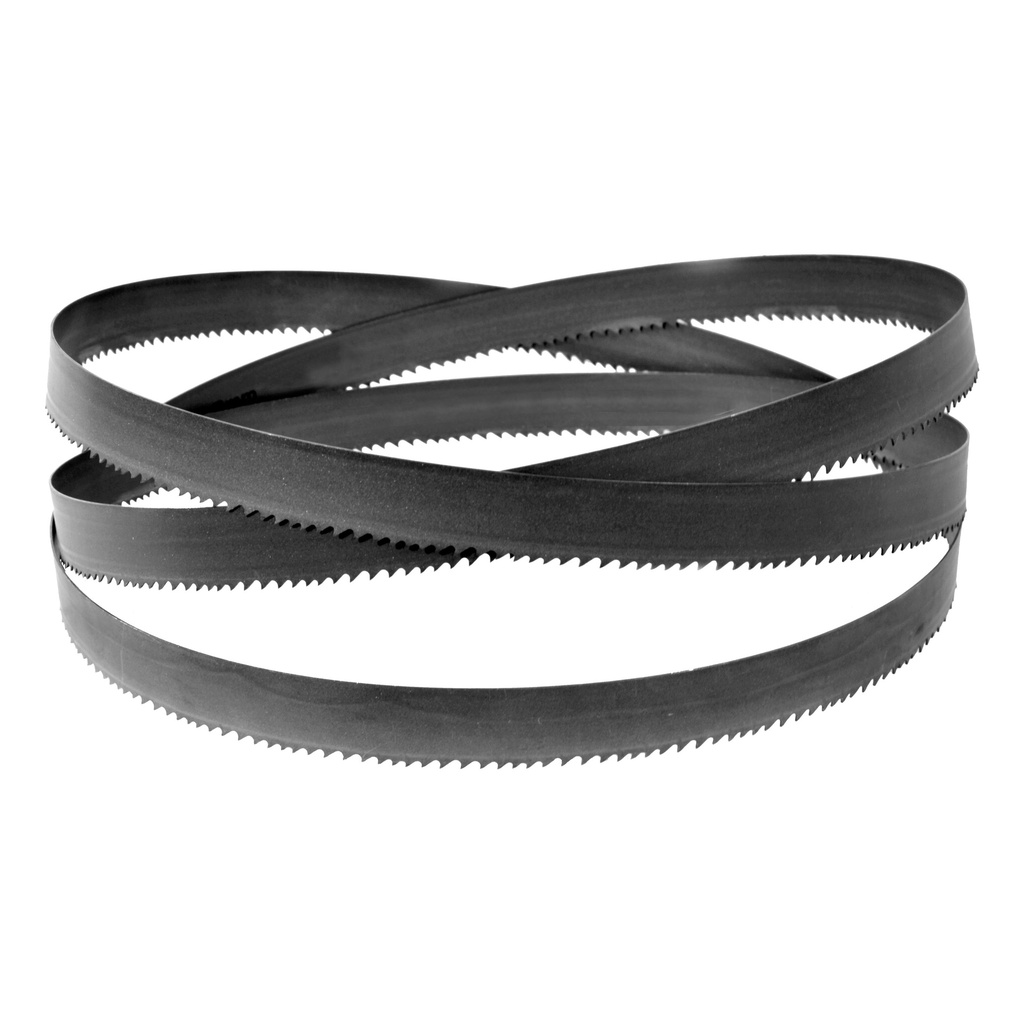

This bimetallic band saw consists of an alloyed refined steel strip on which a strip of high-alloy HSS cobalt-molybdenum steel is welded by using electrodes.
In here, the teeth are machined, after which the saw is hardened to 67 - 69 HRC.
The band saw is used in ferrous and non-ferrous materials, each bimetal quality has its own specific application.
M42 bimetal band saw:
Due to the high hardness of the edges, 67 - 69 HRC, longer service life can be achieved and higher cutting speeds can be used. Among others used for stainless steel and materials with a tensile strength up to 1400 N /mm².
- width x thickness = 27 x 0,9mm
- 5/8 M42
|Product Length||260 mm|
|Product Width||260 mm|
|Product Height||40 mm|
|Product Weight||0.49 Kg|
|Package Length||380 mm|
|Package Width||360 mm|
|Package Height||55 mm|
|Package Weight||0.67 Kg|
