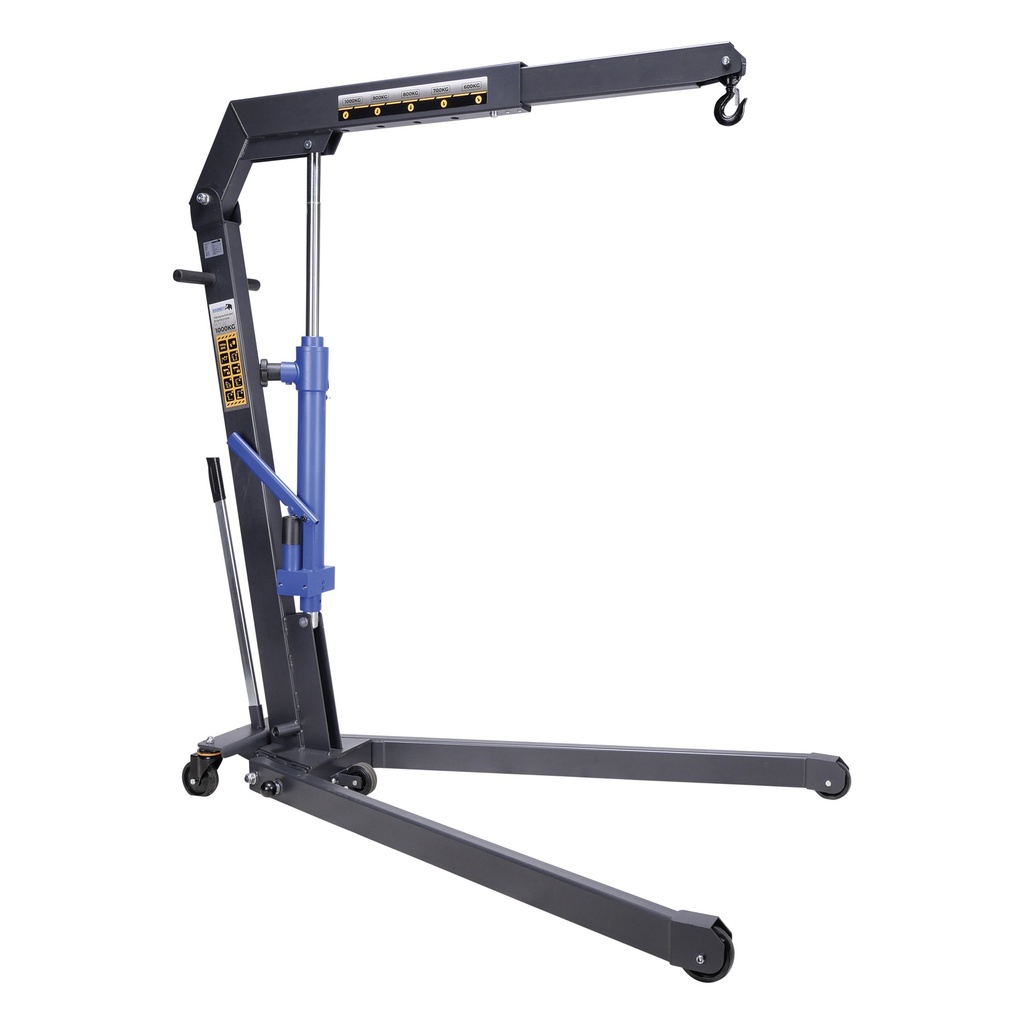

This Mammuth engine crane is a reliable choice for lifting and moving loads up to 1 ton. Ideal for workshops and garages, this crane offers the power and reliability you need. Furthermore, it is foldable, taking up minimal space for storage or transport.
- Low base: With a height of just 105mm, ideal for applications with limited clearance.
- Glass-reinforced nylon wheels: Wear-resistant, better load-bearing, and resistant to oil, grease, acids, and other chemicals.
- Controlled lowering speed: Ensures smooth and safe lowering of the load.
- Quick lift system with rotating cylinder: The dual hydraulic pump speeds up lifting with fewer strokes, while the rotating cylinder offers extra flexibility.
- 5 positions with automatic locking: Quickly and safely select the right position for every task.
Position 1 (600Kg)
Minimum height: 305mm
Maximum height: 2300mm
Arm length: 1350mm
Position 2 (700Kg)
Minimum height: 395mm
Maximum height: 2250mm
Arm length: 1260mm
Position 3 (800Kg)
Minimum height: 485mm
Maximum height: 2190mm
Arm length: 1160mm
Position 4 (900Kg)
Minimum height: 575mm
Maximum height: 2140mm
Arm length: 1060mm
Position 5 (1000Kg)
Minimum height: 665mm
Maximum height: 2080mm
Arm length: 960mm
Specifications
| Material | Steel |
| Lifting capacity | 1000 kg |
| Length folded | 680 mm |
| Width folded | 390 mm |
| Height folded | 1550 mm |
| Base height | 105 mm |
| Wheel material | Fibreglass-reinforced nylon |
| Wheel diameter | ø92 mm |
| Oil capacity | 0.75 L |
| Oil type | OKCH68 |
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Product Dimensions: | |
|---|---|
| Product Length | 1,375 mm |
| Product Width | 970 mm |
| Product Height | 1,550 mm |
| Product Weight | 92.7 Kg |
| Package Dimensions: | |
| Package Length | 380 mm |
| Package Width | 1,590 mm |
| Package Height | 245 mm |
| Package Weight | 97.00 Kg |
